    A friend of mine has a 2003 Honda Element with stock H4 halogen lights. The car was imported to Norway in 2006 and has had one owner until my friend bought it two years ago. In the meantime, the previous owner has hit something, and as a result the passenger side headlight sits a bit further in than it normally should, and the reflector inside the headlight is broken. There is even a piece of the reflector shuttling around inside.

    I told him that I did a pair of headlights for my brother, and seeing as he needed new headlights anyway, why not do a retrofit and get proper lighting at the same time? He was sold on the idea, so a pair of Vision Lighting replica headlights were purchased off of eBay along with projectors from a member on here, and a lot of shrouds, connectors, bulbs and a relay harness from AliExpress.

    After about two weeks the headlight arrived, and after a further three weeks the rest of the necessary items arrived.

    Tools and hardware used:
    Flathead screwdriver
    Philips screwdriver
    Cordless Dremel with cutting wheel
    Heat gun
    Long nose pliers
    Nail leash for mounting the ballasts
    Bolts, washers and nuts for mounting the ballasts

    HID hardware:
    Morimoto Mini D2S 3.0 Round lens
    "Cayenne" (Apollo 2.0) shrouds
    Philips 85122 bulbs
    Mitsubishi Electric OEM ballasts
    China H4 relay harness (may be swapped for a MotoControl harness at some point)

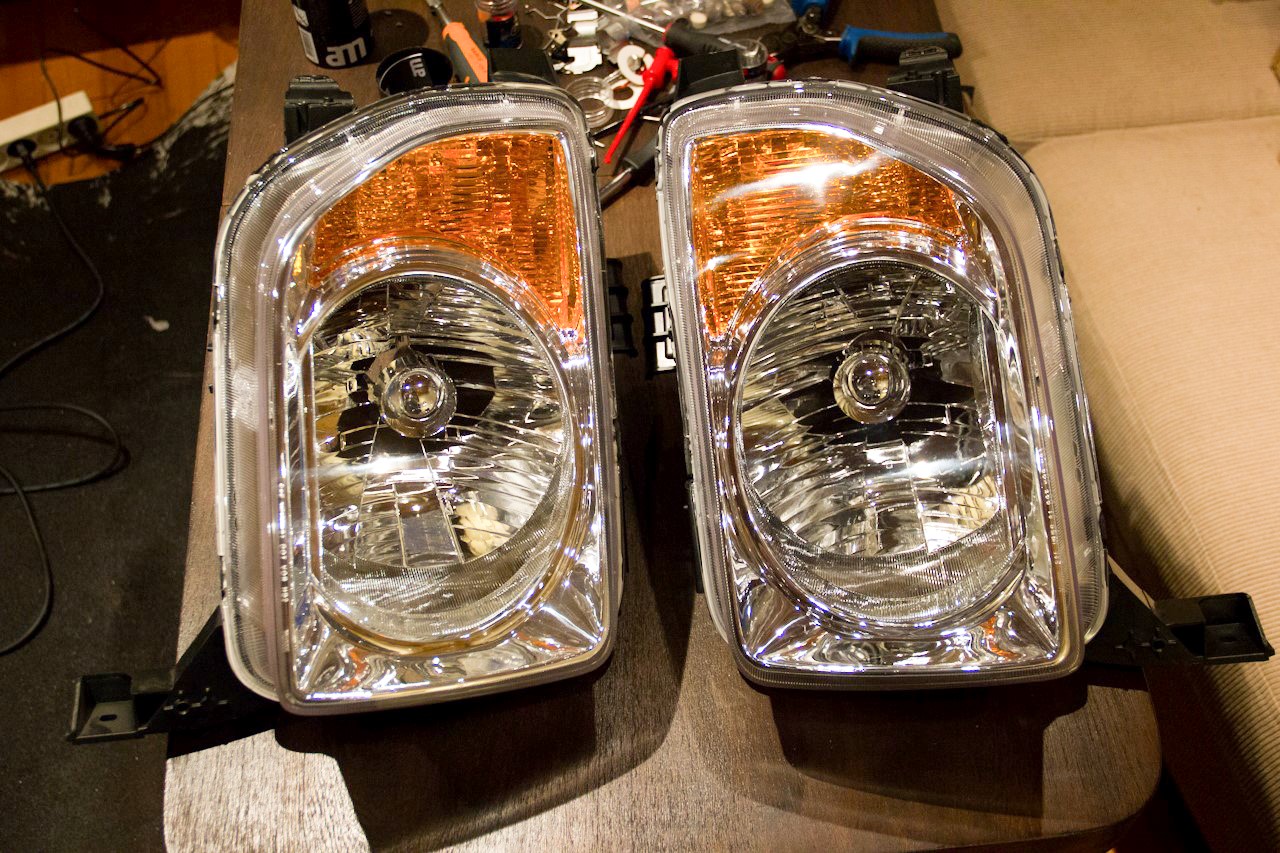

    Headlights in stock condition:



    One opened, glare cap removed:

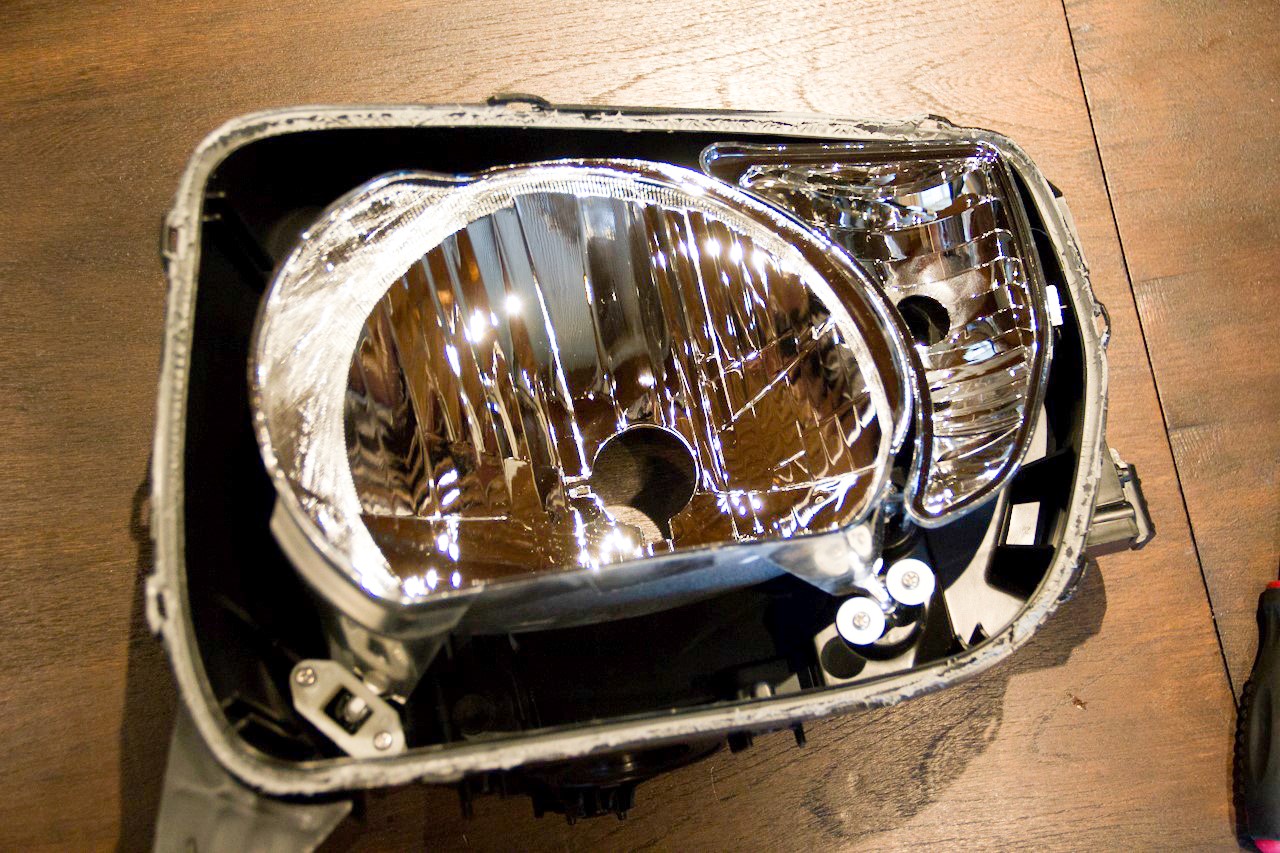

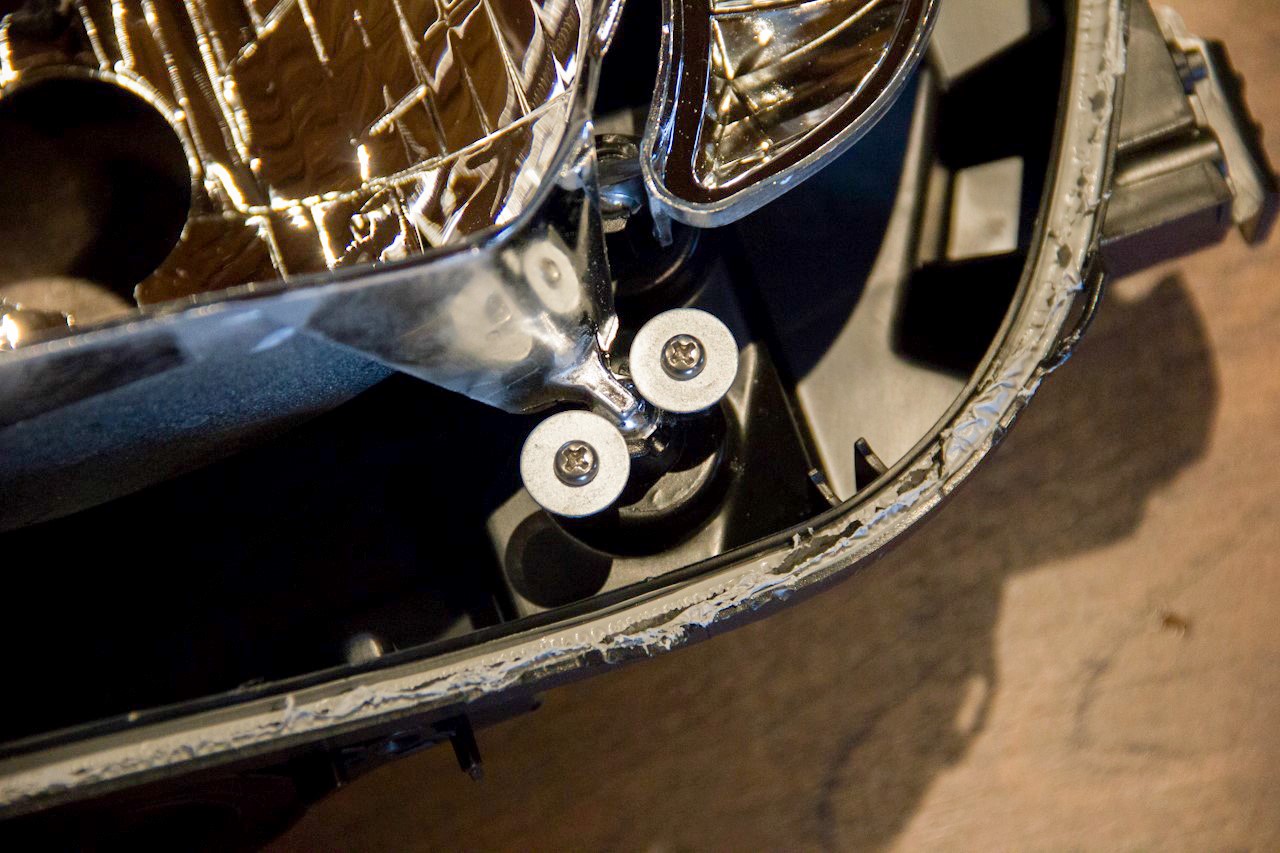

    Bits and pieces that keep the reflector from popping out of its sockets:

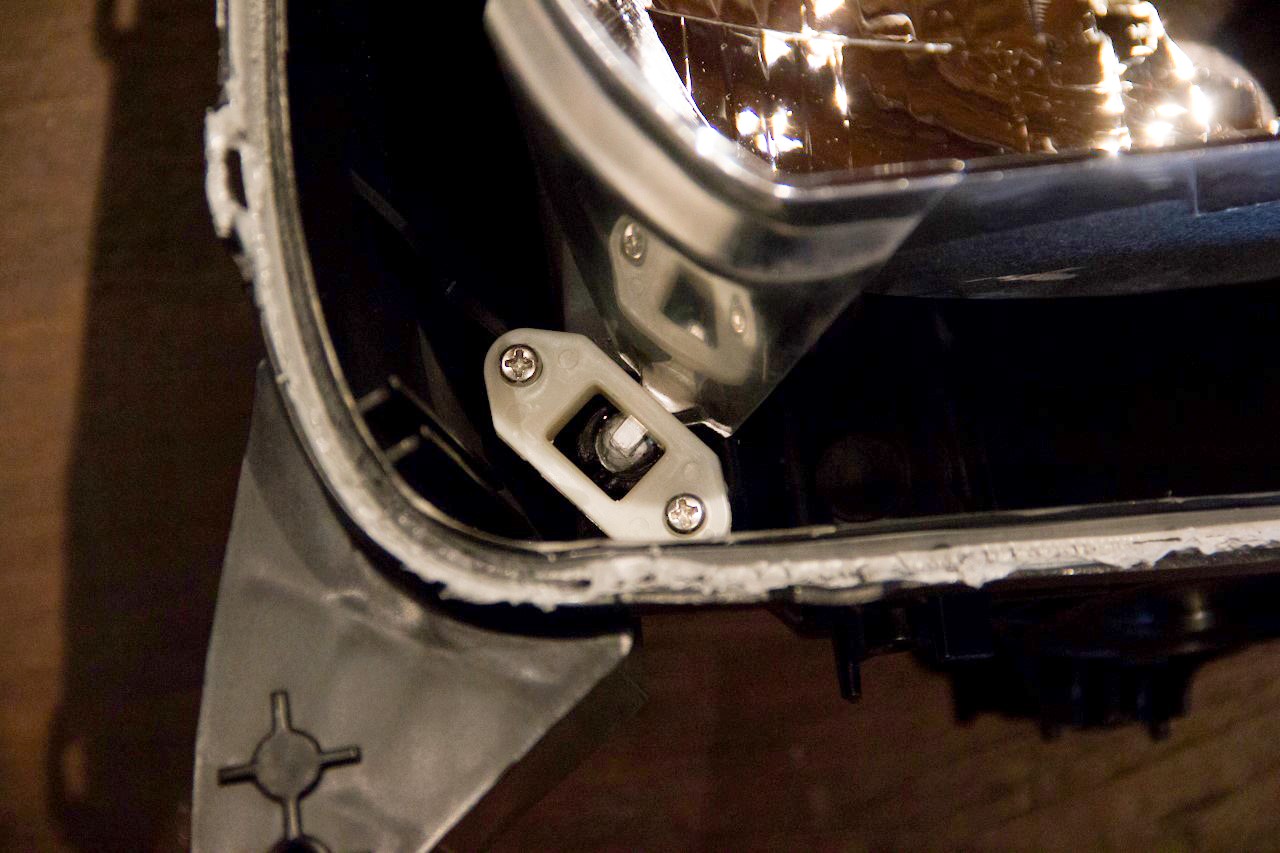

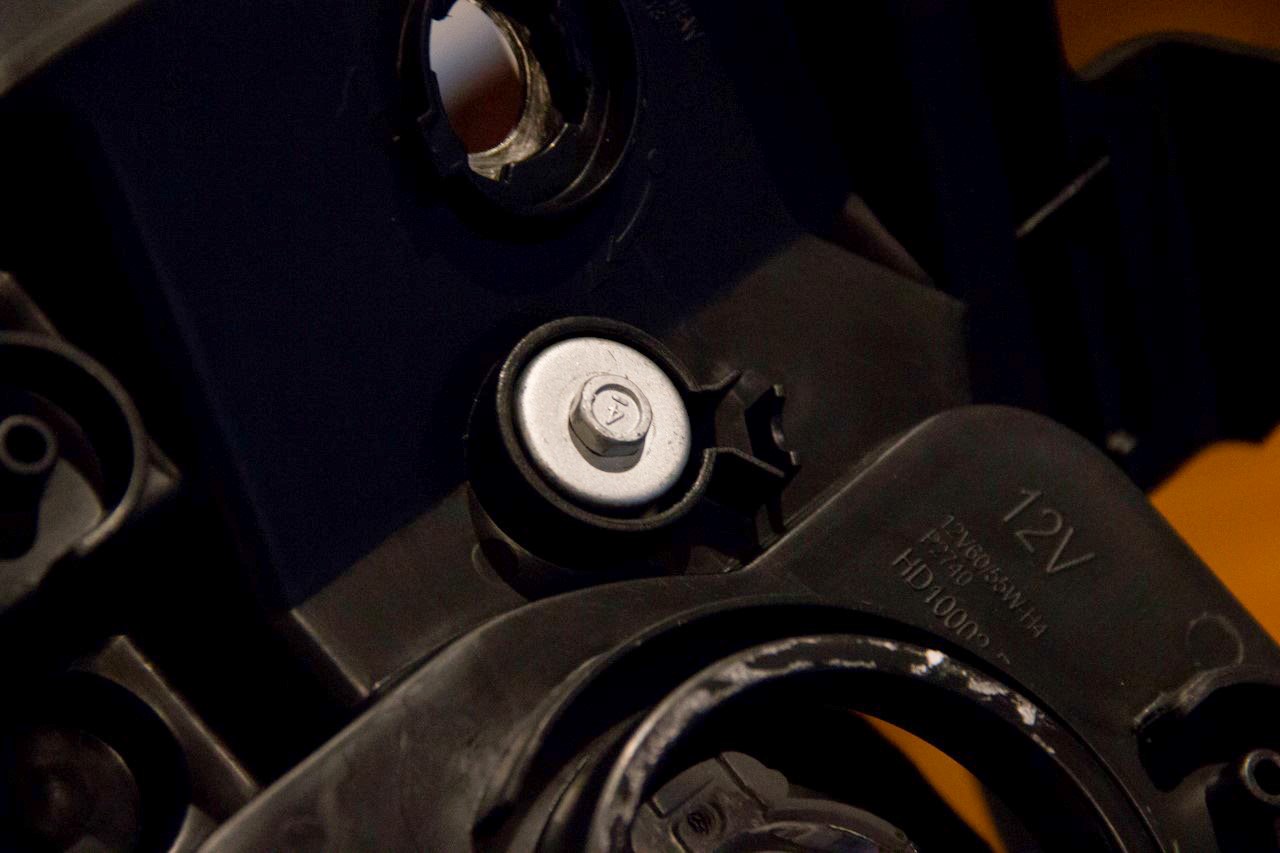

    Only one adjustment screw for up/down adjustment. This also holds the projector in place.

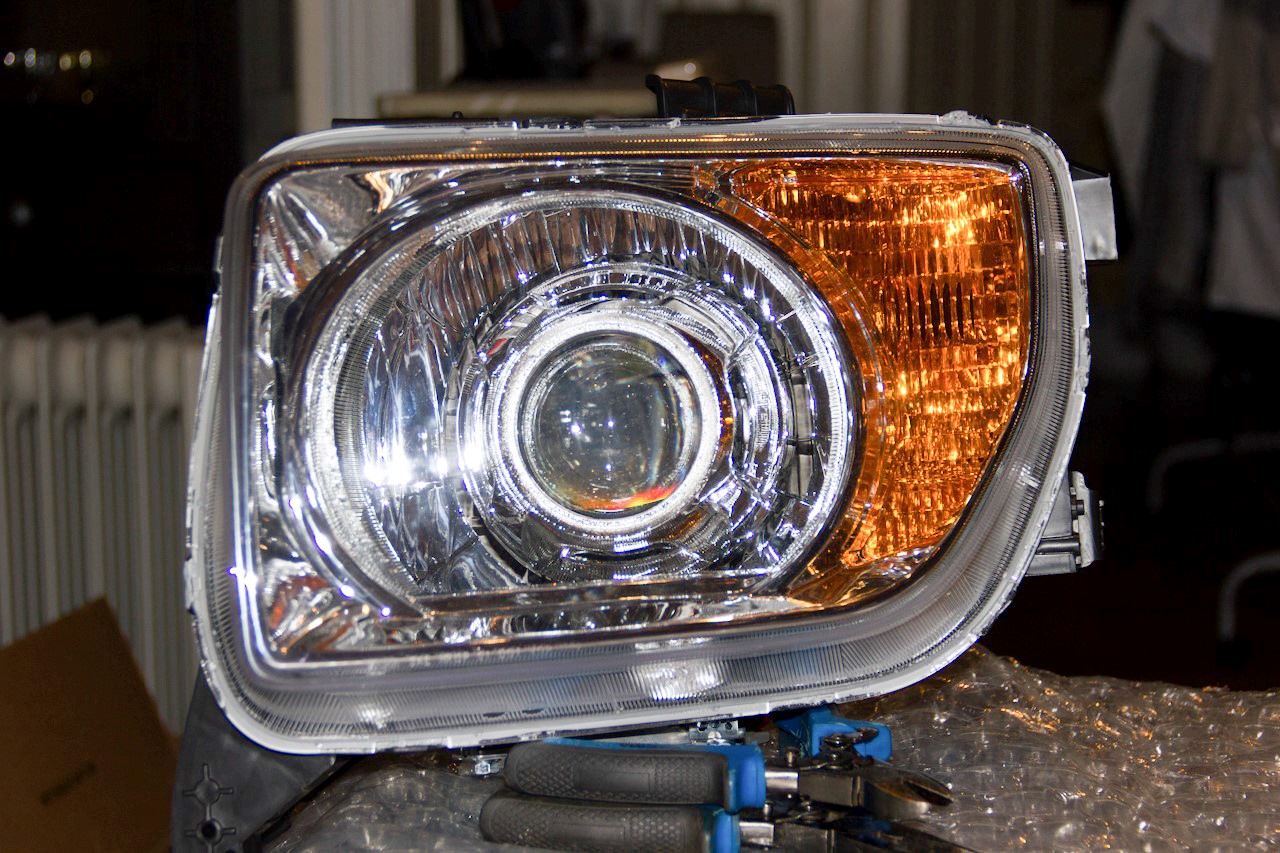

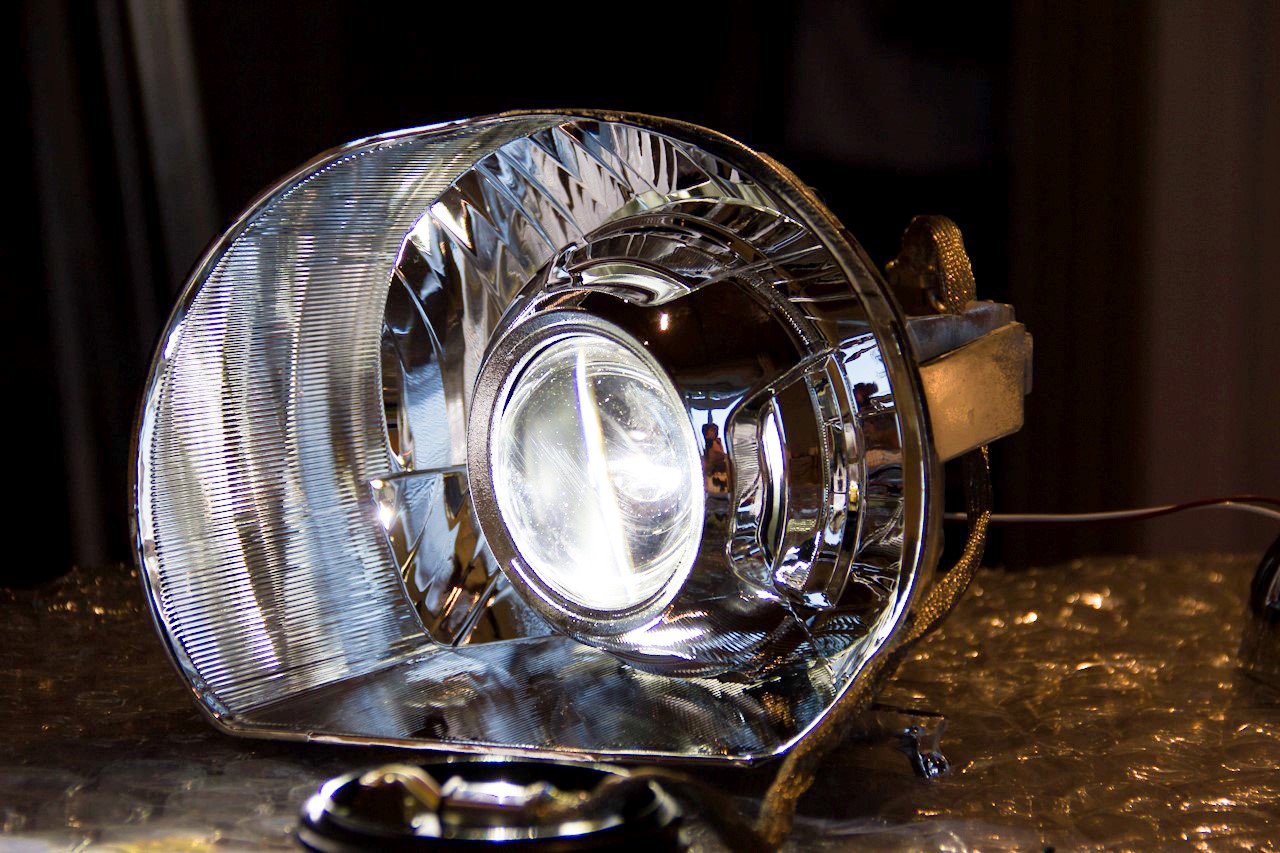

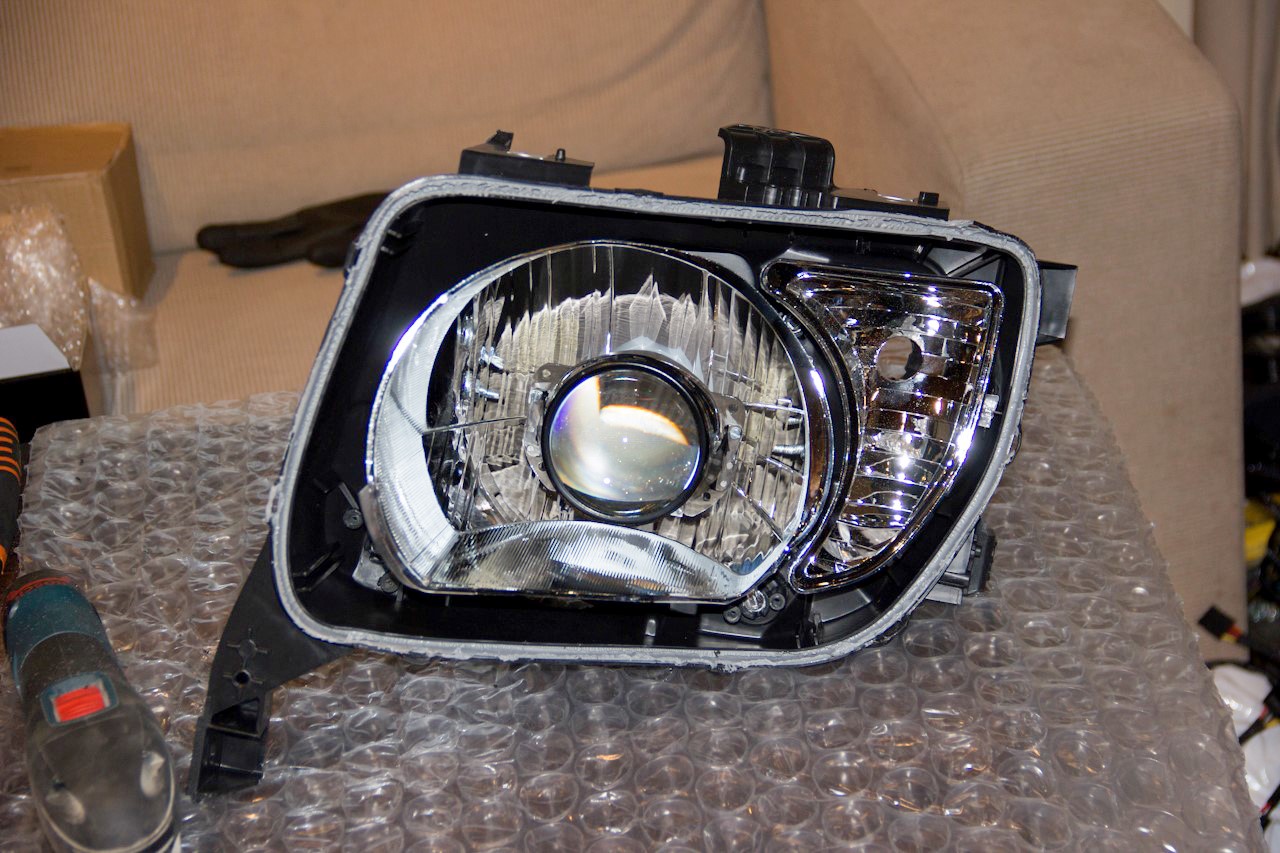

    Test fitted a Mini D2S projector:

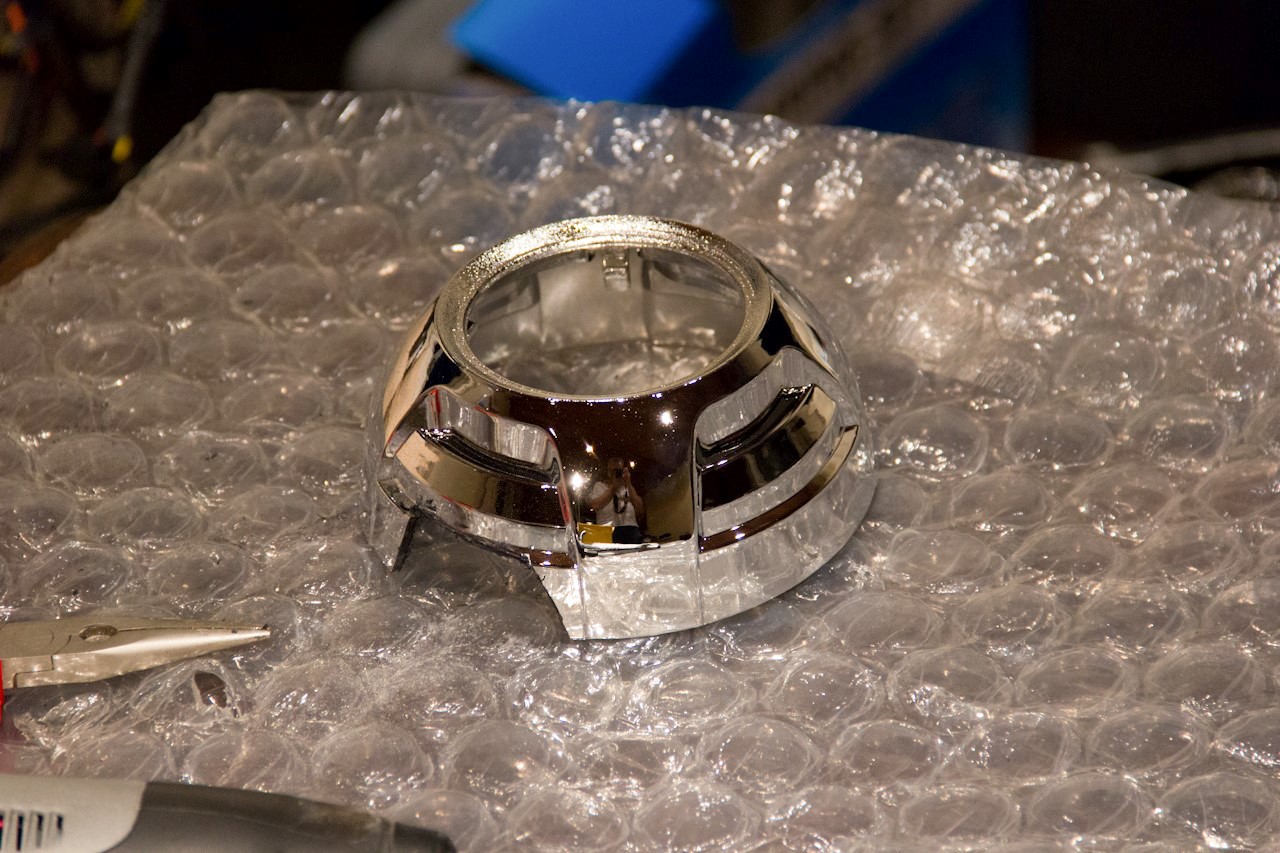

    Test fitted the shroud, prior to trimming. I was originally going to use the E46-R Extended shroud, but that looked too plain and boring in there, so I went with the Cayenne/Apollo 2.0 instead. Looks so much better and OEM, and fills the cavity a lot better as well.

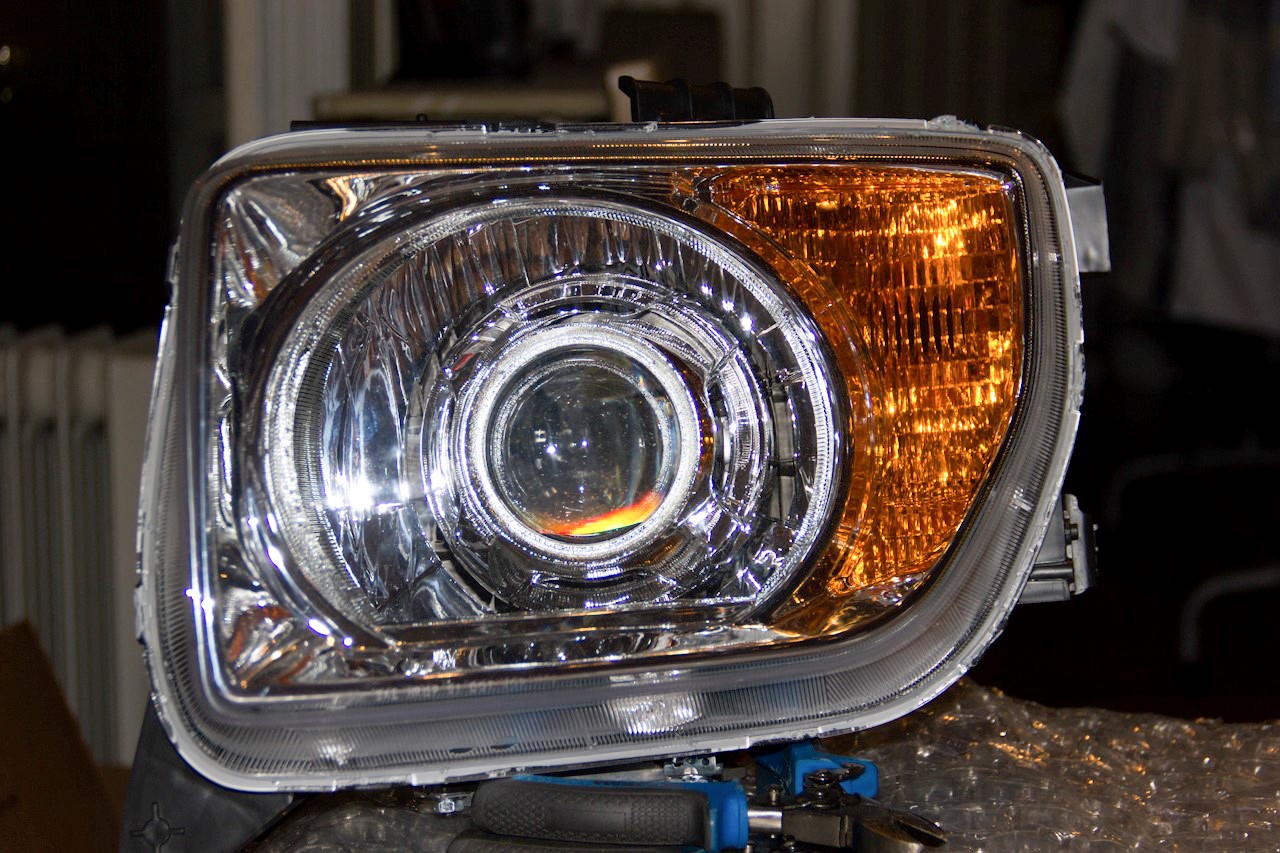

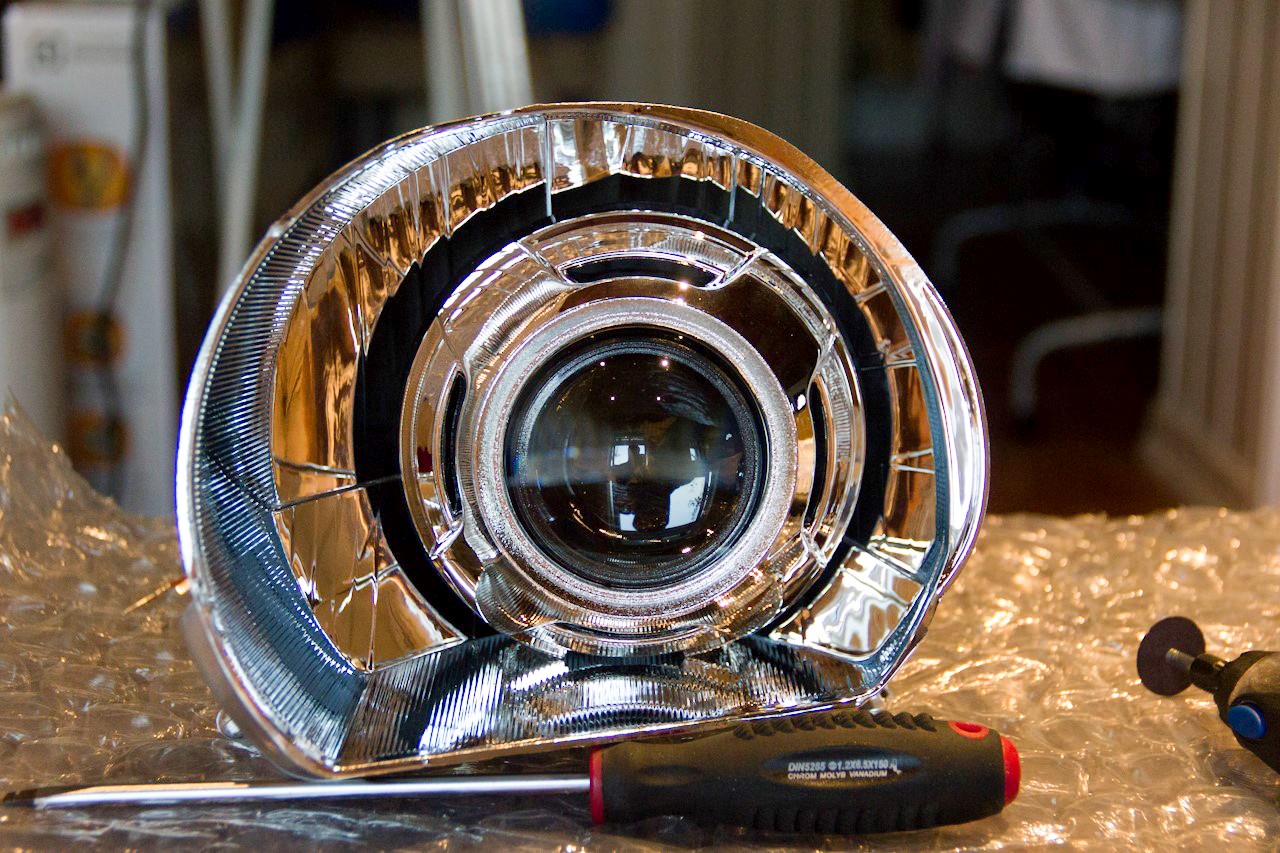

    Shroud trimmed, checking output and rotation:

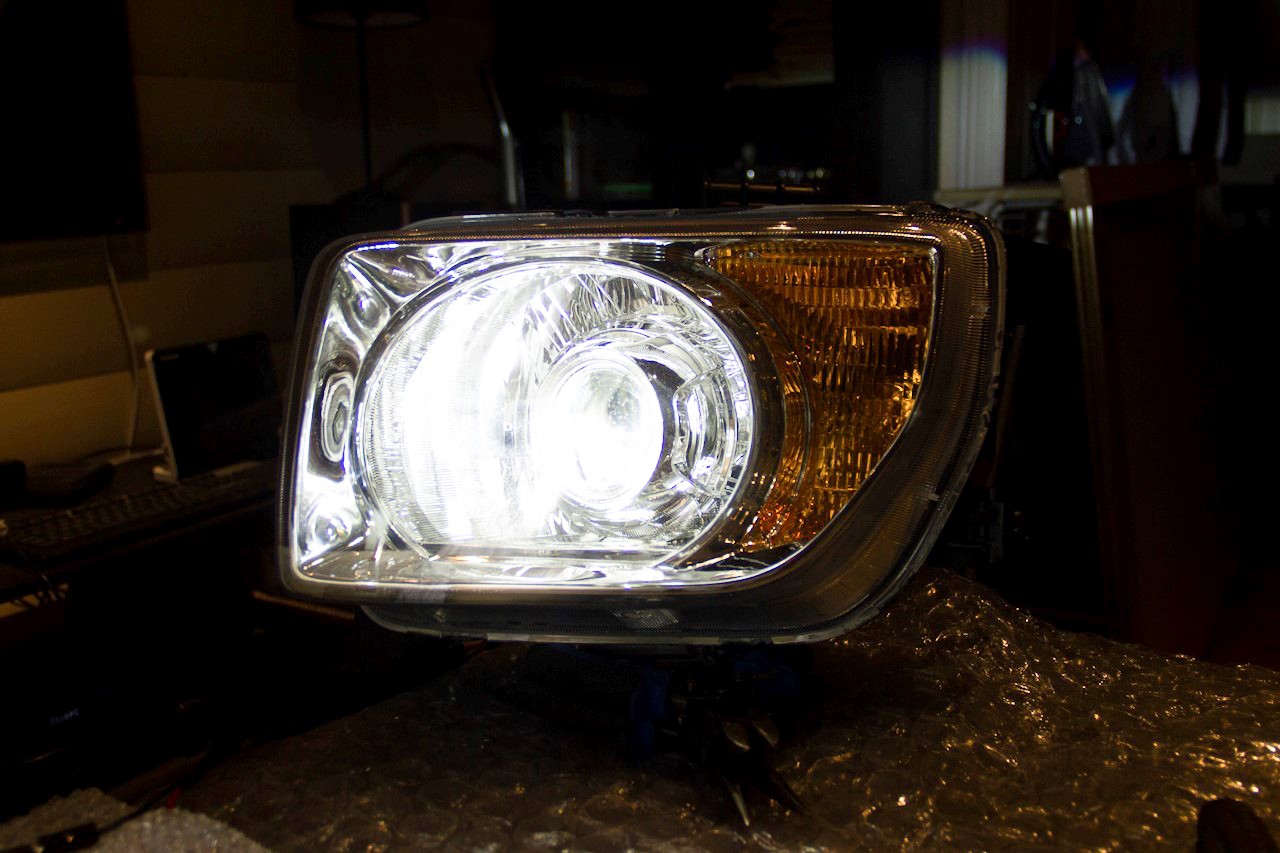

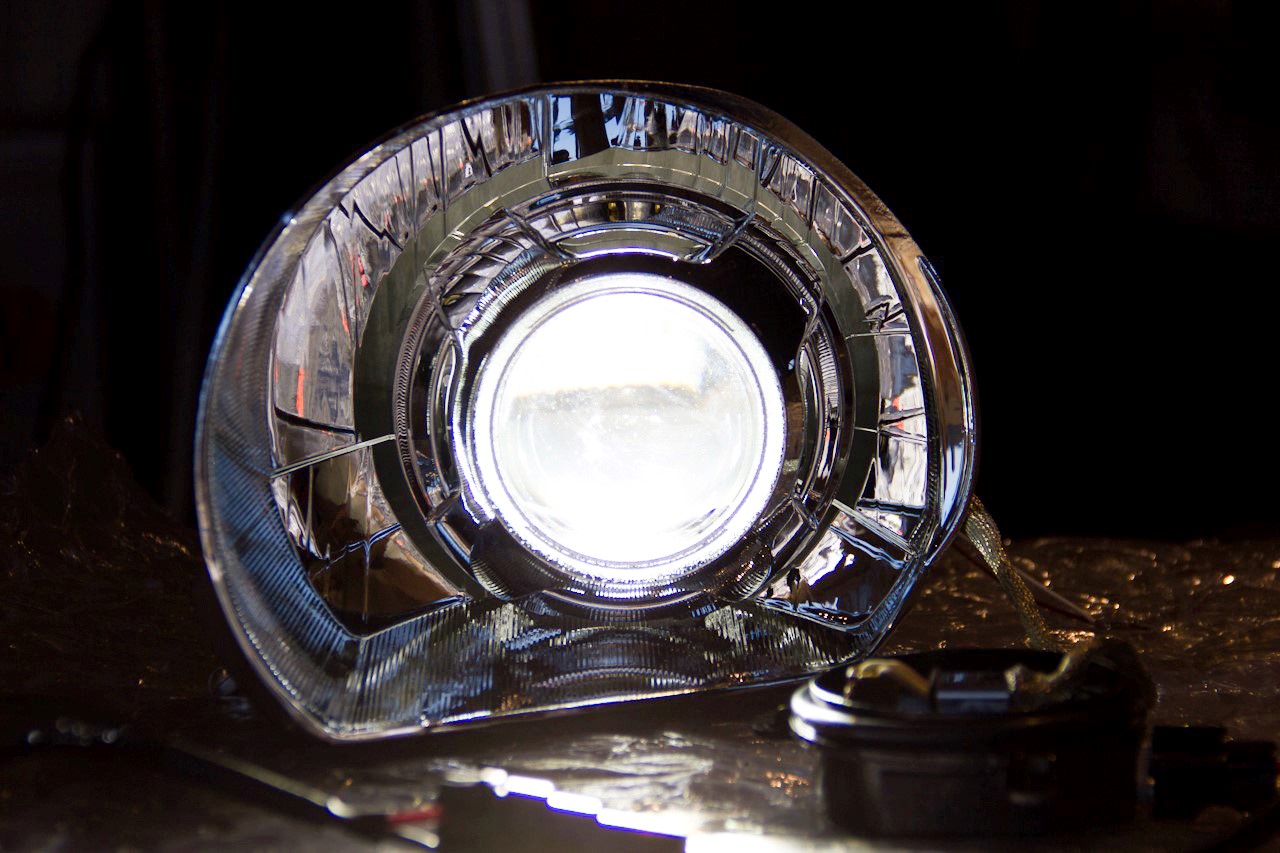

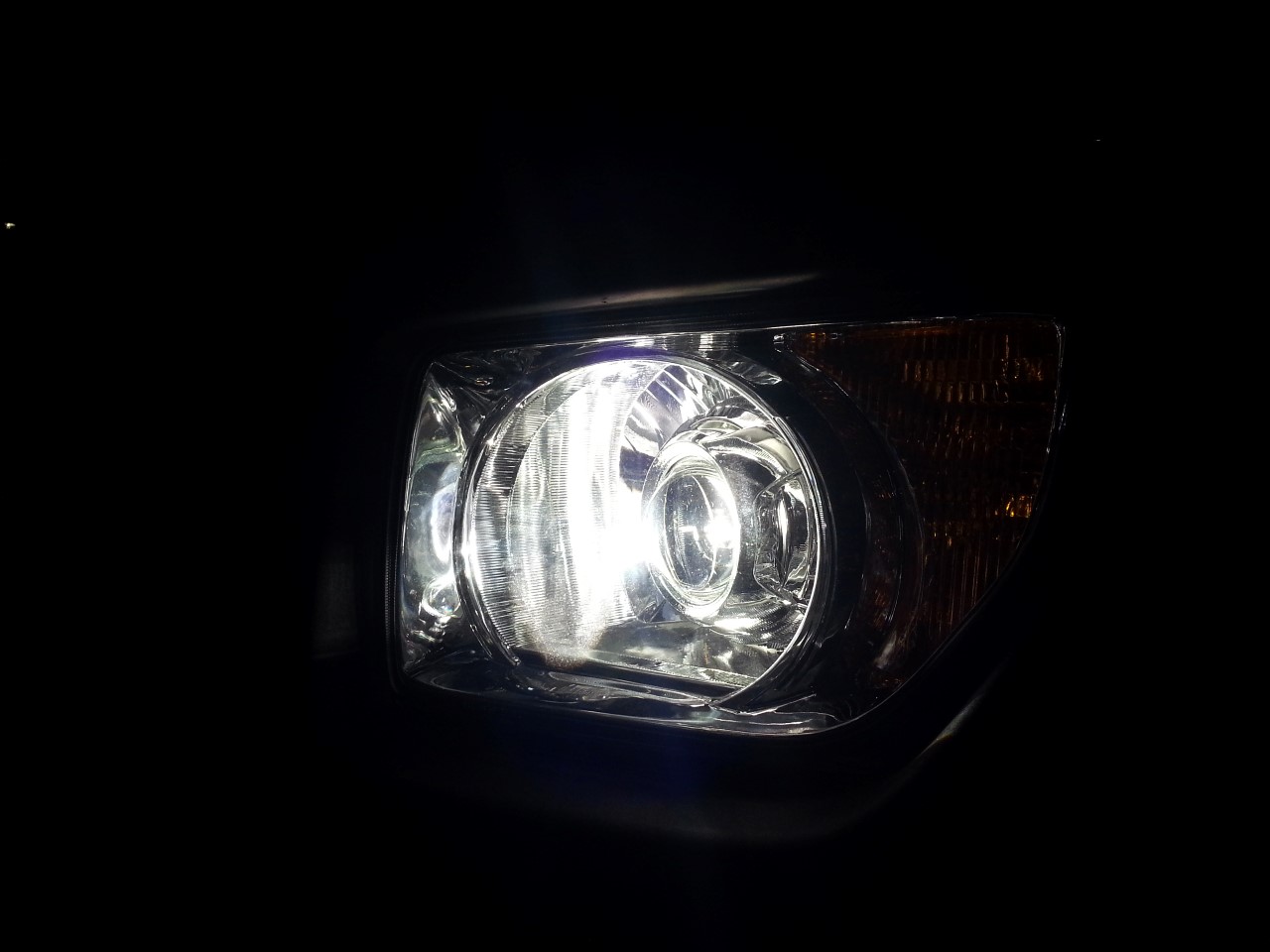

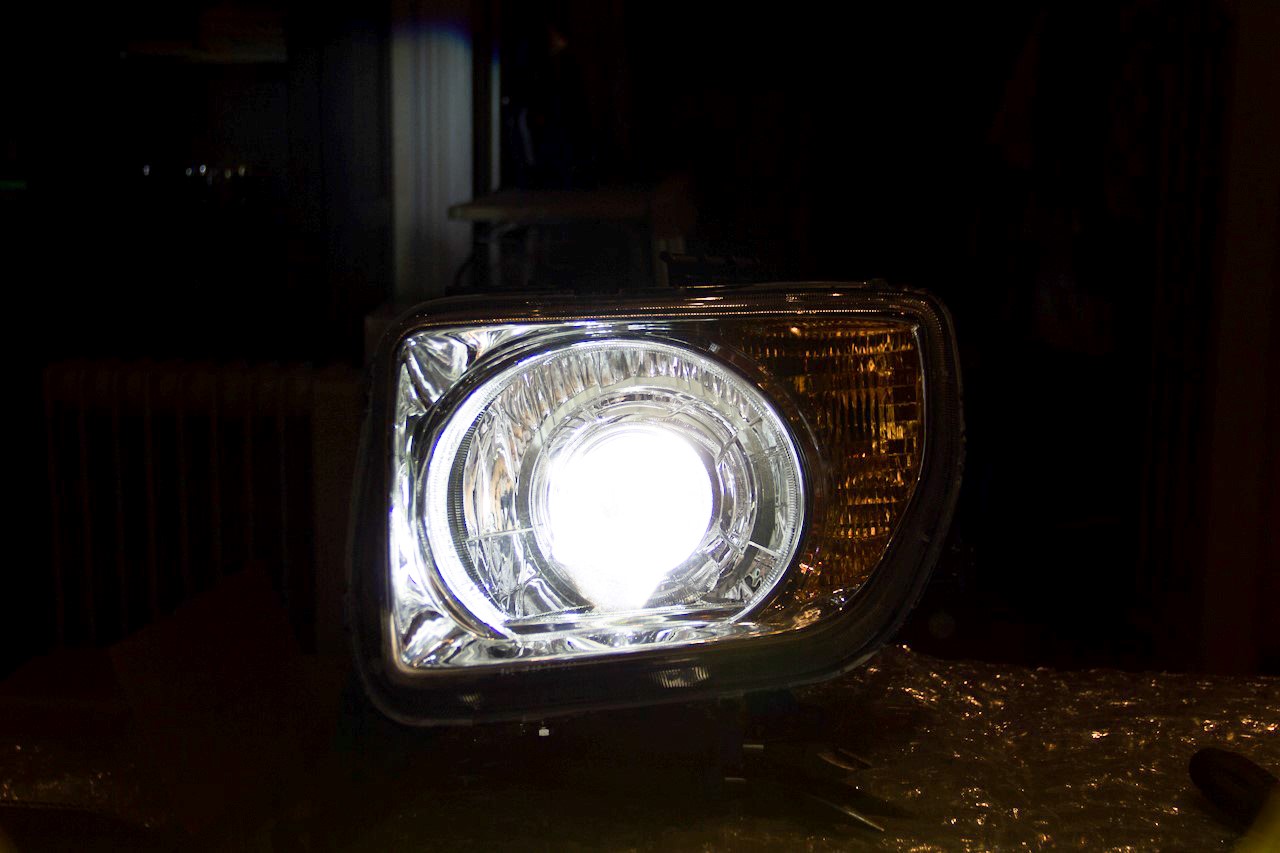

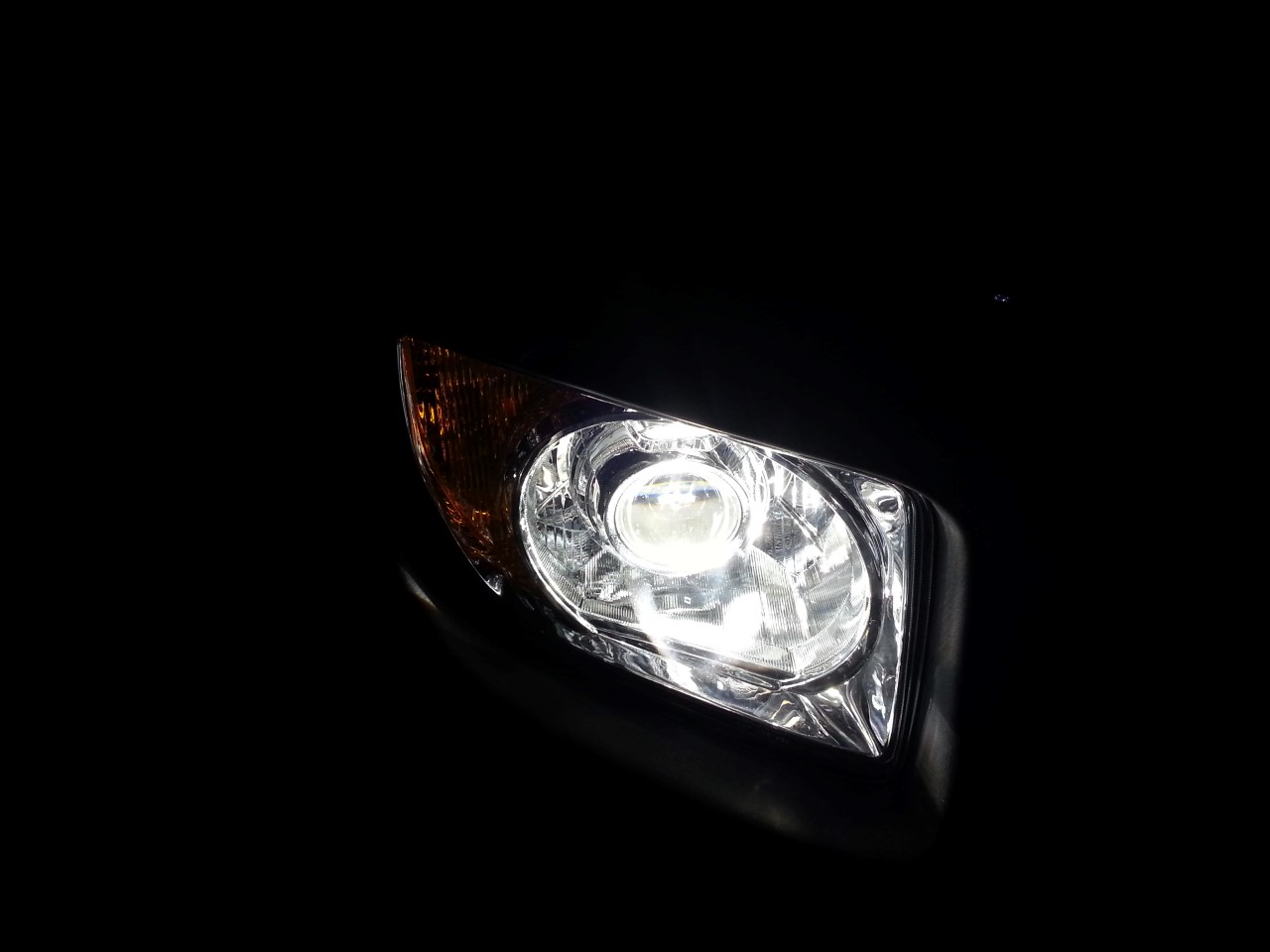

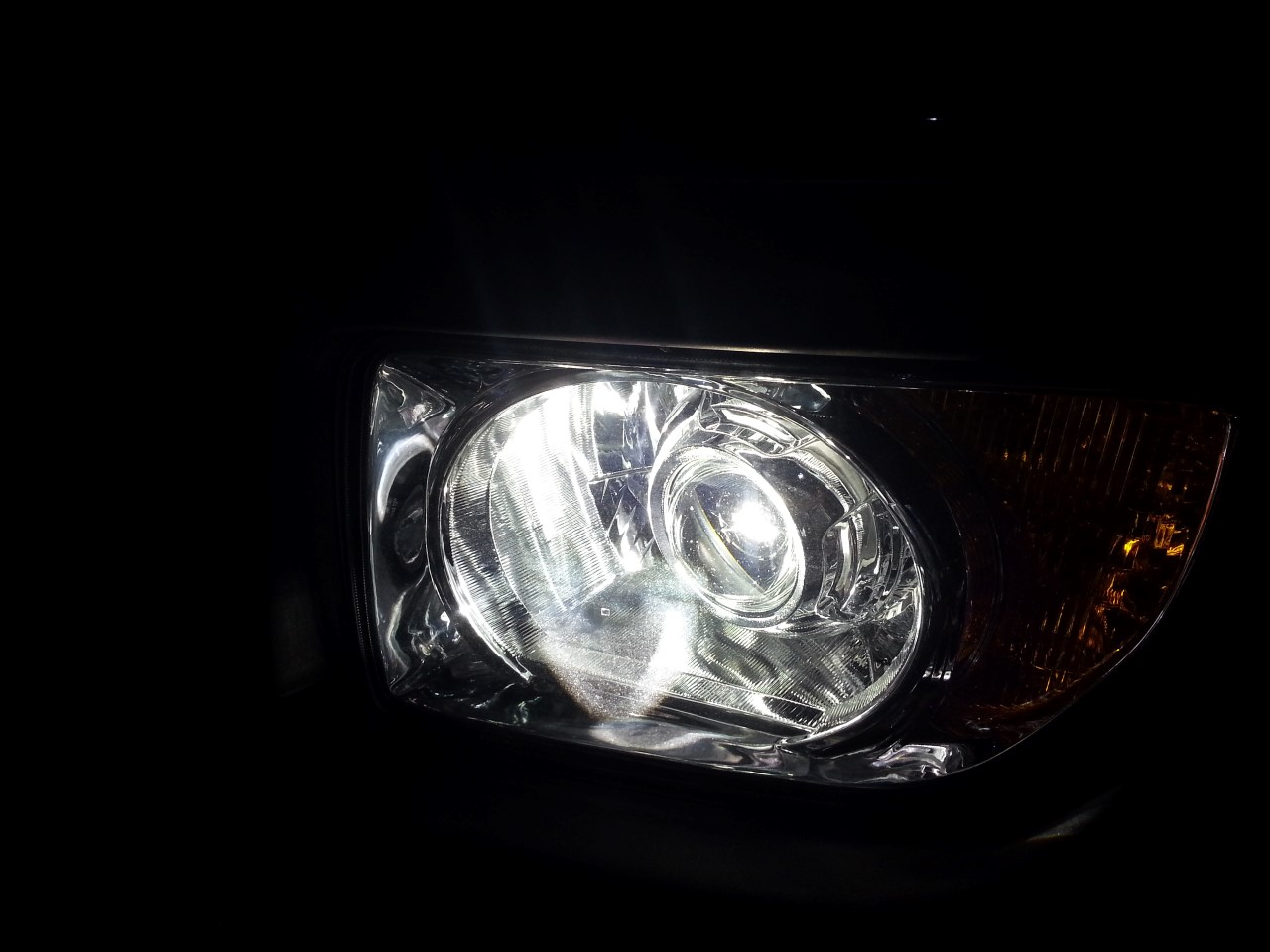

    Lens and light on:

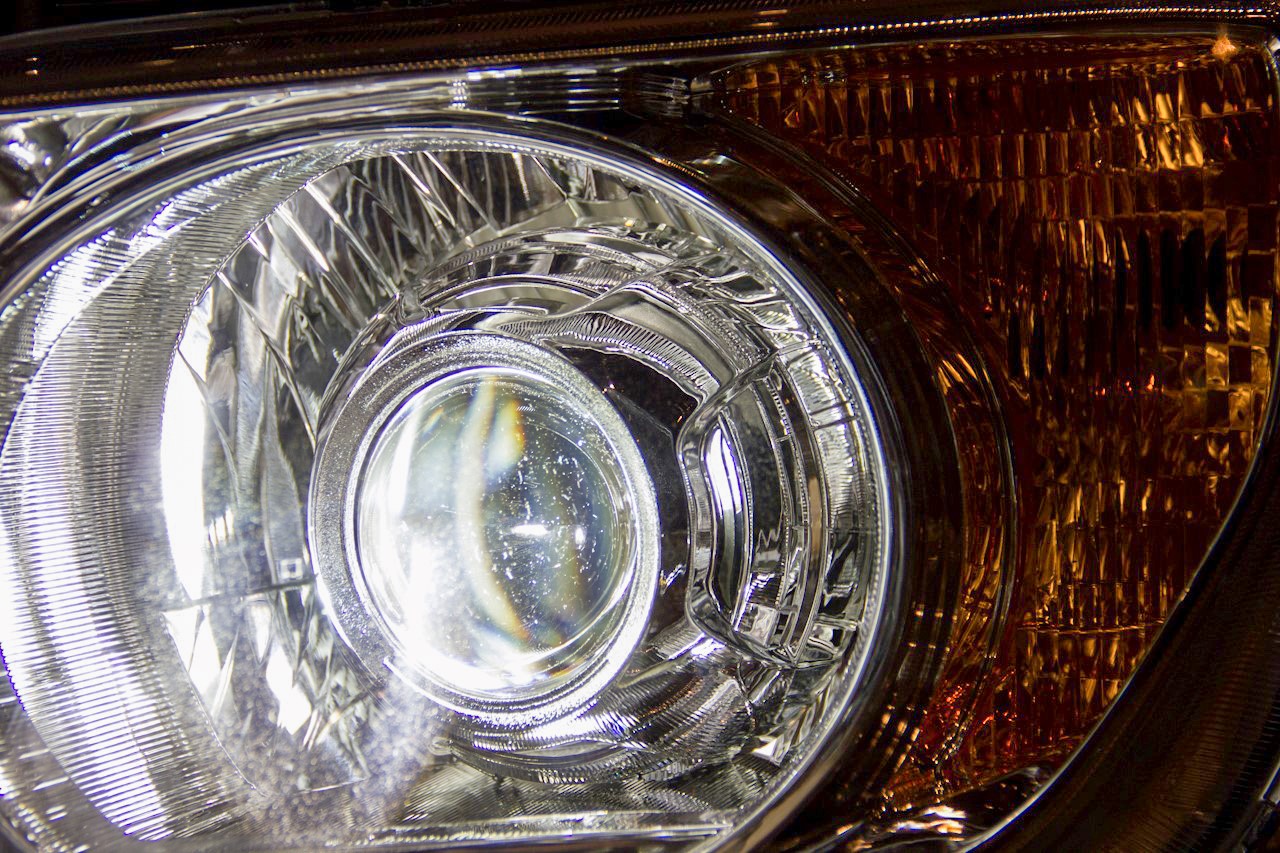

    There's a lot of dust and smearing on the projector lens - funnily enough, they were on the rear of the lens, so the headlight had to be opened again...

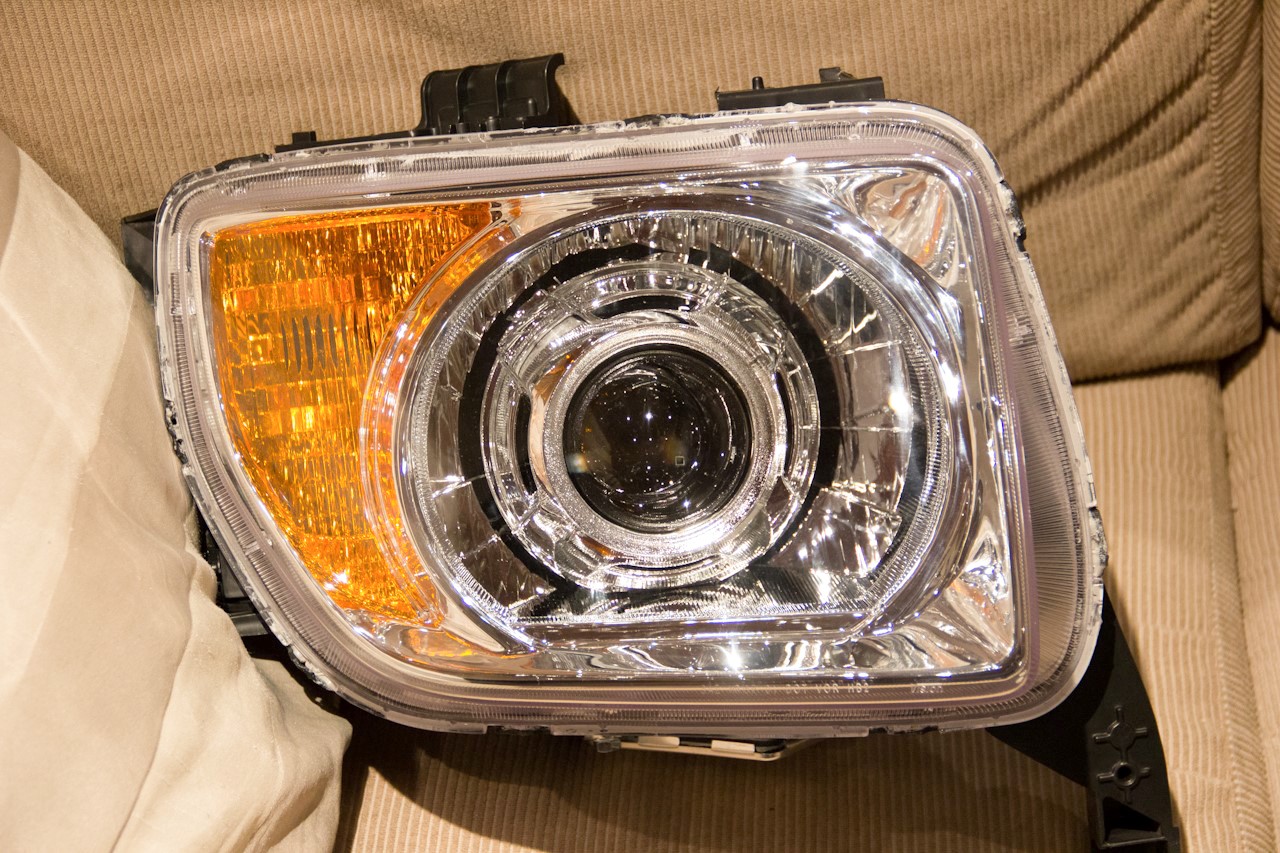

    One finished!

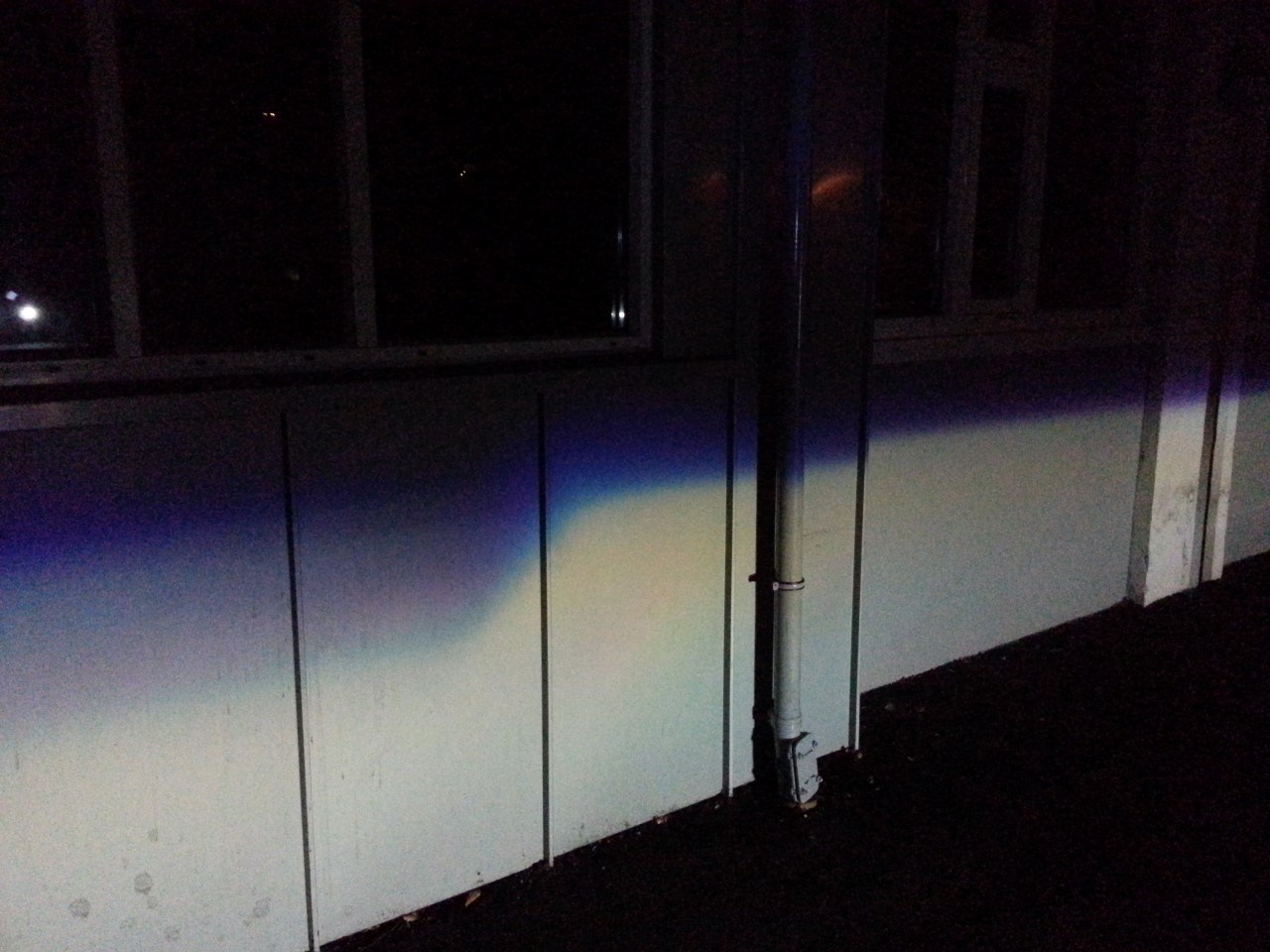

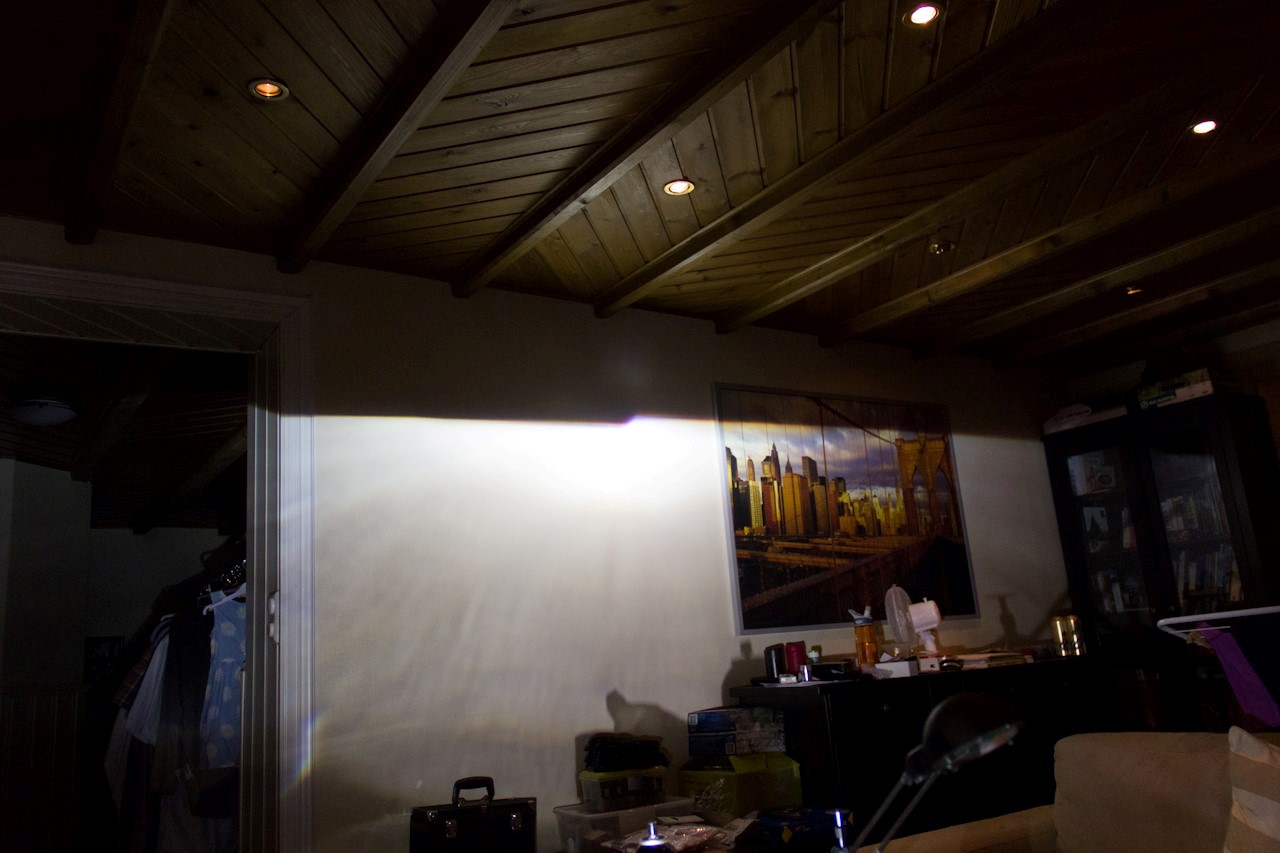

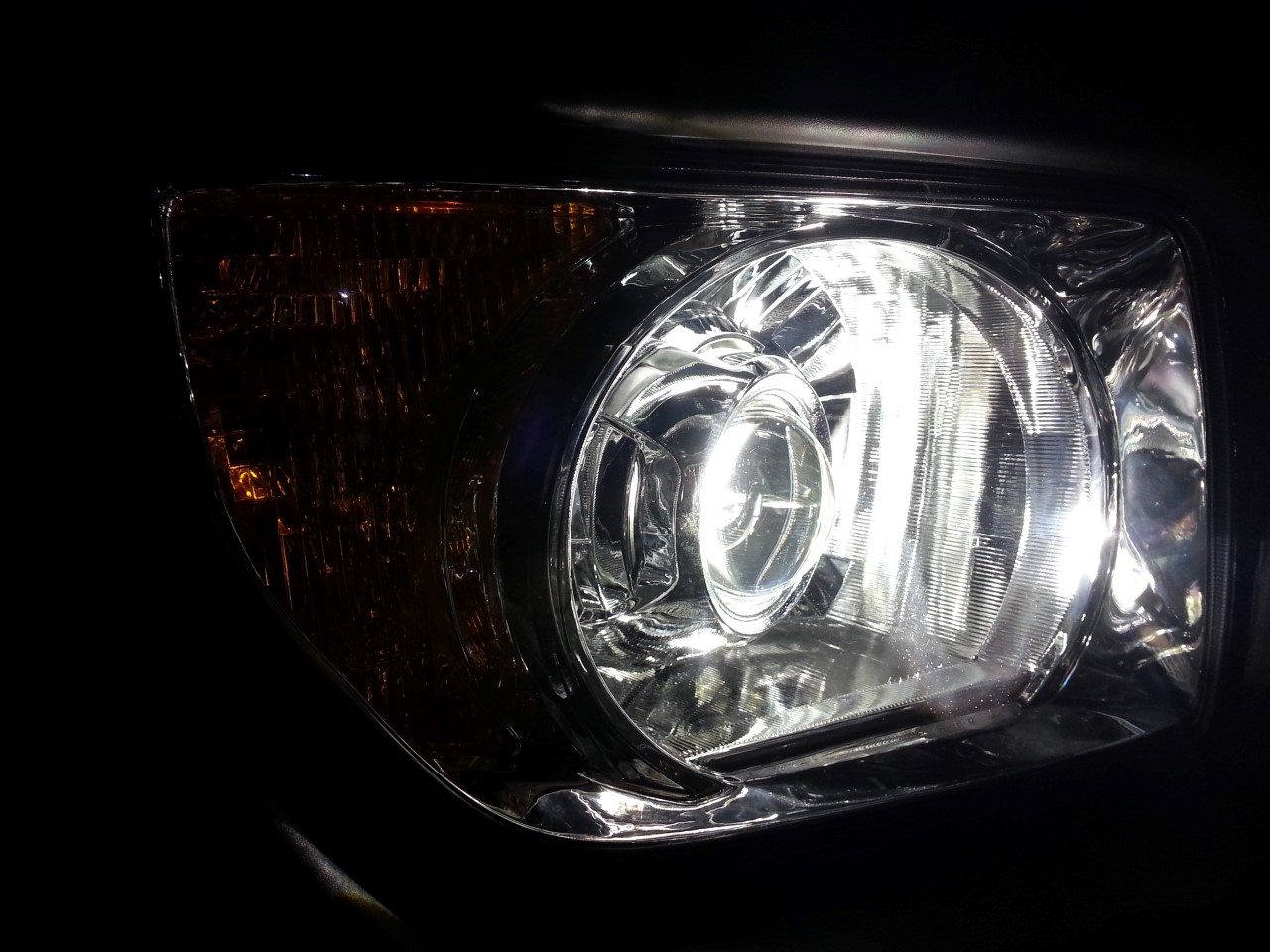

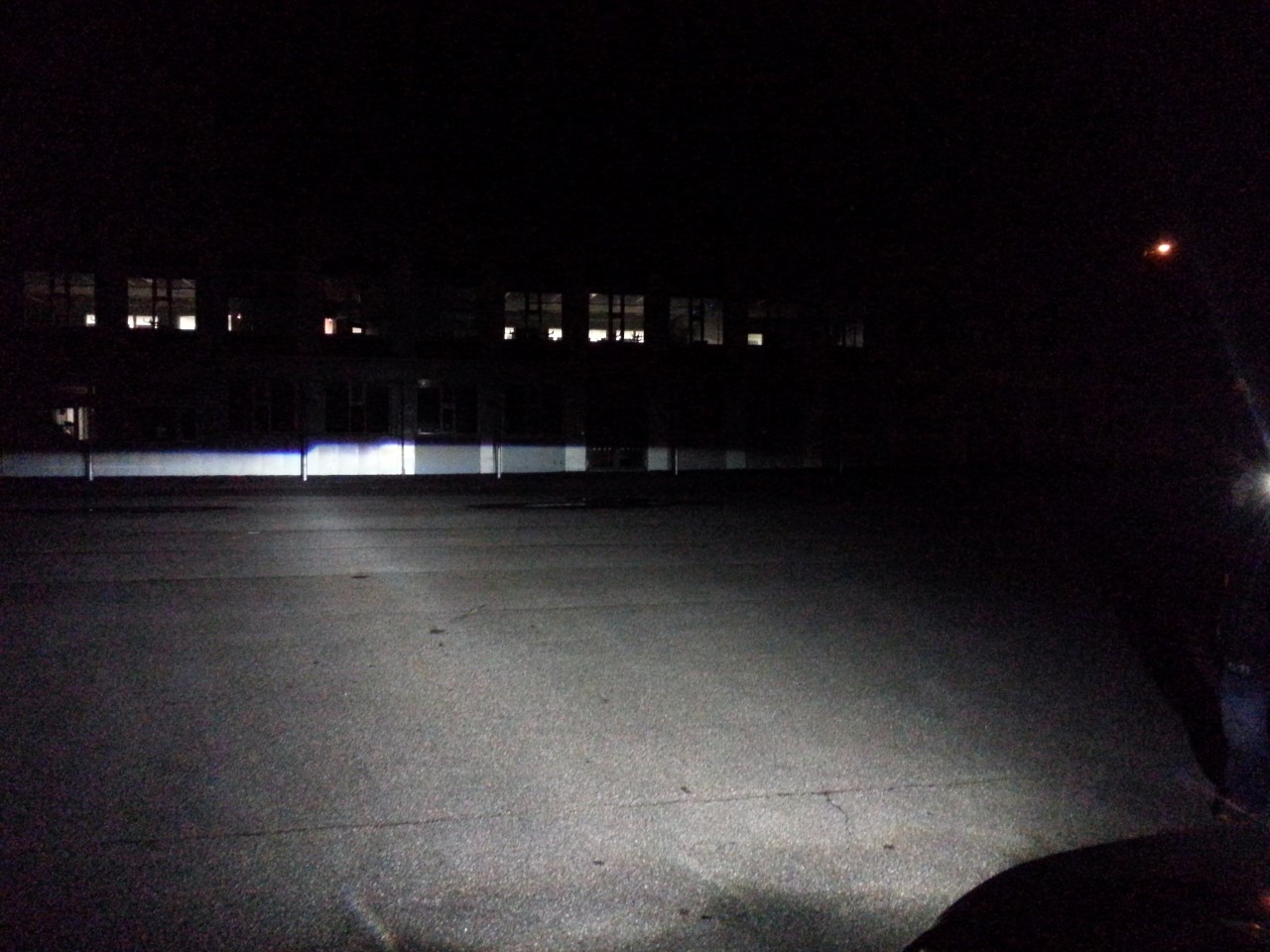

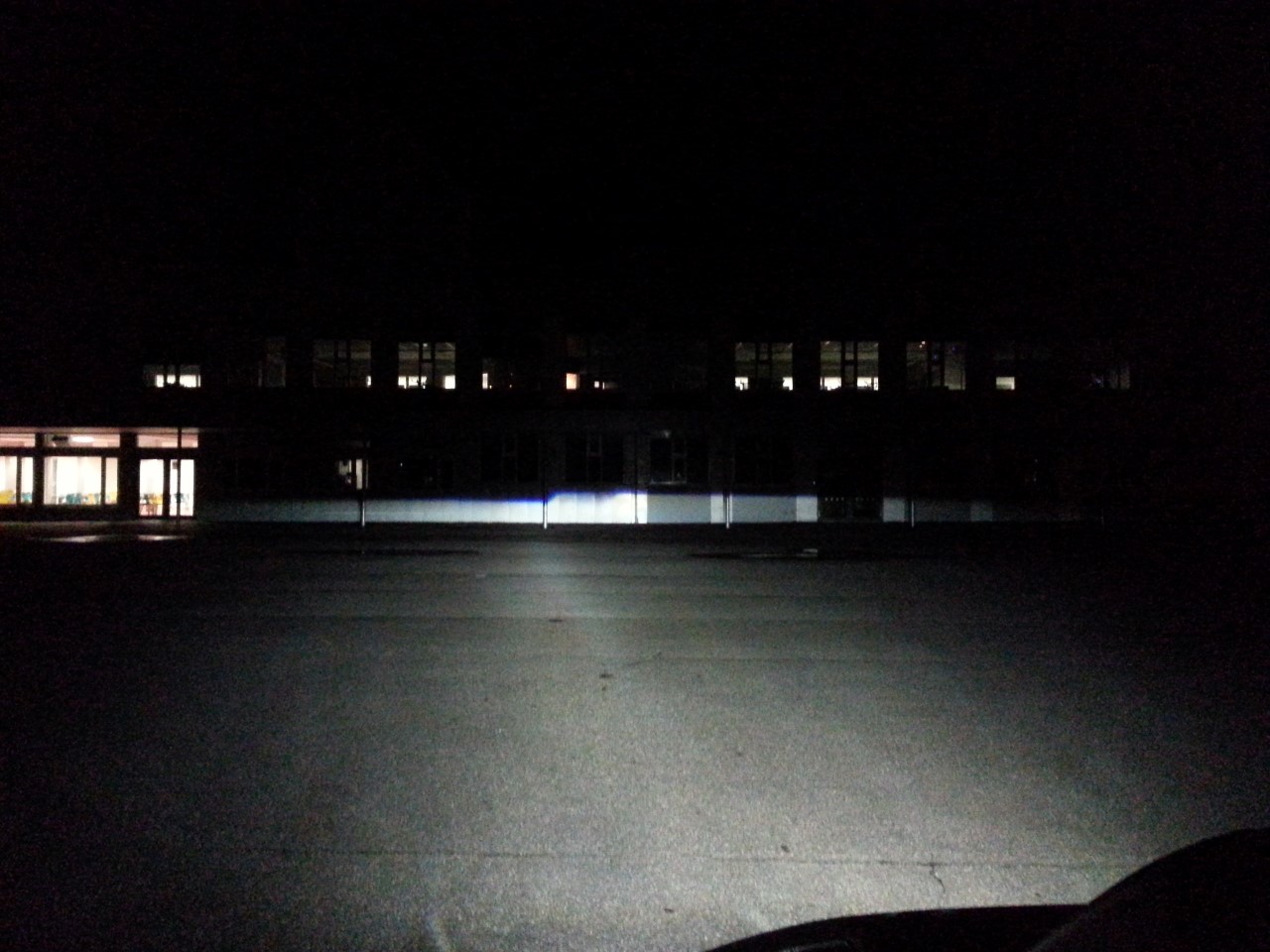

    Output shots:

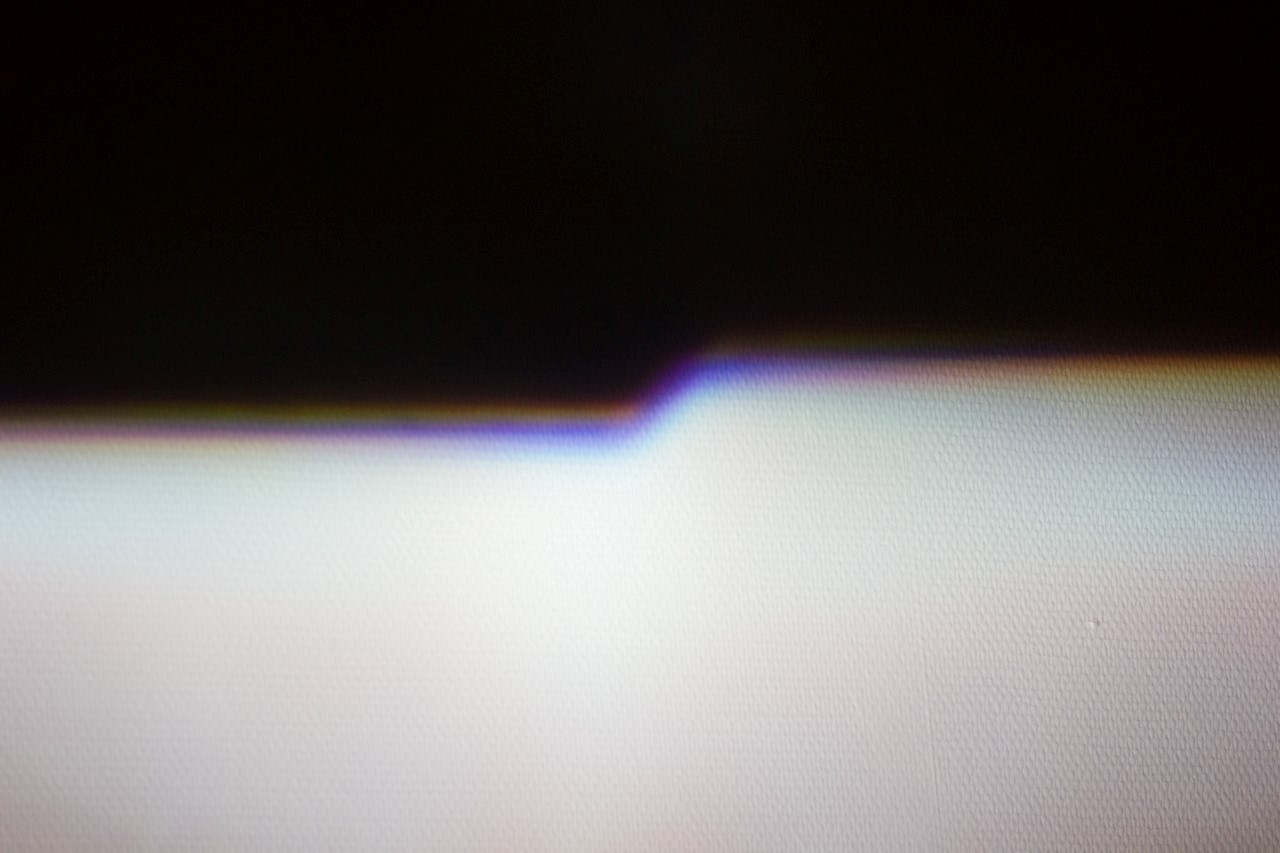

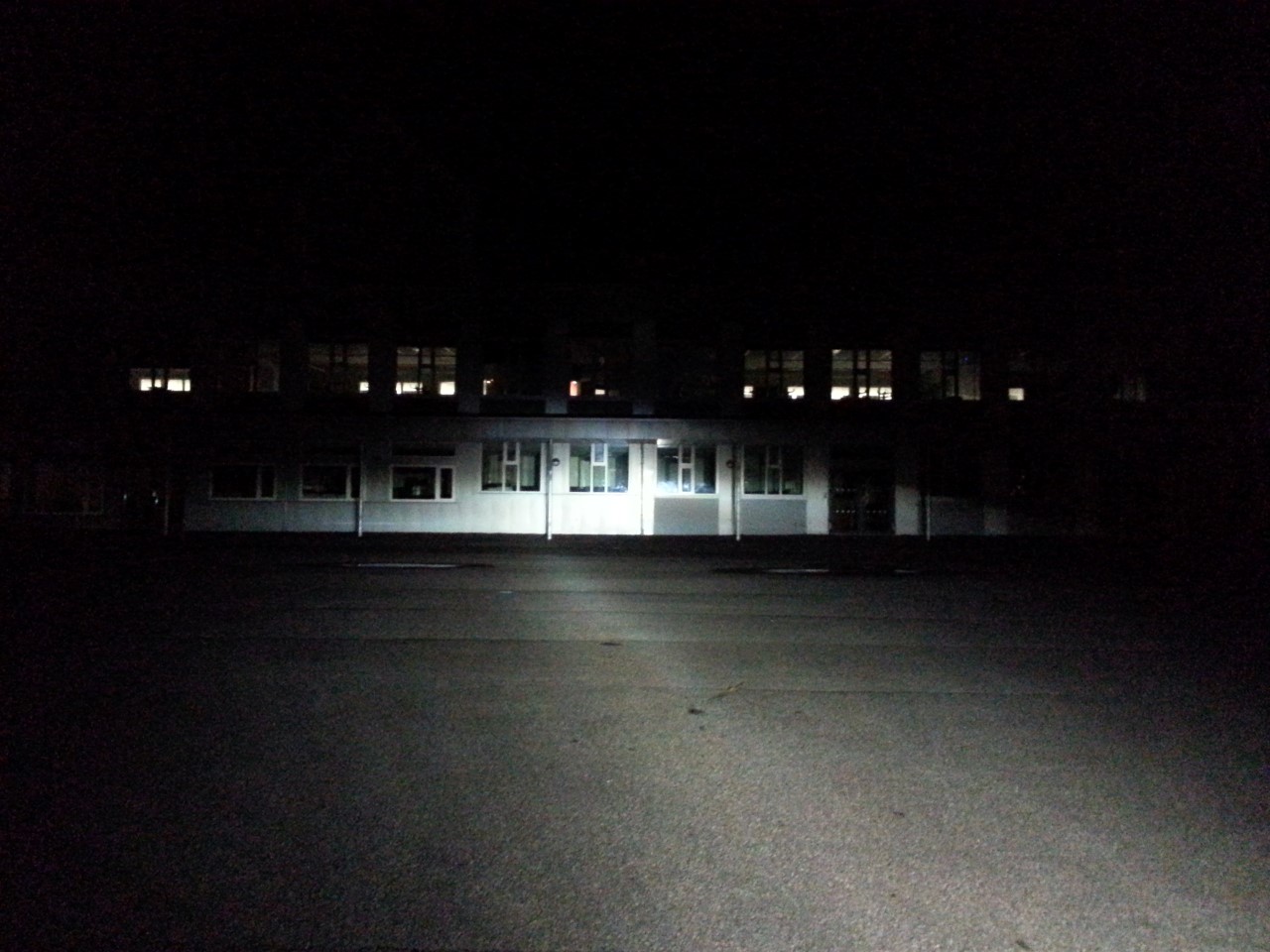

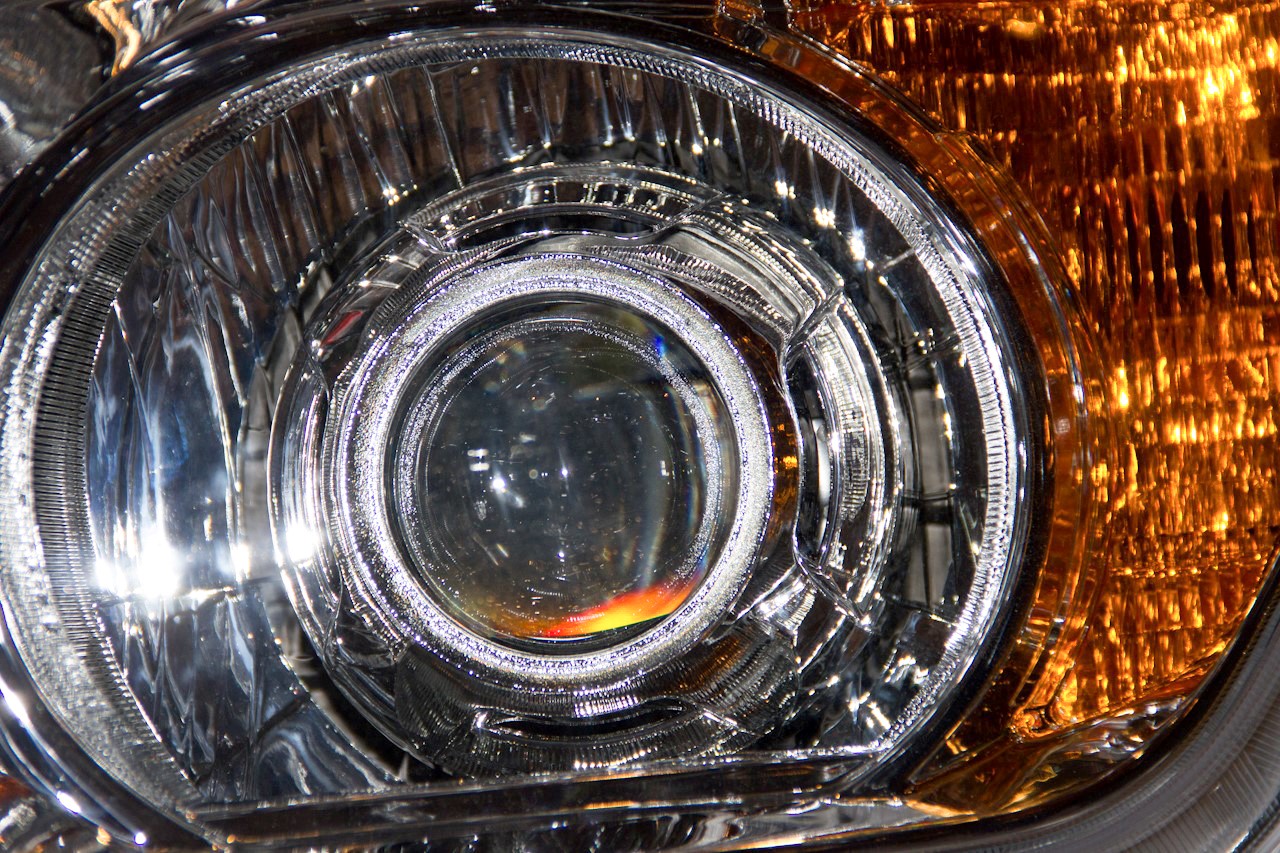

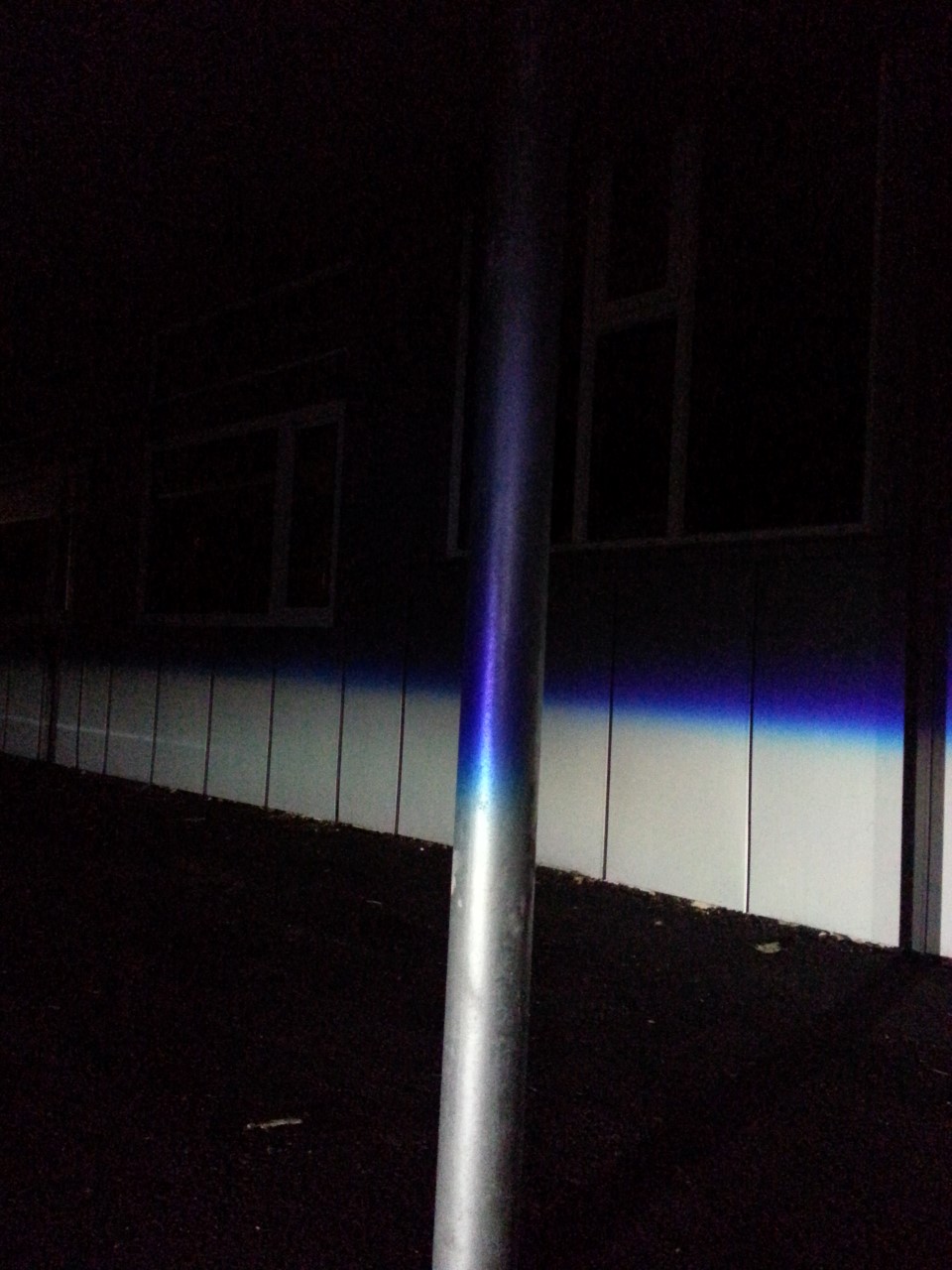

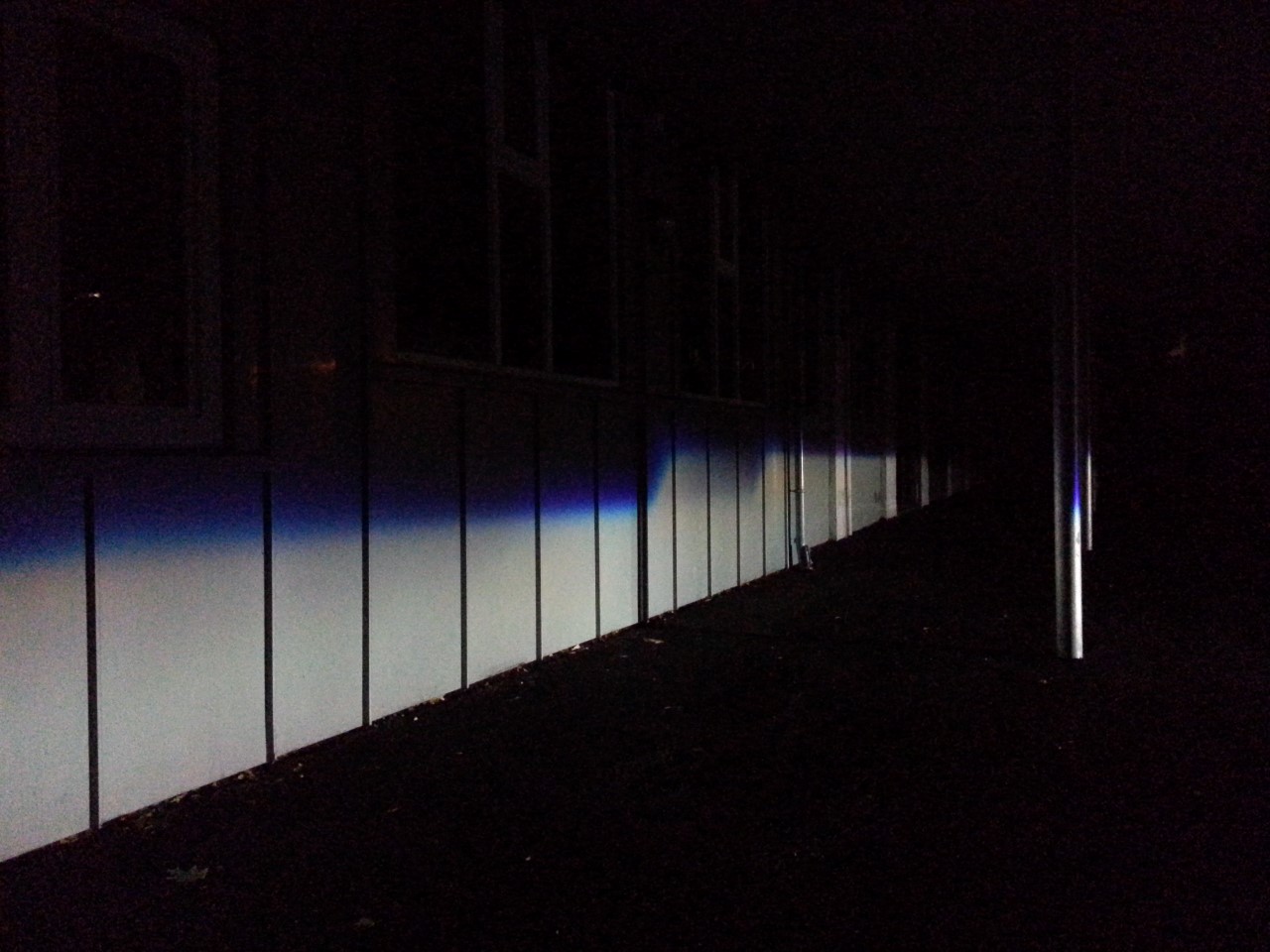

    Closeup of the cutoff and colour band. It's a bit blurred, but that's because of the headlight lens, not because of the camera. If you look at the picture frame just to the right, you see that it's in focus.

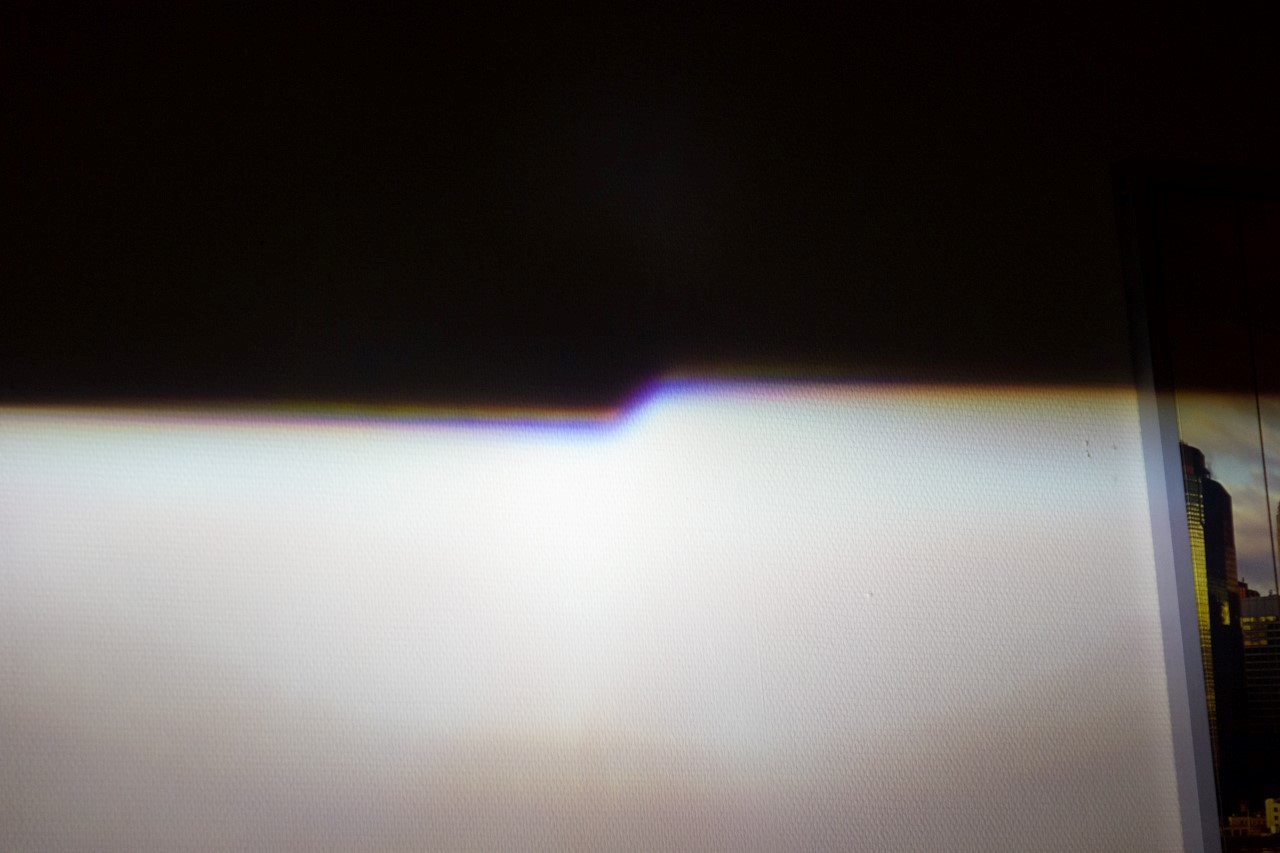

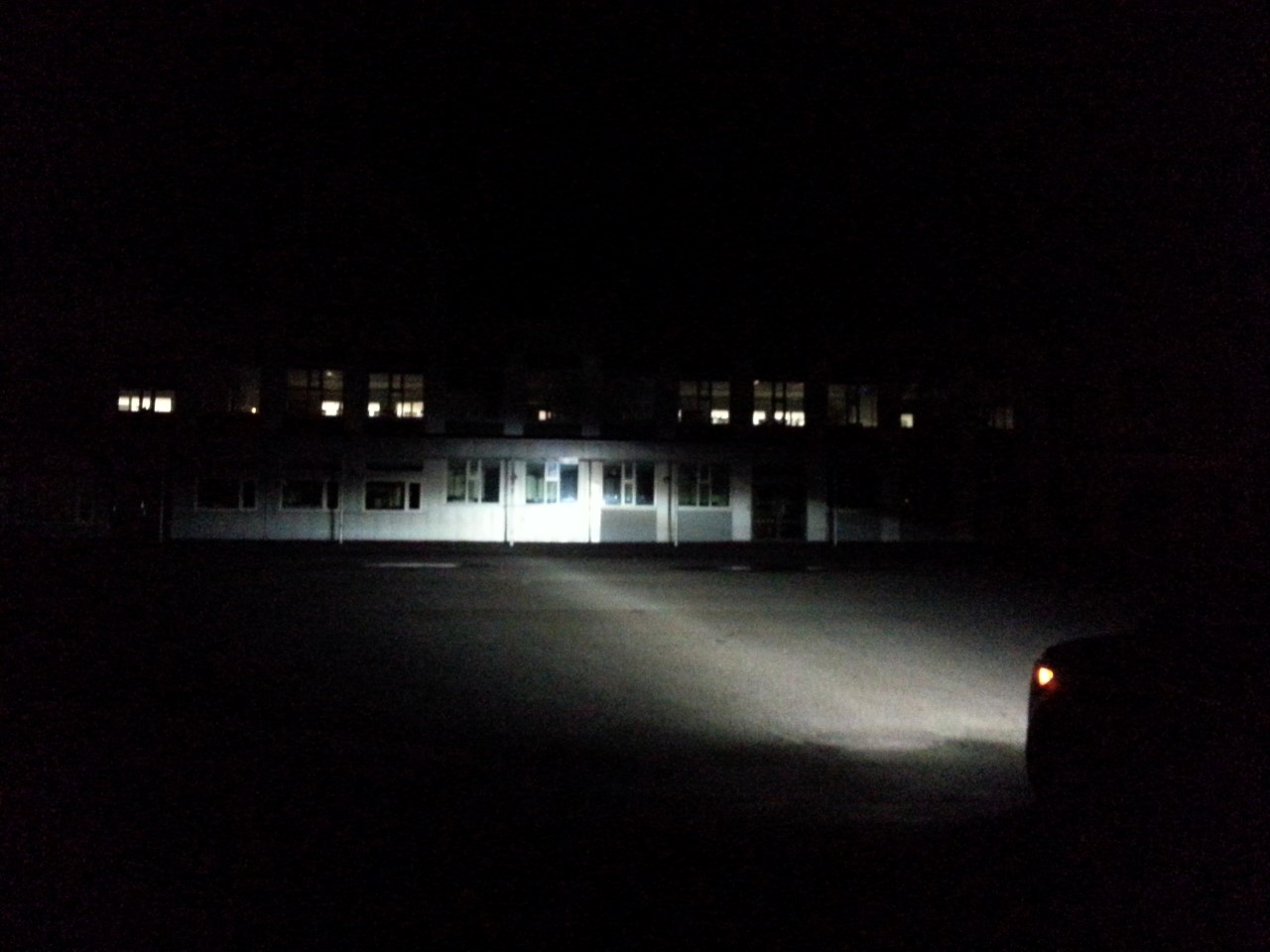

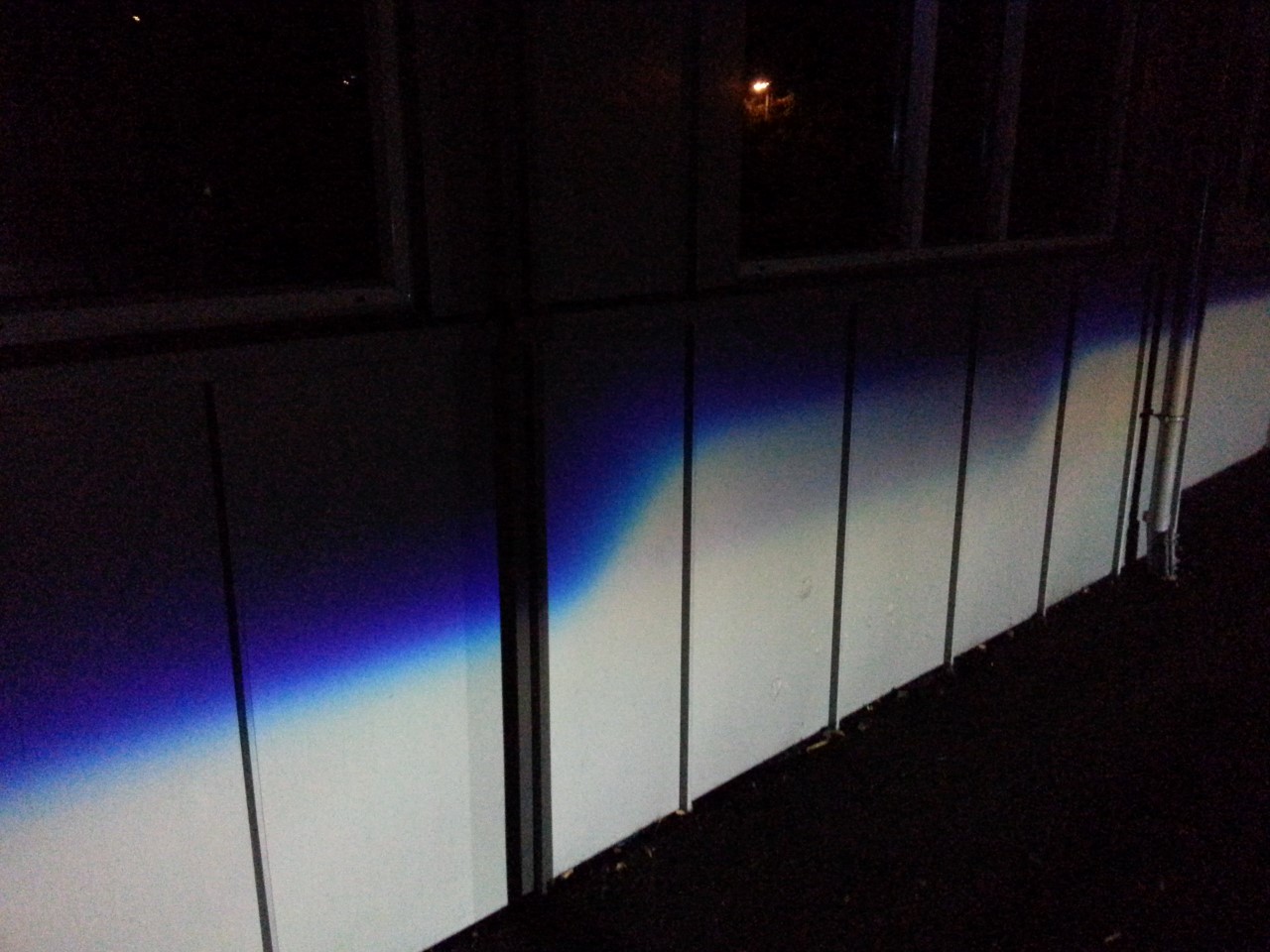

    Slightly more zoomed in:

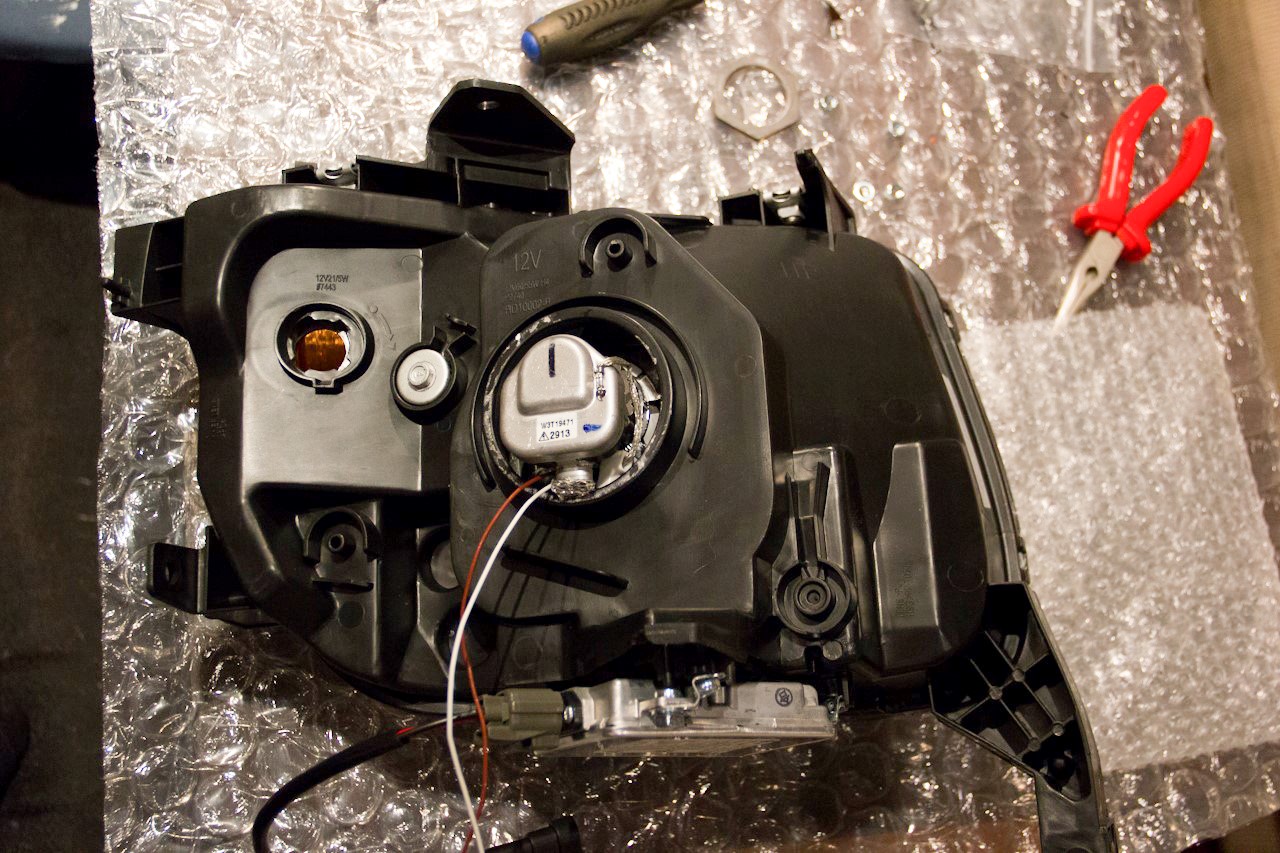

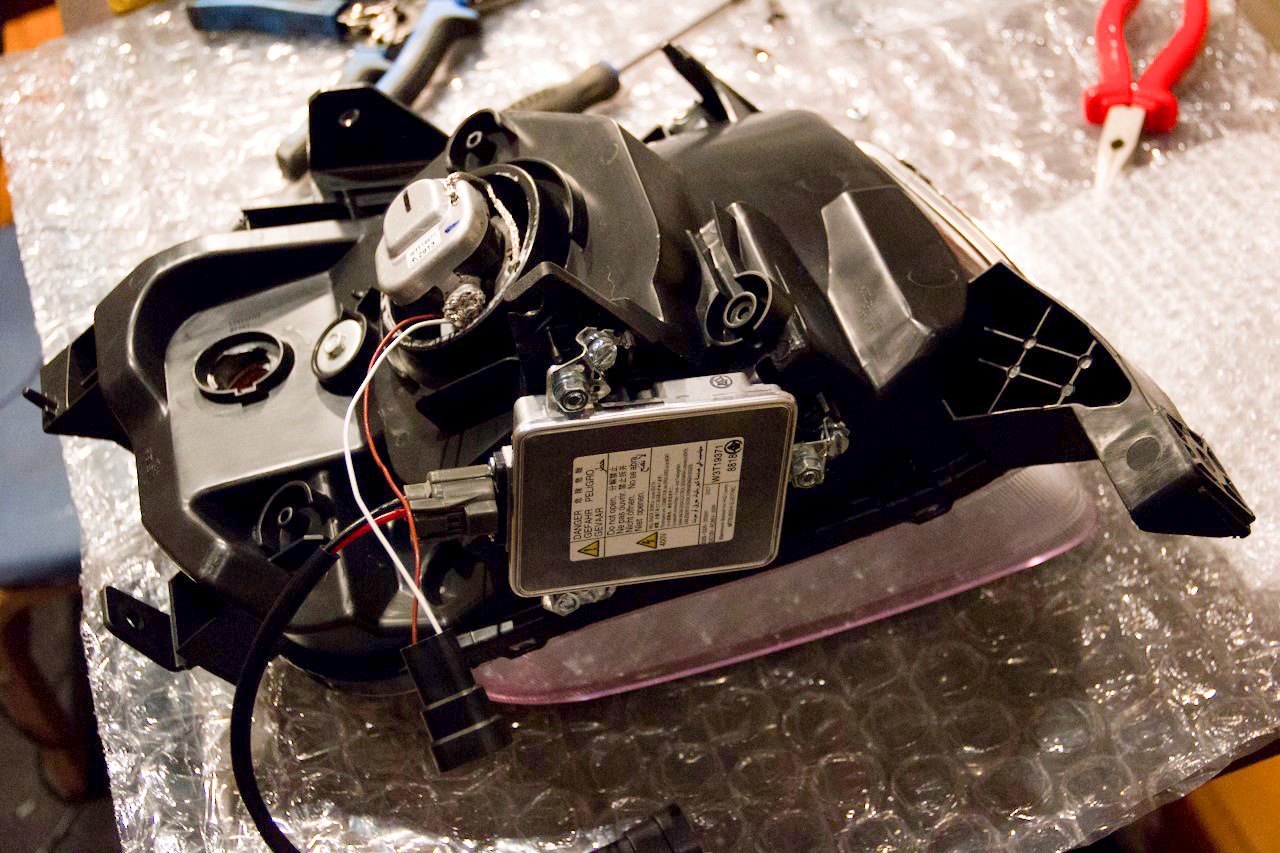

    And the rear. I don't have any rubber caps large enough to cover the opening, so we'll try using the OEM caps and see how that fares. If it doesn't fit or leaks, I'll put in an order for a pair from TRS or from a member on here that had some for sale.



    The headlights had circular tracings and screw posts at the bottom that looked like a perfect fit for a Mitsubishi Electric ballast, so before even test fitting it, I drilled a hole and then test fitted it... and of course, it didn't line up with the screw posts. So I had to improvise:

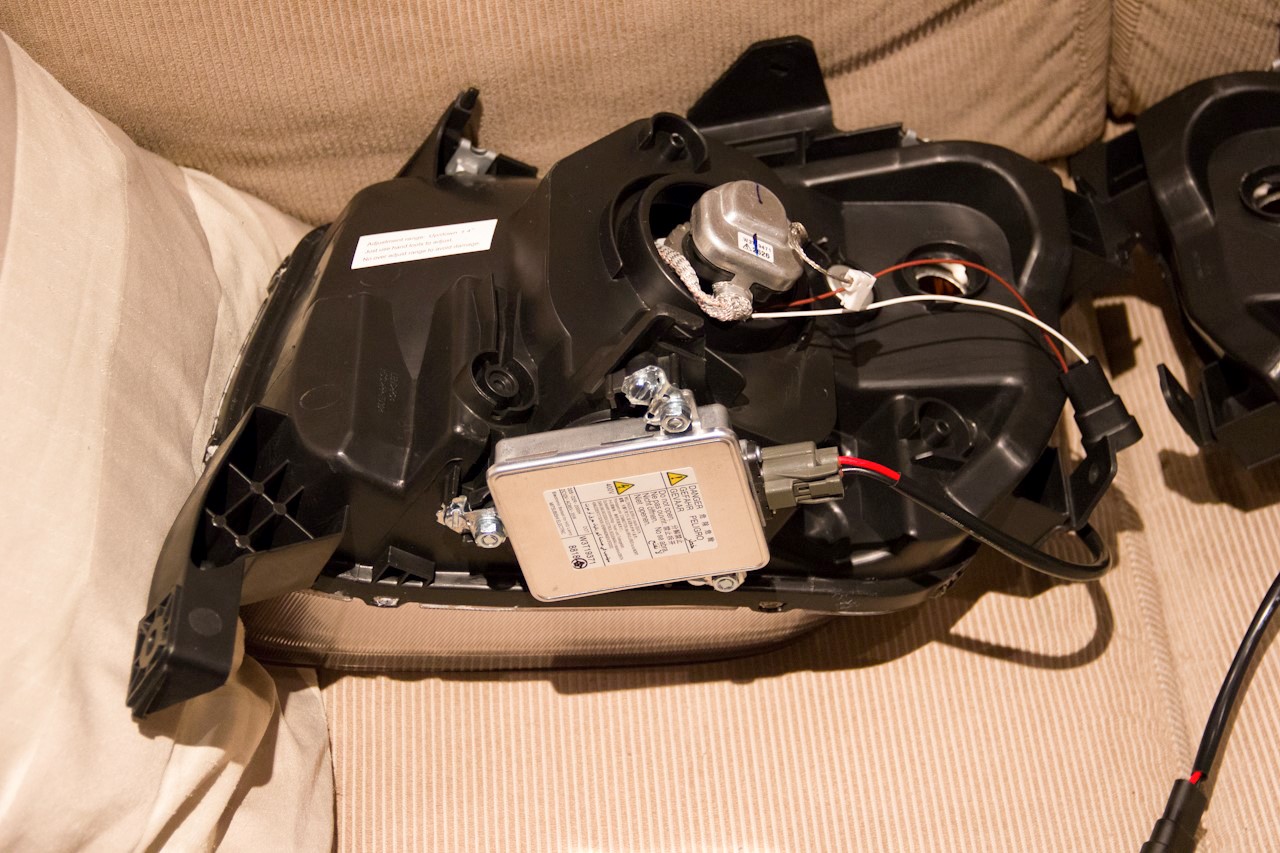

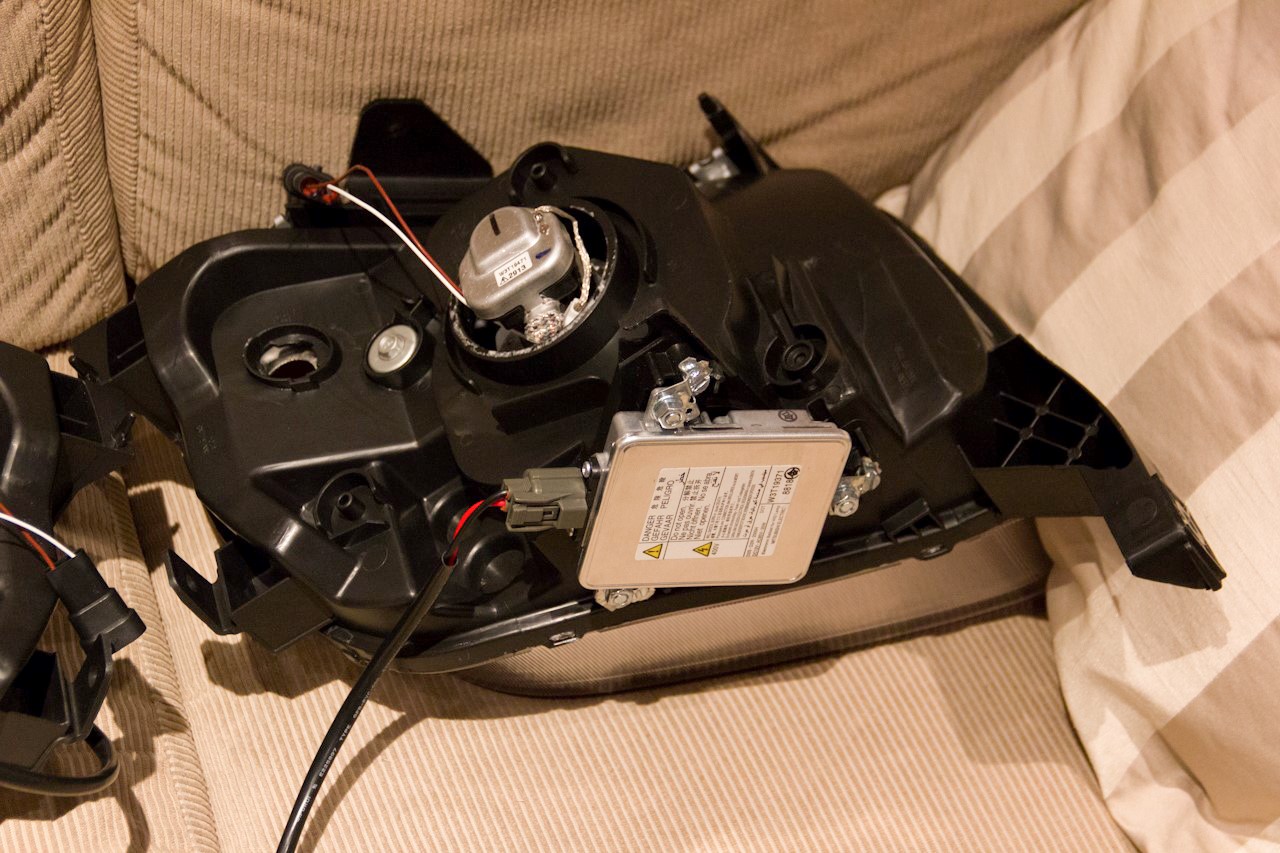

    Turned out pretty decent, after all. The ballast sits tightly against the housing, there's a rubber grommet sealing the hole and there's a rubber grommet protecting the connector itself, inside the housing. The latter is also squeezed tightly inside the opening, so I doubt water will be able to enter the housing. Oh, and it also hangs on the underside of the headlight. My only worry is if there is ample room for everything when installed on the car...





    Then onto the second headlight. Here's the shroud, trimmed, and ready to install. The rest of the pictures would be the same as the above ones, so I didn't even bother taking any.

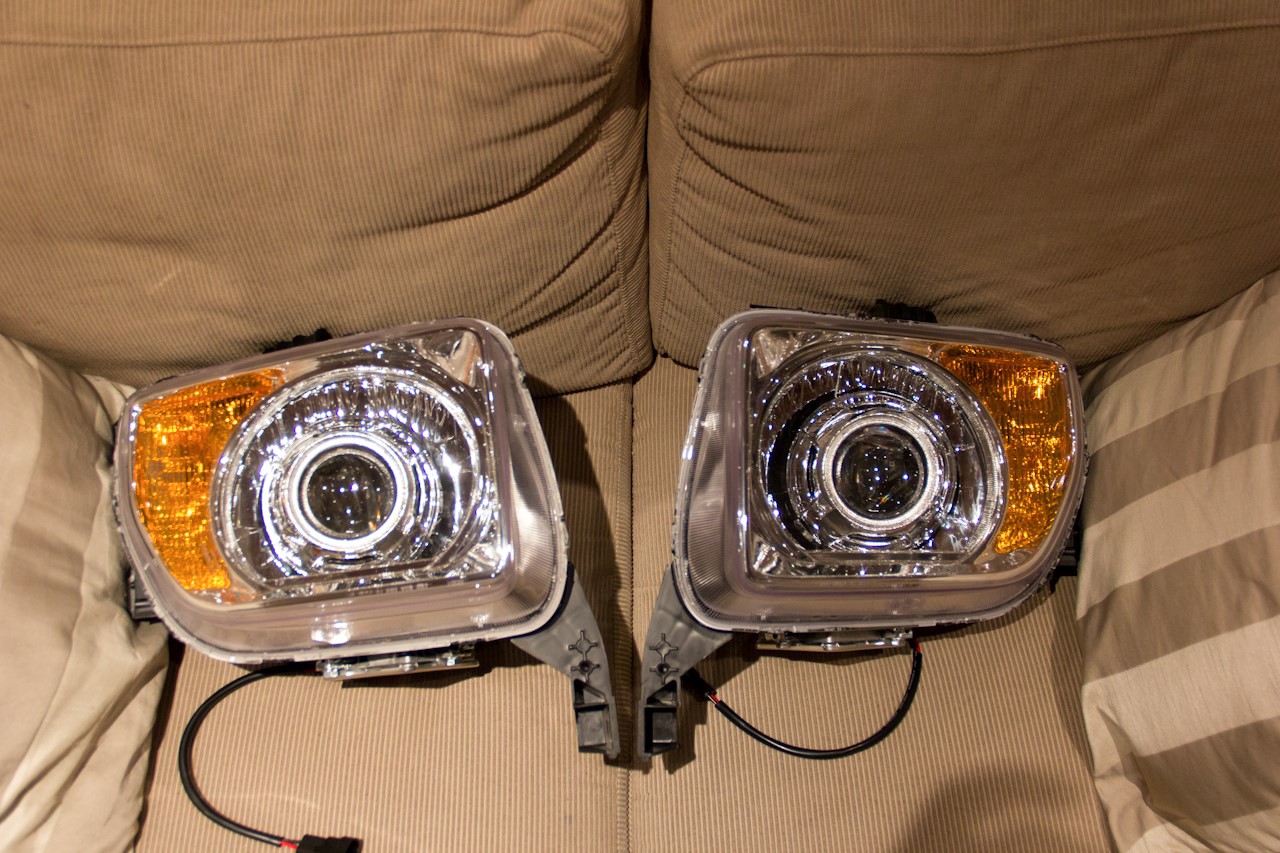

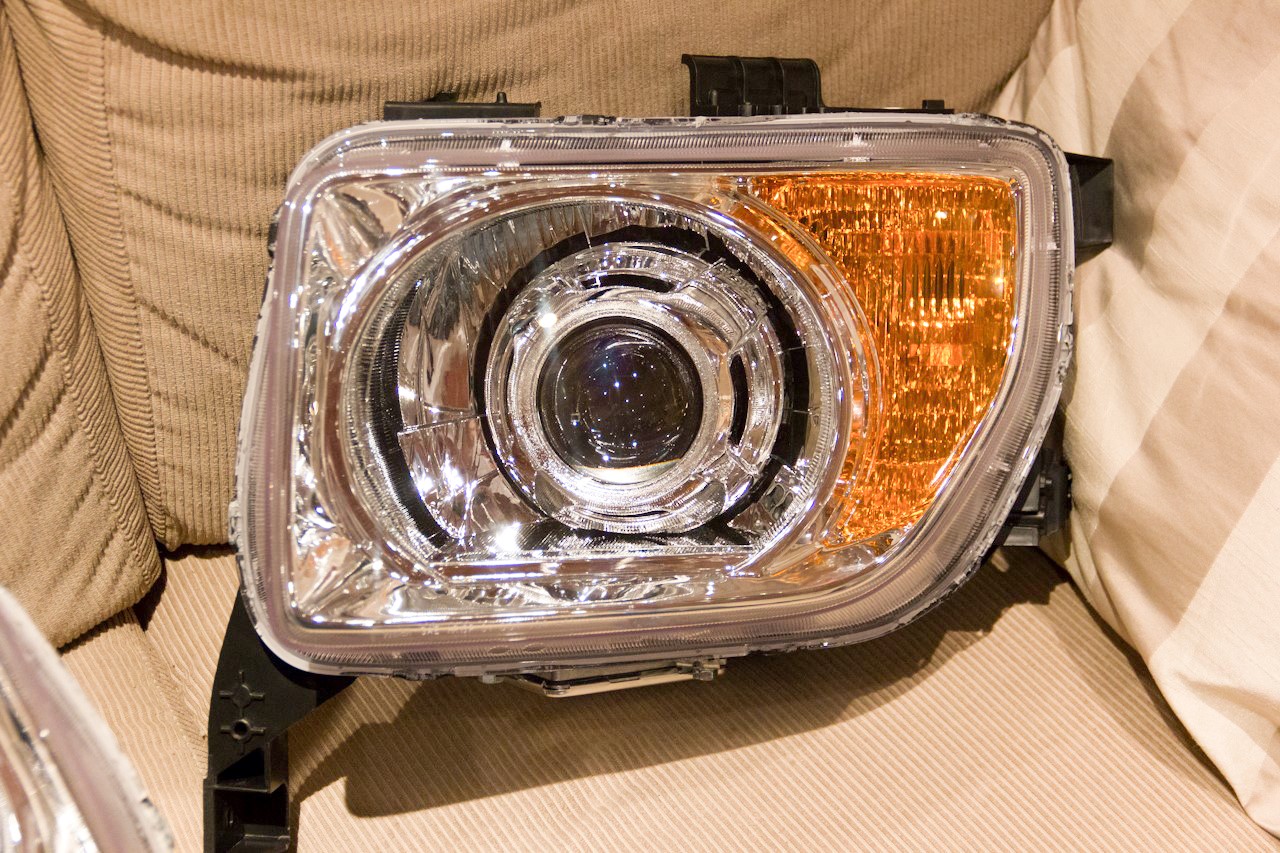

    Both finished:

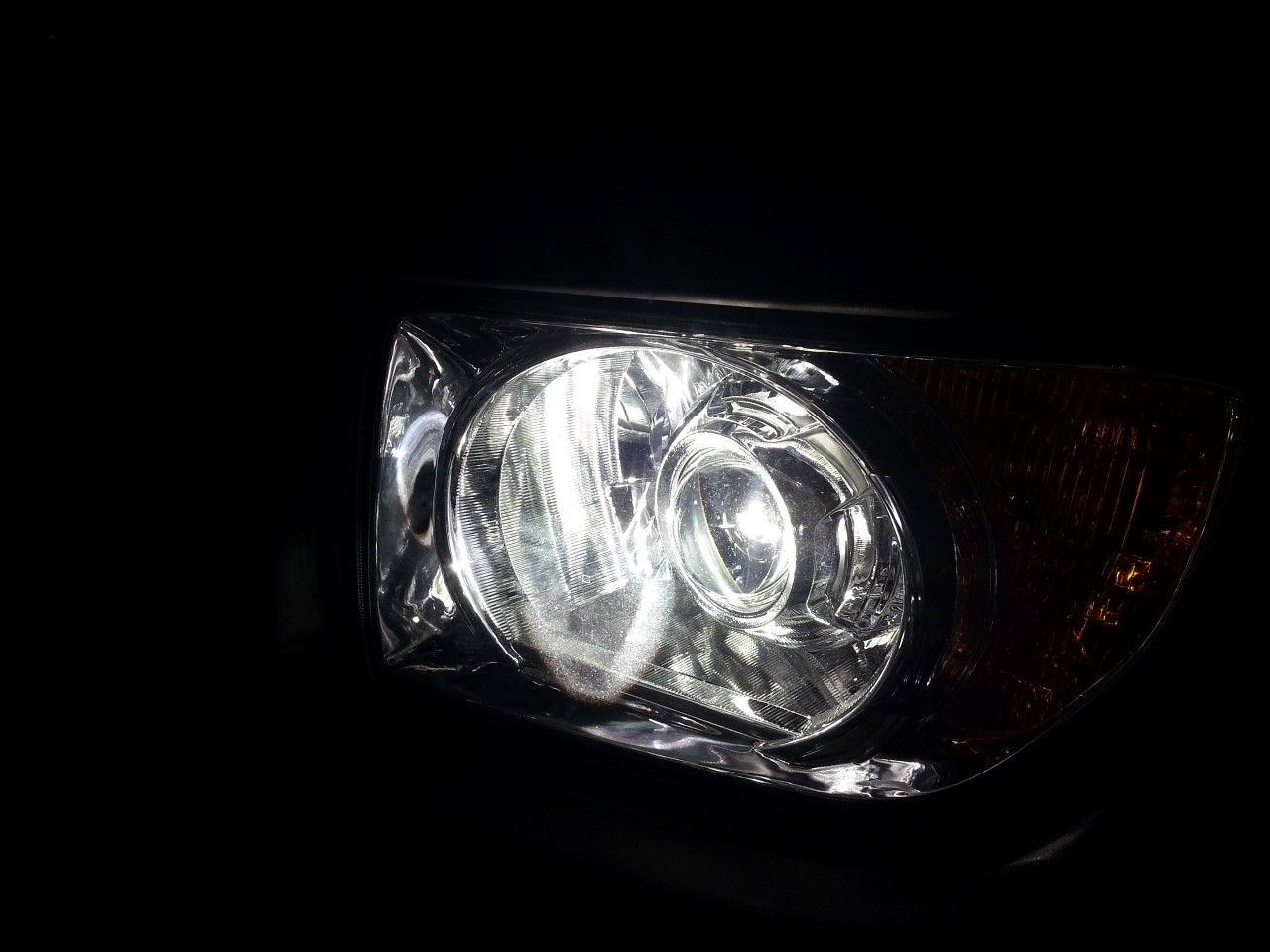

    Passenger side:

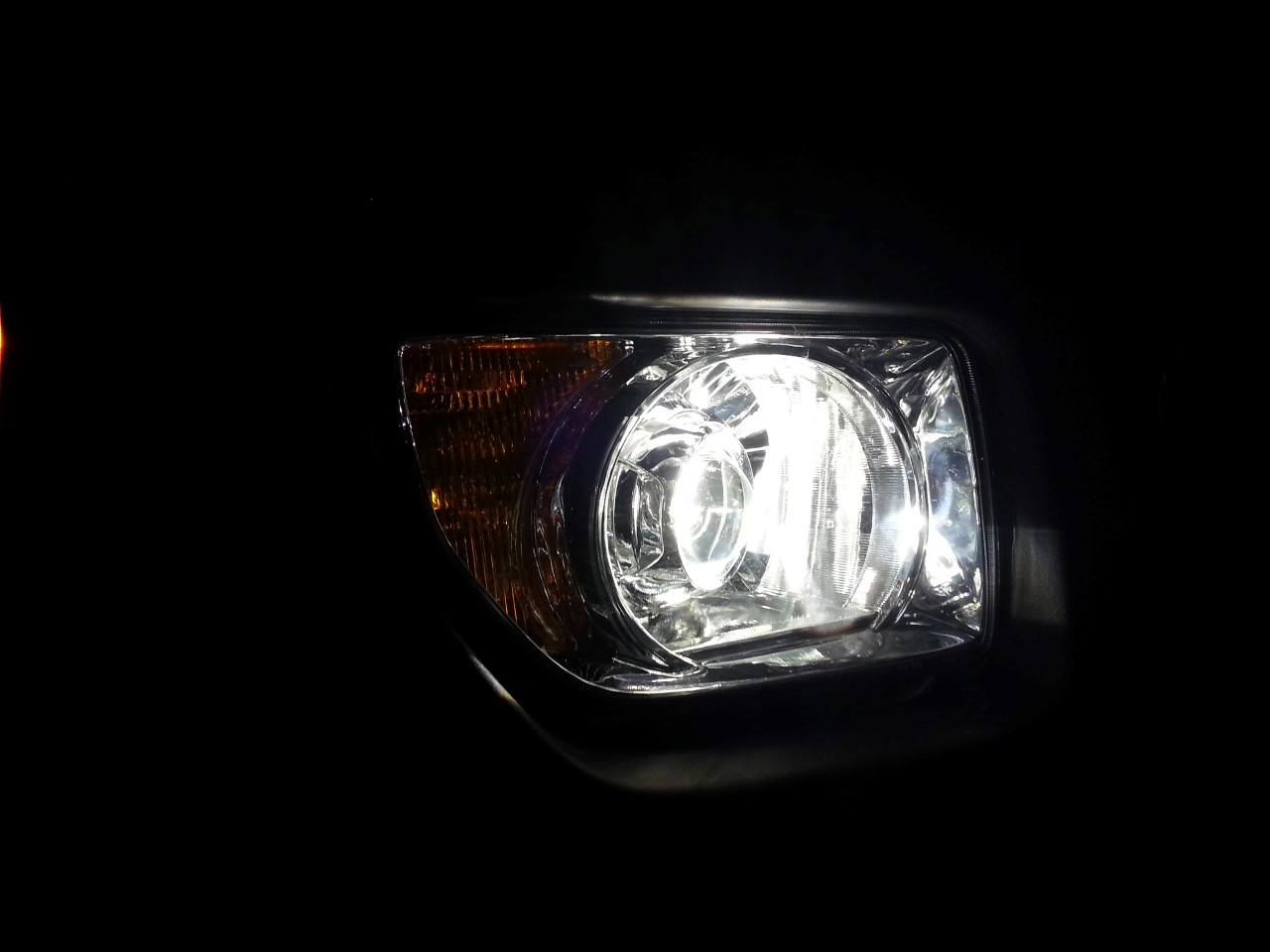

    Driver's side:

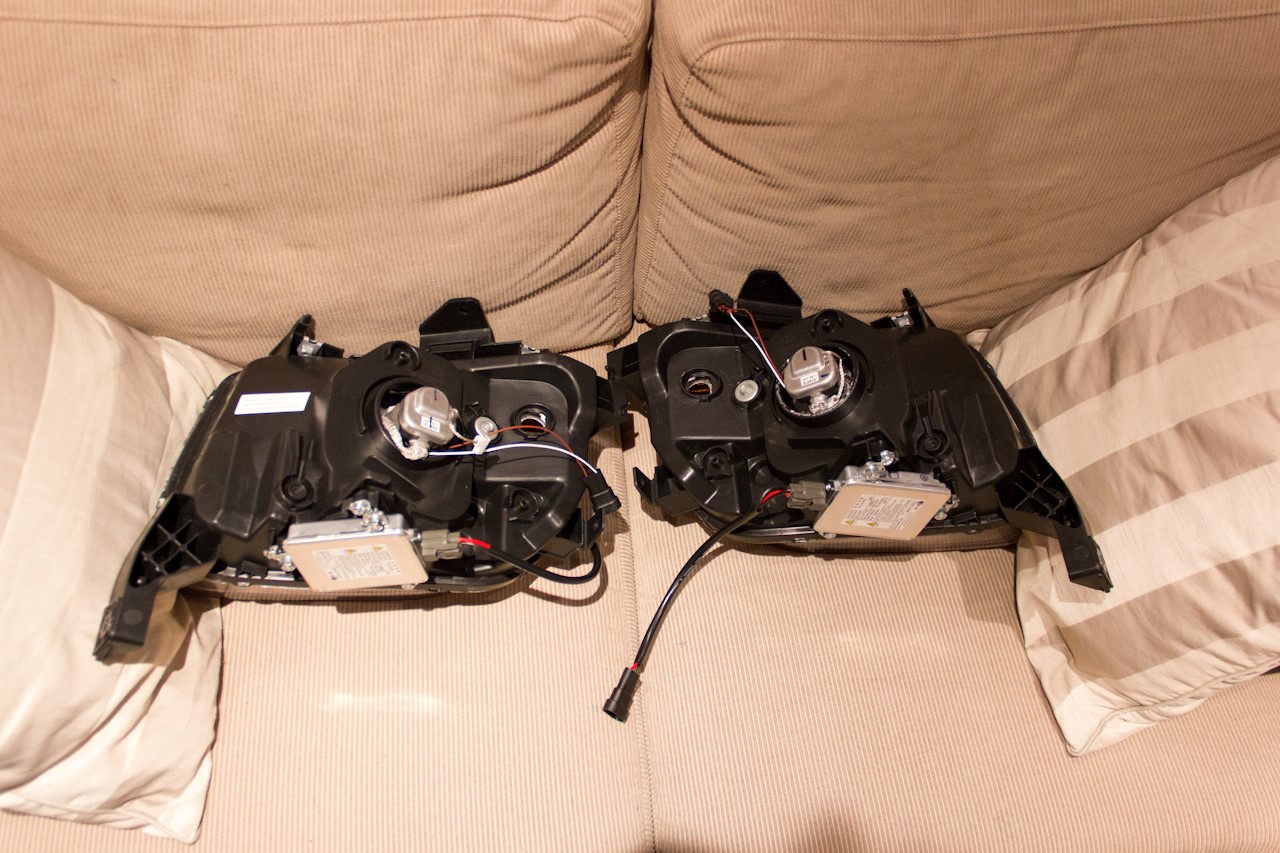

    Both from rear:

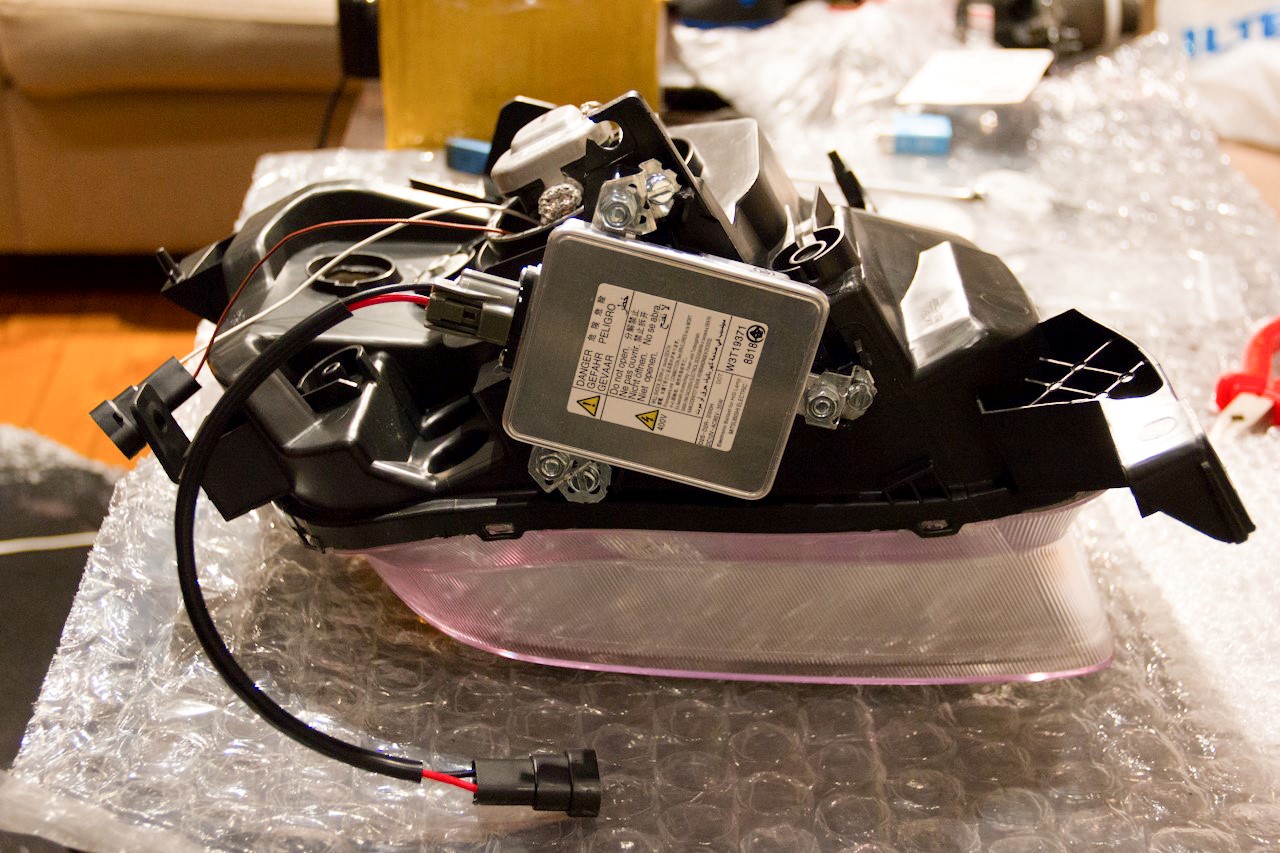

    Passenger side rear:



    Driver's side rear:



    Pictures of the lights installed on the car will follow once he has time to come over for a visit. Hopefully he'll stay the night so we can go out after dark and snap some real world pictures of the output as well.

    Time spent: About 5 weeks, mostly waiting for stuff to arrive... Working time spent is about 10 hours or so, mostly because I had to open the headlights again after all was done, because there was a lot of dust on the inside of one headlight lens, and I'd fat fingered the reflector and projector lens on the other, as well as forgetting to install the pieces that hold the two bottom pivot legs of the reflector. Doh.

    ----------------------------------

    Update!

    Installation and wall shots:

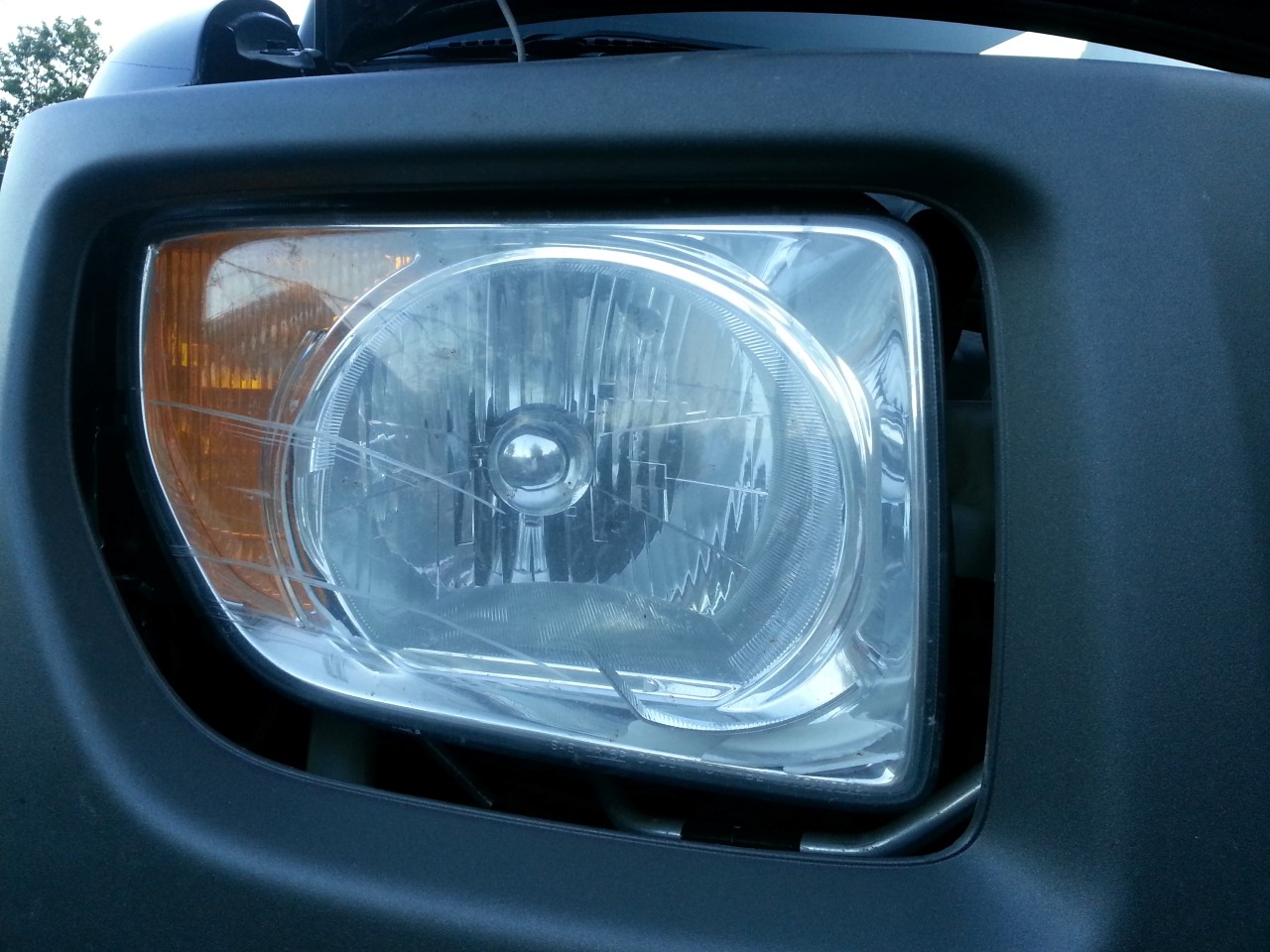

    Original headlight with damage from the accident years ago... after we got the bumper off, we found that it was clinging on by means of one of the three mount points. Also notive the broken-off piece of reflector in the bottom right corner. Way overdue for replacement...

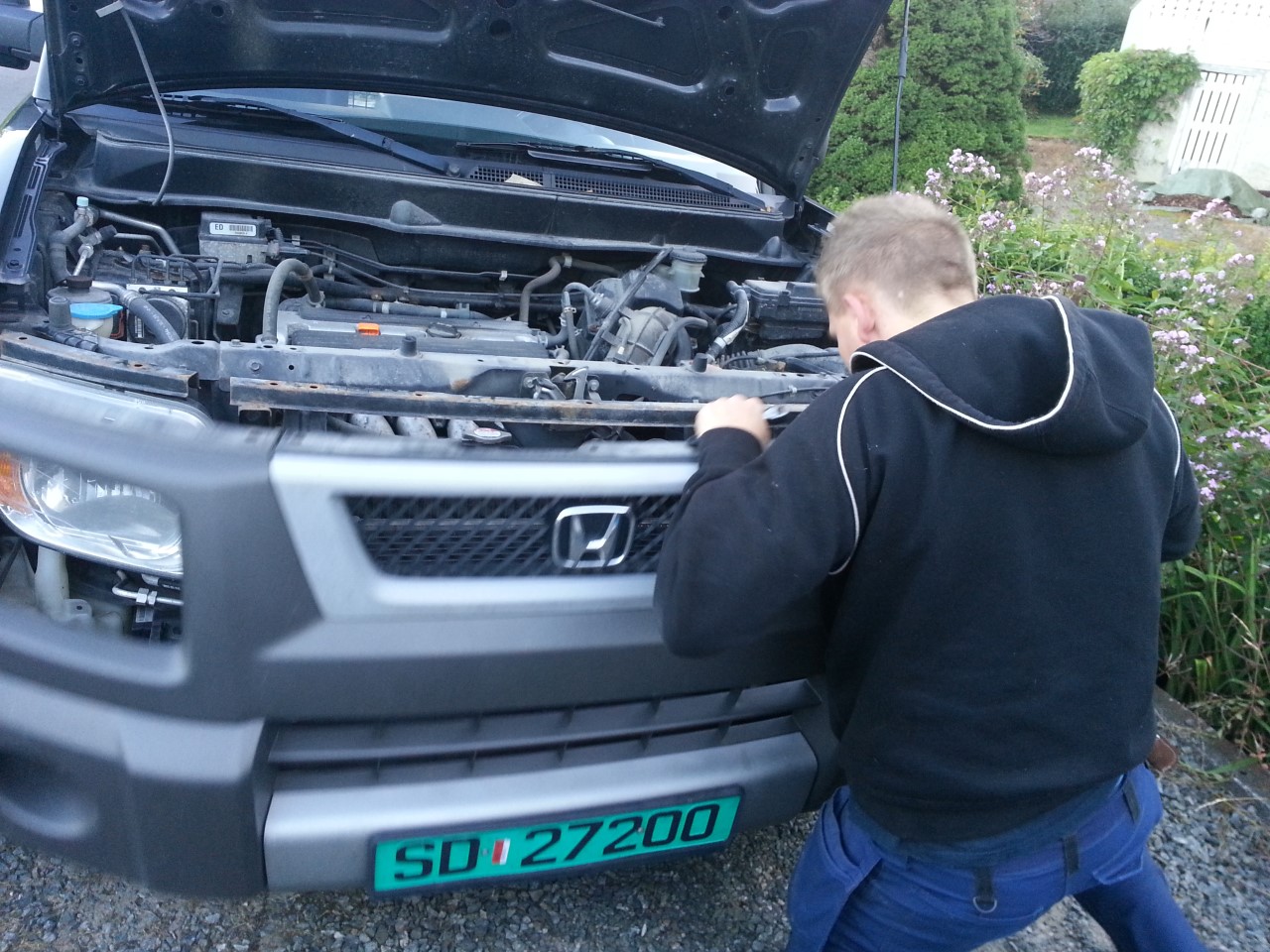

    Bumper removal in progress. As daylight was waning fast, there are no other pictures of the installation, but you know how it goes. We spent quite a few hours on making a harness that worked after we burned the $8 China harness on the first startup.



    After a LOT of back and forth with the harness, a month of driving with one headlight dipped because an adjuster mount broke, new MotoControl harness from TRS and a fixed mount, this is what we ended up with:
