    With a big thanks to Matt from TRS and a shout out to the HIDP members that made this all possible, I bring you................The Projector Full Beam Gallery


    Here are the projectors that will be featured in this thread of wall shots and some extras


    Projector Table Watermark Final by Sam Colt, on Flickr

    disposable_2 by Sam Colt, on Flickr



    THREAD IS UPDATED PERIODICALLY WITH NEW PROJECTORS. NEW PICS ARE MONTHS TO YEARS APART AND LABELED AS SO. SOME PICS WILL APPEAR DIFFERENT DUE TO THE FACT THE PROPERTY HAS UNDERGONE CHANGES BETWEEN PICS. AMBIENT LIGHT HAS CHANGED BUT BEAM EXPOSURE IS RELATIVELY THE SAME THROUGHOUT ALL PICS.




    The List


    3G TL (modified and tuned by ImagioX1)
    4G TL Replica(clear lens)
    Corolla LED
    Chinese H4 Mini Projector
    E46 Replica
    E55(clear lens)

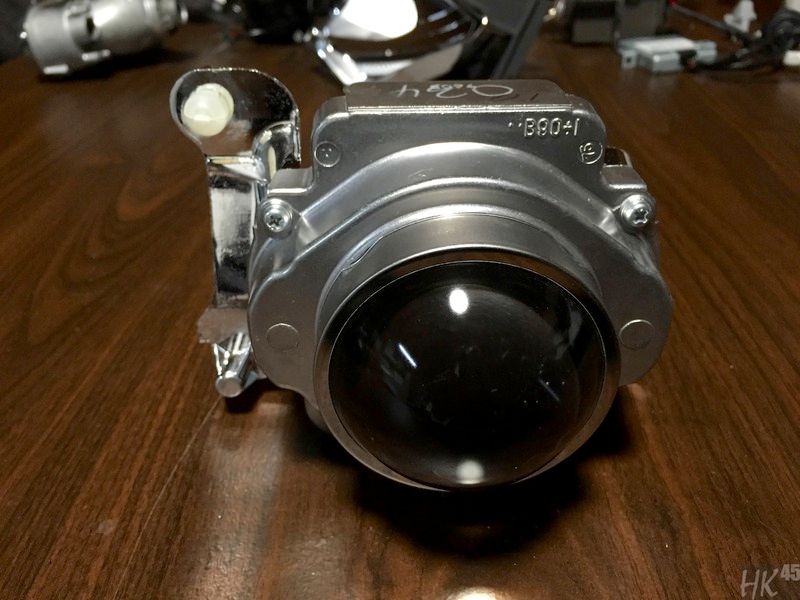

    FX35
    Fusion Fog
    G37 Coupe
    G37 Sedan
    Generic MH1
    Generic MH1 with 2 1/4" lens(pics taken at a later date)
    Koito Bi-LED
    LS430-Left
    LS460-Right
    M45-Left
    Maxima/RX330 NON AFS
    MH1 Super(pics taken at a later date)
    Morimoto EVOX-R
    Morimoto FX-R 3.0 3"
    Morimoto Matchbox
    Morimoto MD2S 3.0
    Morimoto MD2S 4.0(pics taken at a later date)
    Morimoto MD2S 5.0(pics taken at a later date)

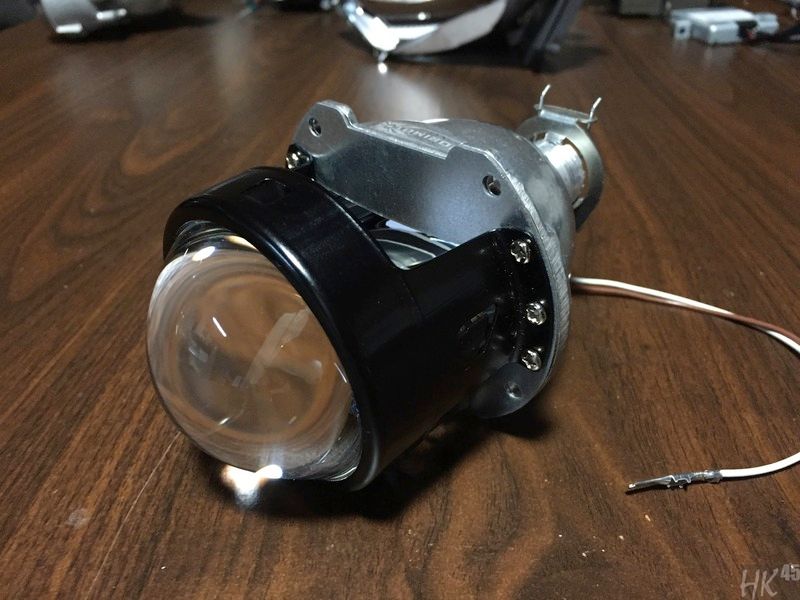

    Morimoto MH1 7.0
    Morimoto MLED
    Morimoto Type U Fogs
    Morimoto Sealed7 LED V2(pics taken at a later date)
    Murano H11 Halogen
    Murano H11 PnP HID

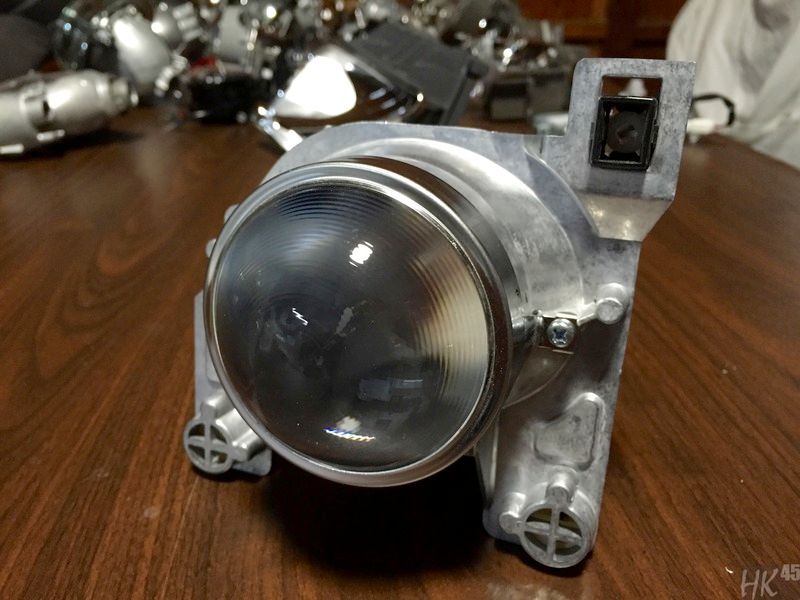

    Murano HID(step)
    Murano LED & LED H--Beam Reflector
    Optima(pics taken at a later date
    Outlander Sport(pics taken at a later date)

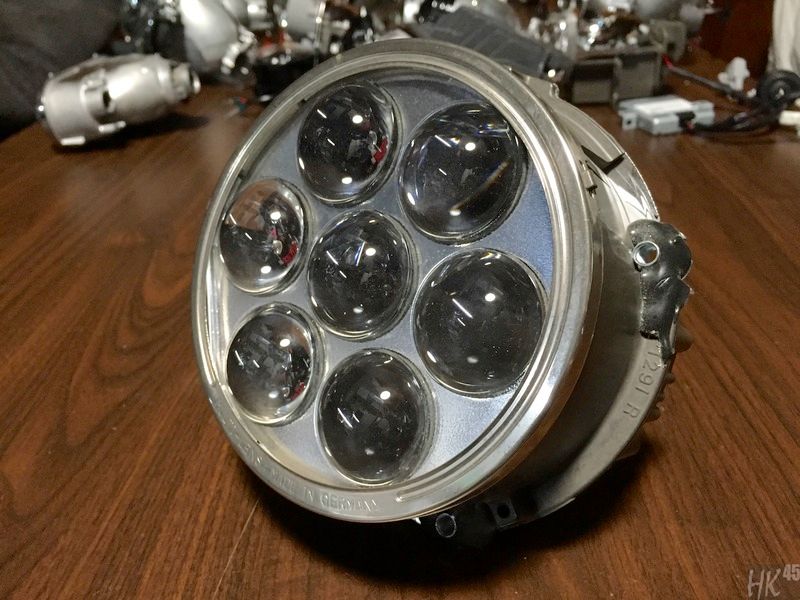

    Q45
    RX330 AFS

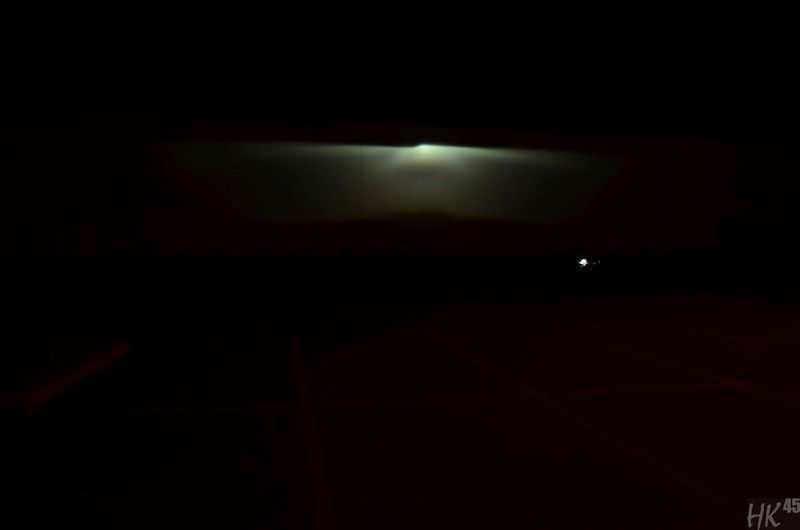

    RX350 Low Beam US Slope

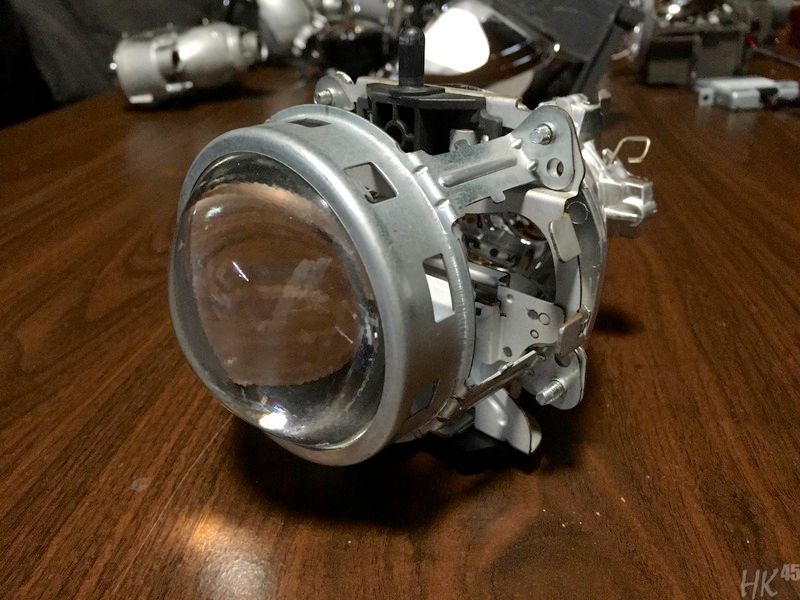

    RX350 BI-XENON EU Slope

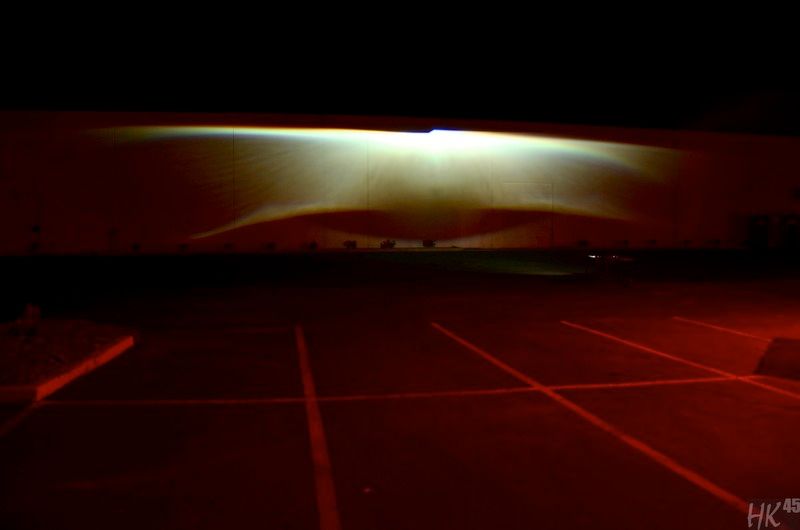

    S2000(modified and tuned by ImagioX1)
    Toyota Crown-Left(clear lens and tuned by Nuvolari)

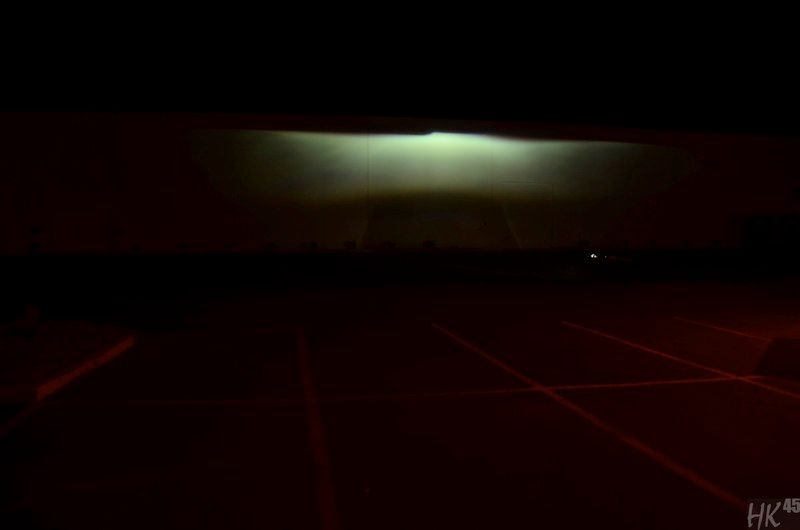

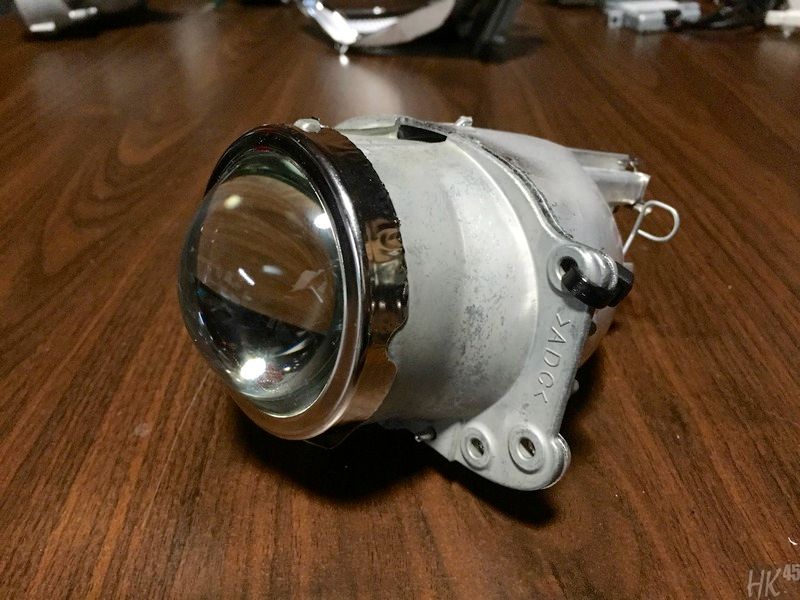

    TSX
    All projectors are OEM or out-of-box aftermarket unless specified



    ​Utilizing member i​leopard's app(yes you can click on me), you can now see every projector in a side-by-side comparison

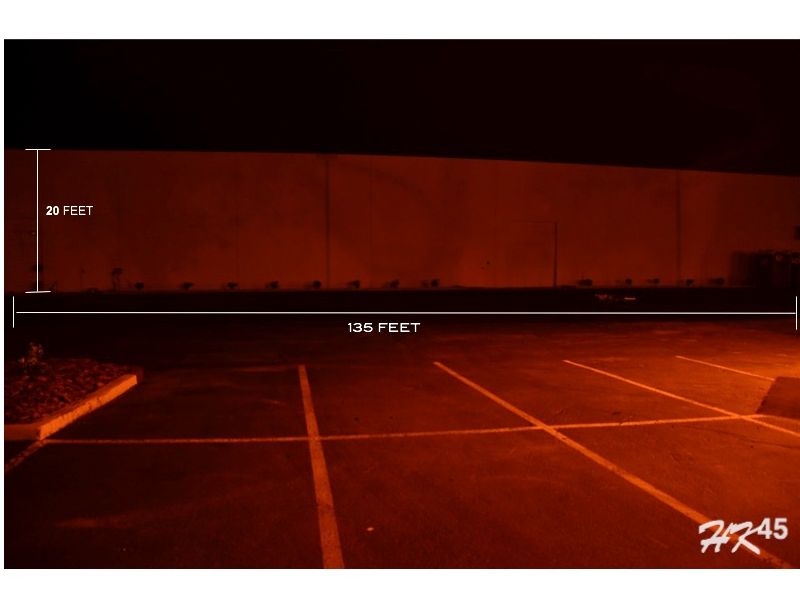

    All pics taken on tripod at same distance and same camera settings for each projector.

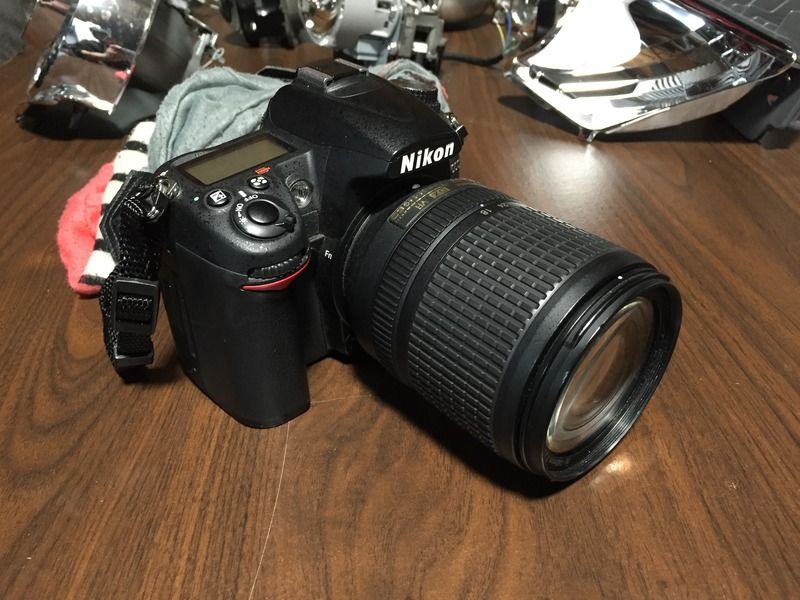

    The Camera - Nikon D7000


    Bulbs - Morimoto XB 5500K D2S, Morimoto XB 5500K H1, Morimoto XB H11 4500K - All Brand New

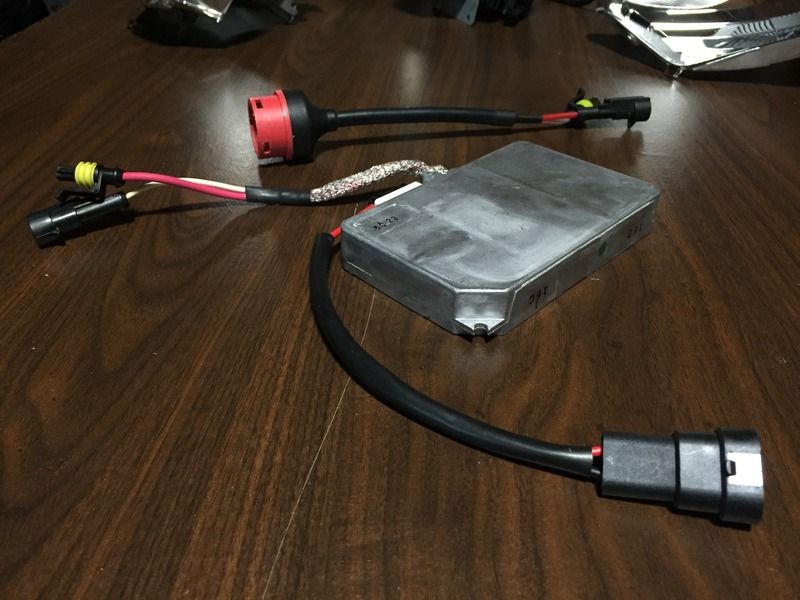

    Ballast - Denso Slim


    The Wall



    LET'S GET IT ON


























    NOTICE: THE MORIMOTO XB BULB THAT WAS USED IS BRAND NEW WITH 0 HOURS BREAK IN. THESE BULBS ARE KNOWN TO START OUT WITH A GREENISH TINT AND THEN SHIFT INTO THEIR PROPER TEMPERATURE. UNFORTUNATELY, I DID NOT HAVE THE TIME NOR RESOURCES TO GET THEM TO THEIR PROPER TEMPERATURE. In other words, the output will have a greenish tint to them because of them being brand new. Not because they were bad bulbs or being underpowered. So get over it.

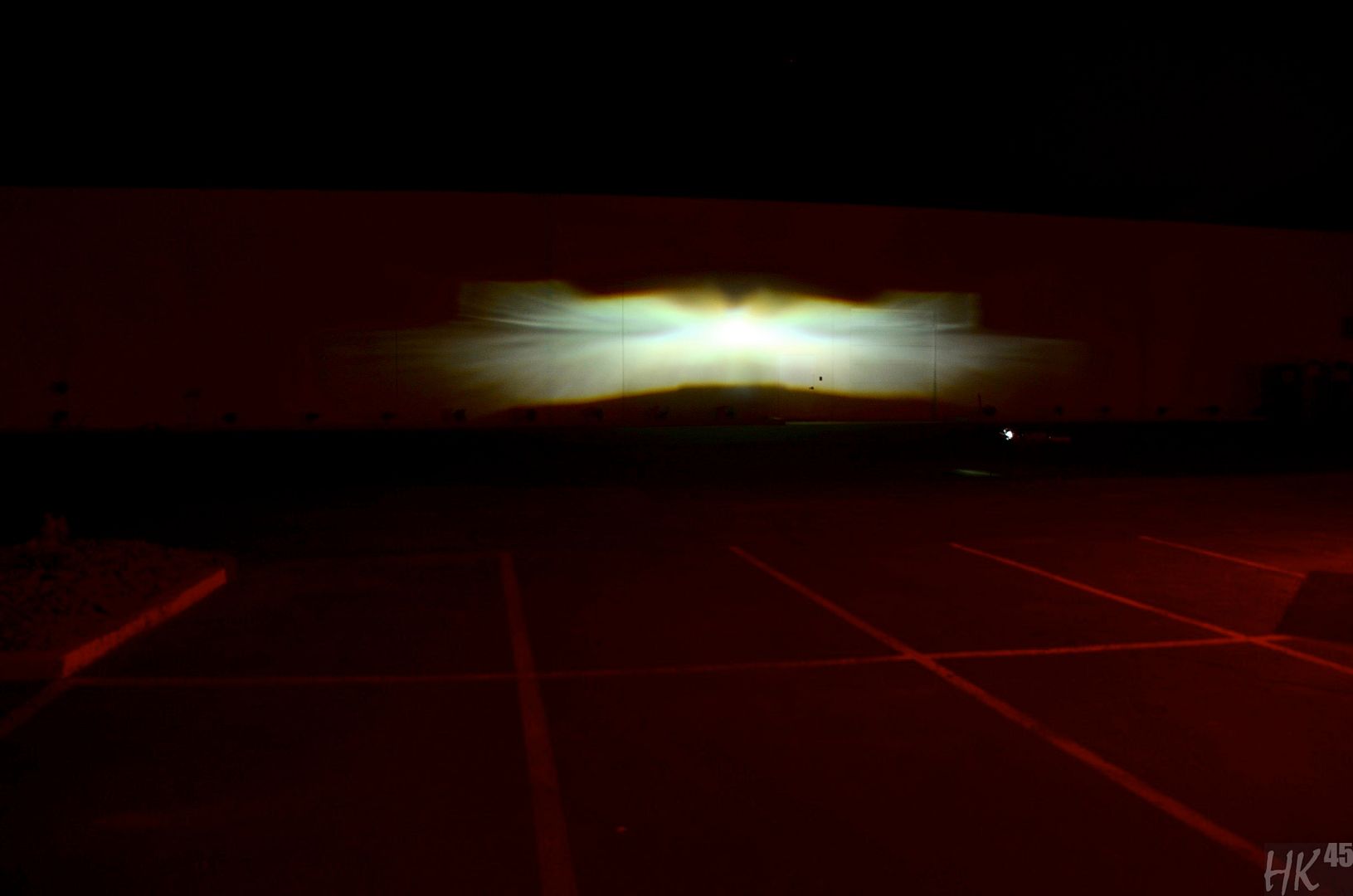

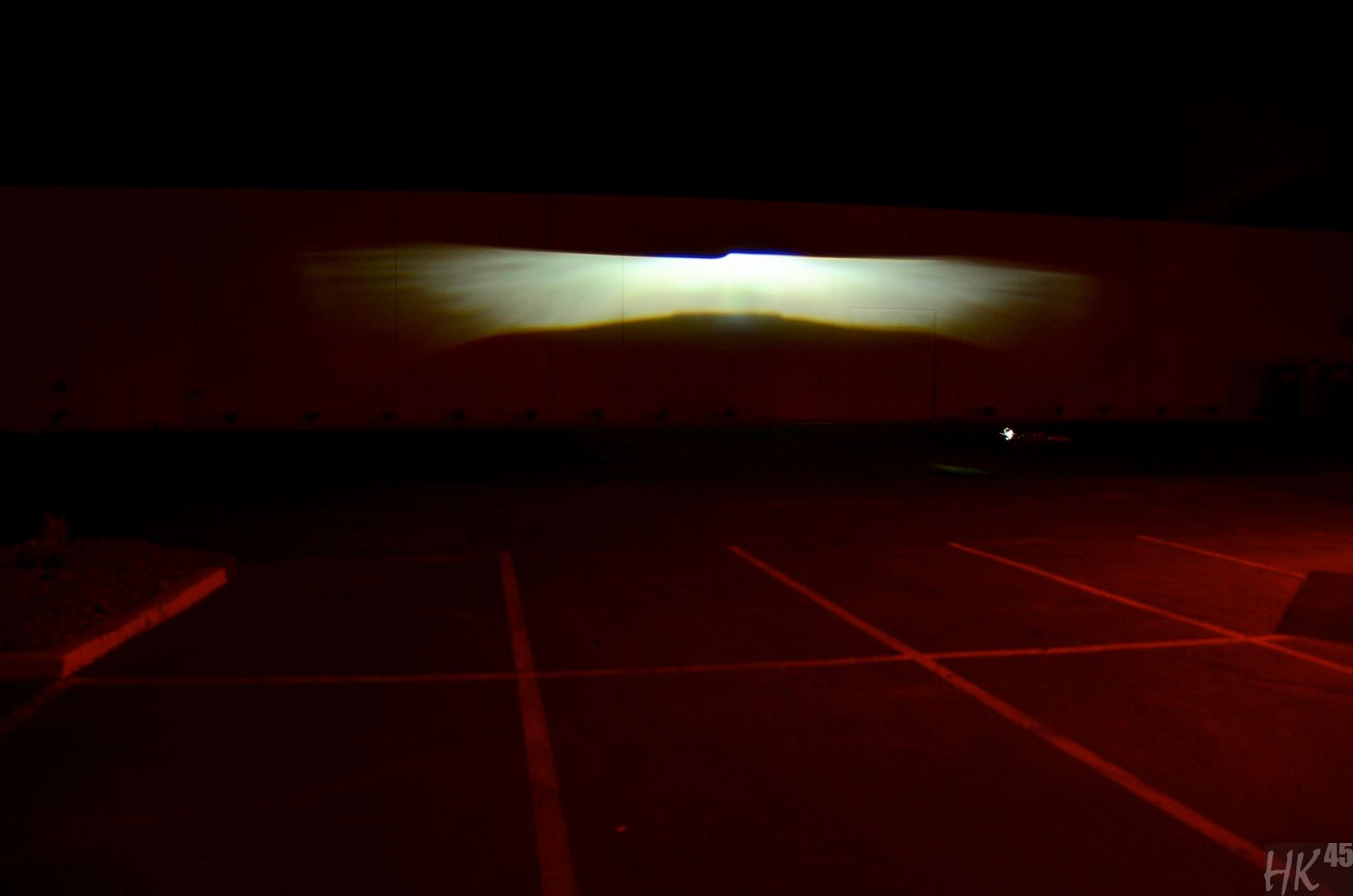

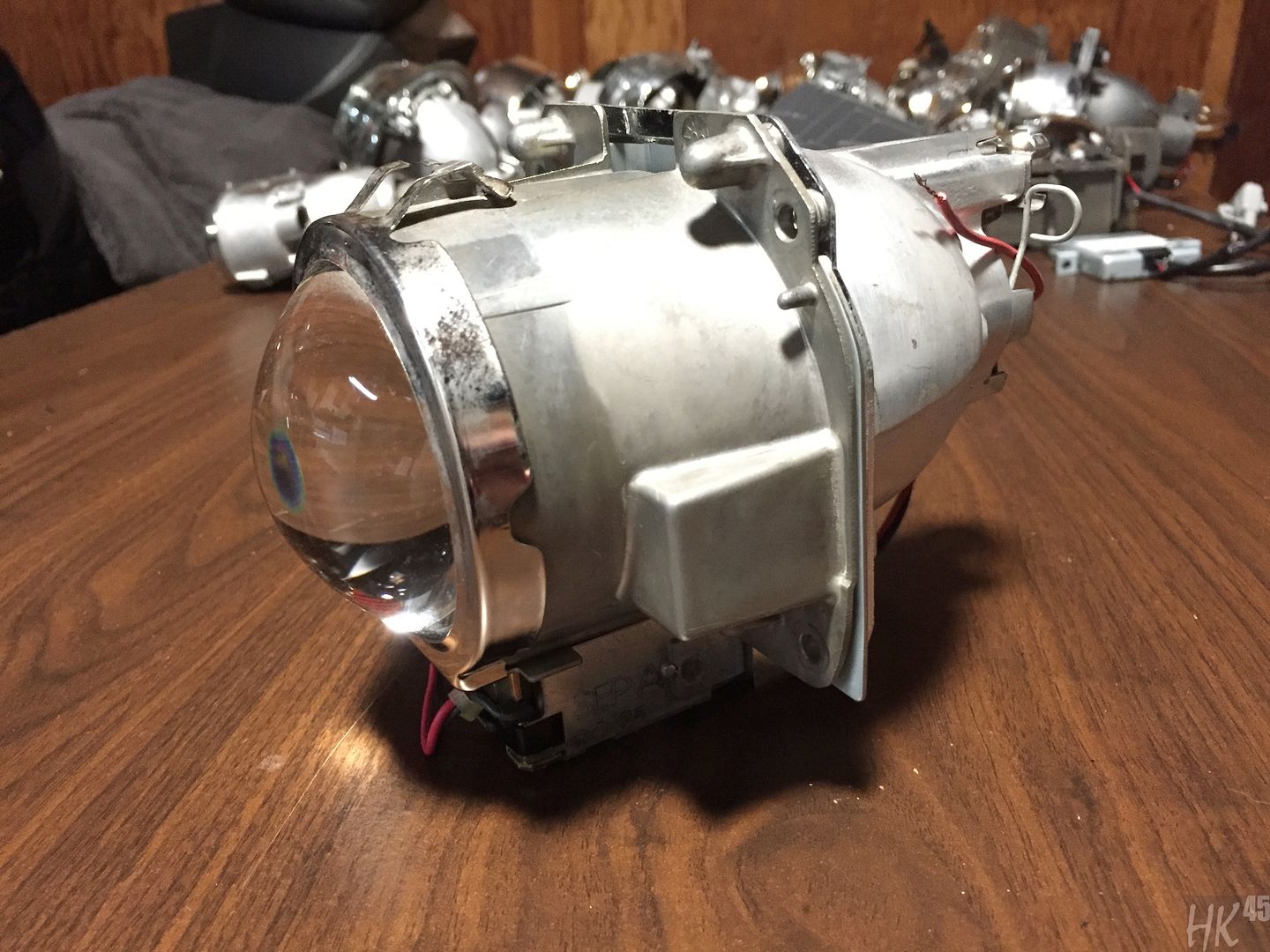

    3G TL (MODIFIED AND TUNED BY IMAGIOX1)

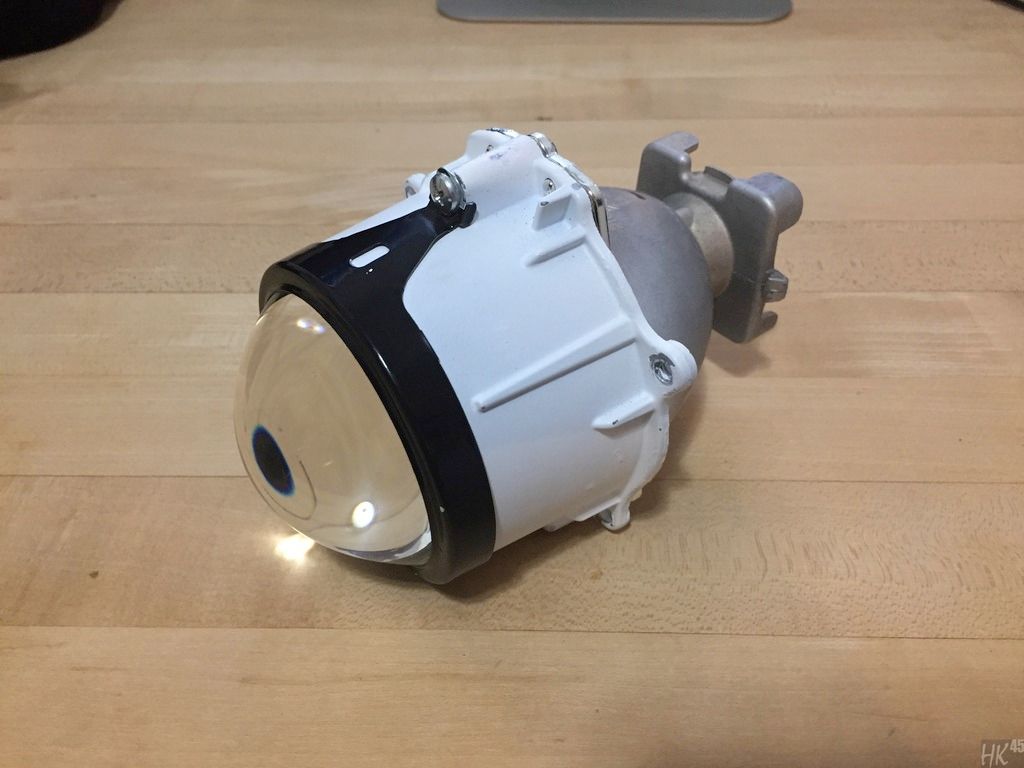

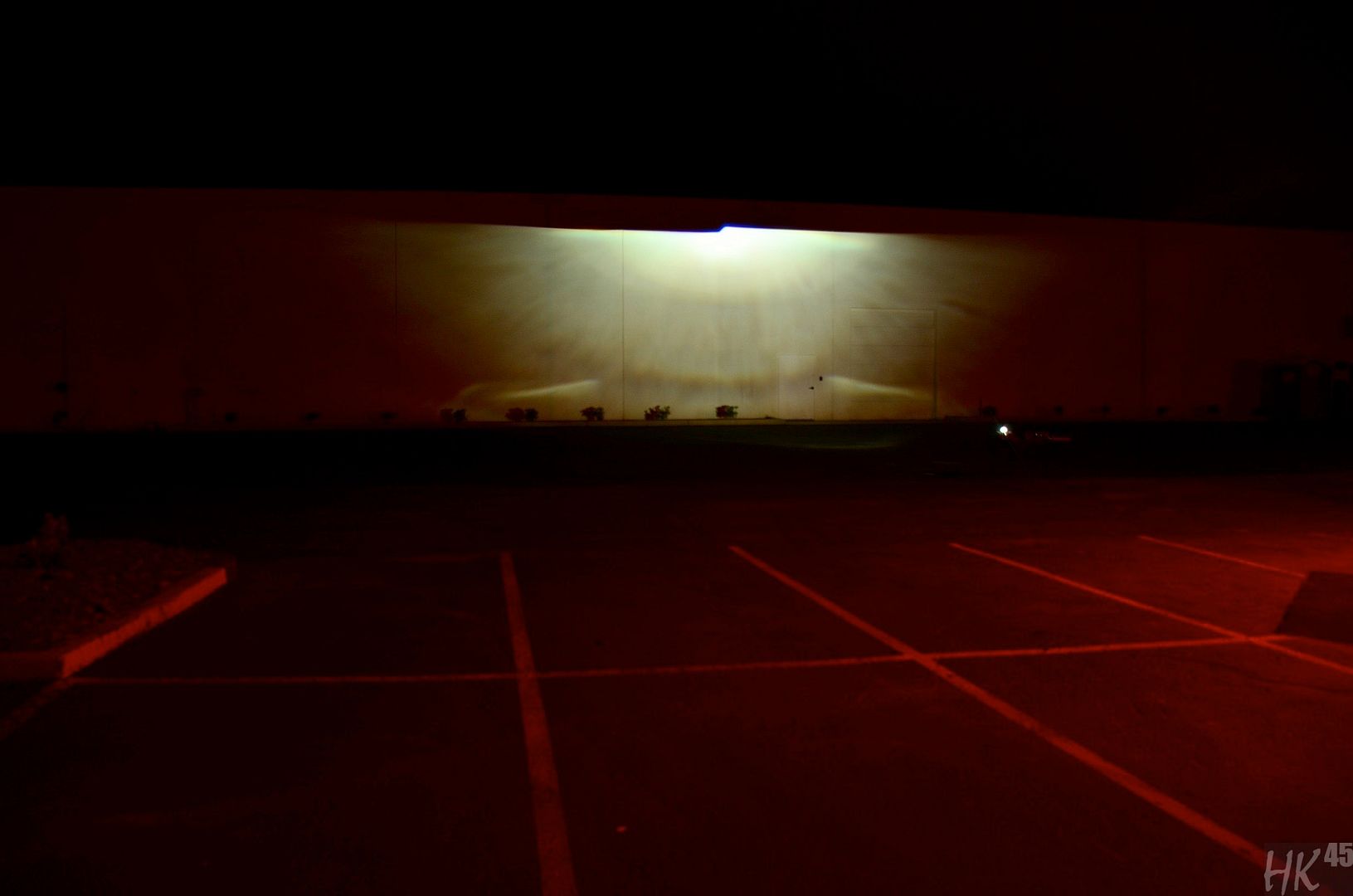

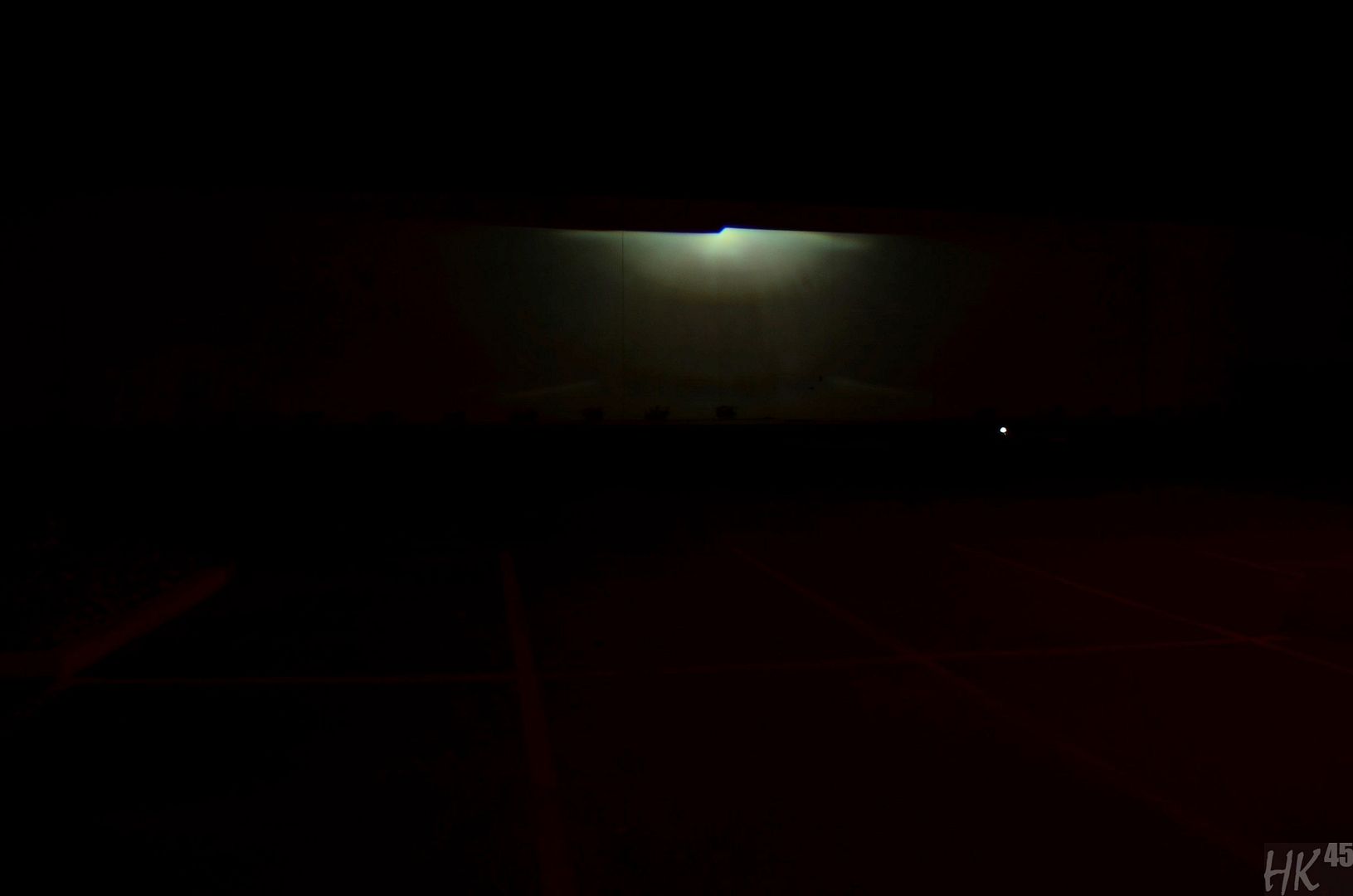

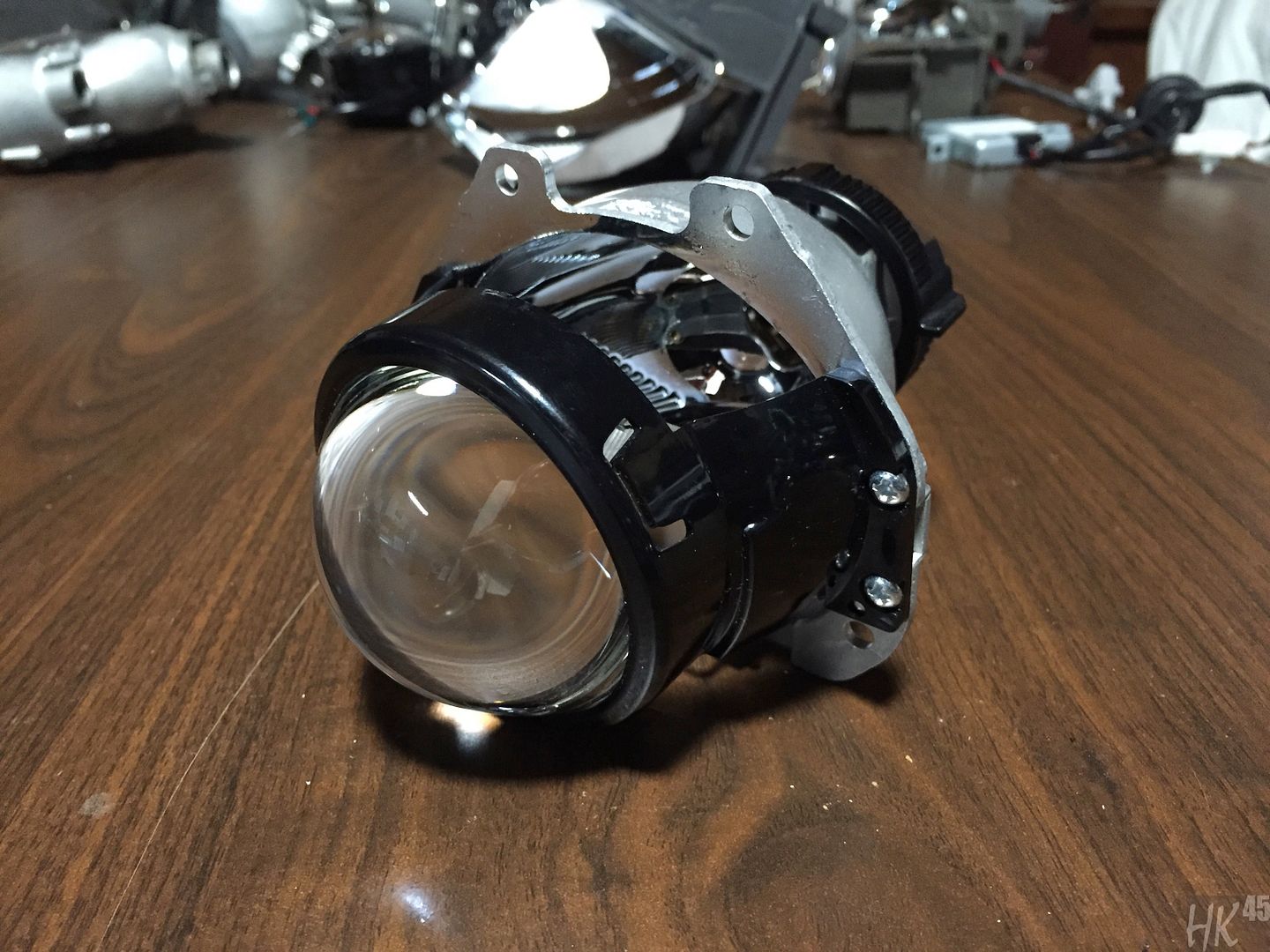

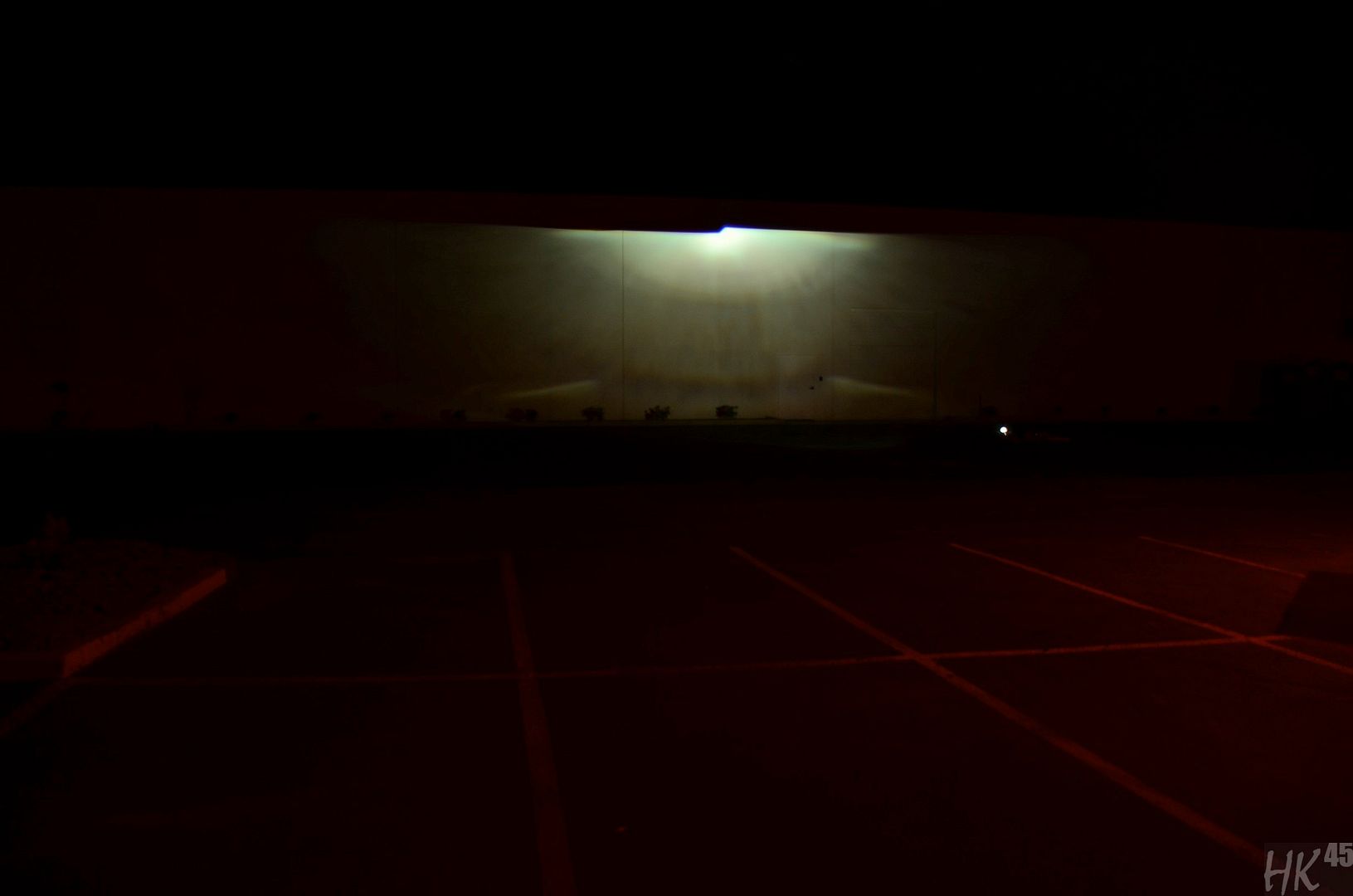

    4G TL REPLICA







    OOPSIE! FORGOT THE HIGH. BUT IT IS IDENTICAL TO THE MD2S HIGH BEAM SINCE THE SHIELD/SOLENOID IS THE SAME

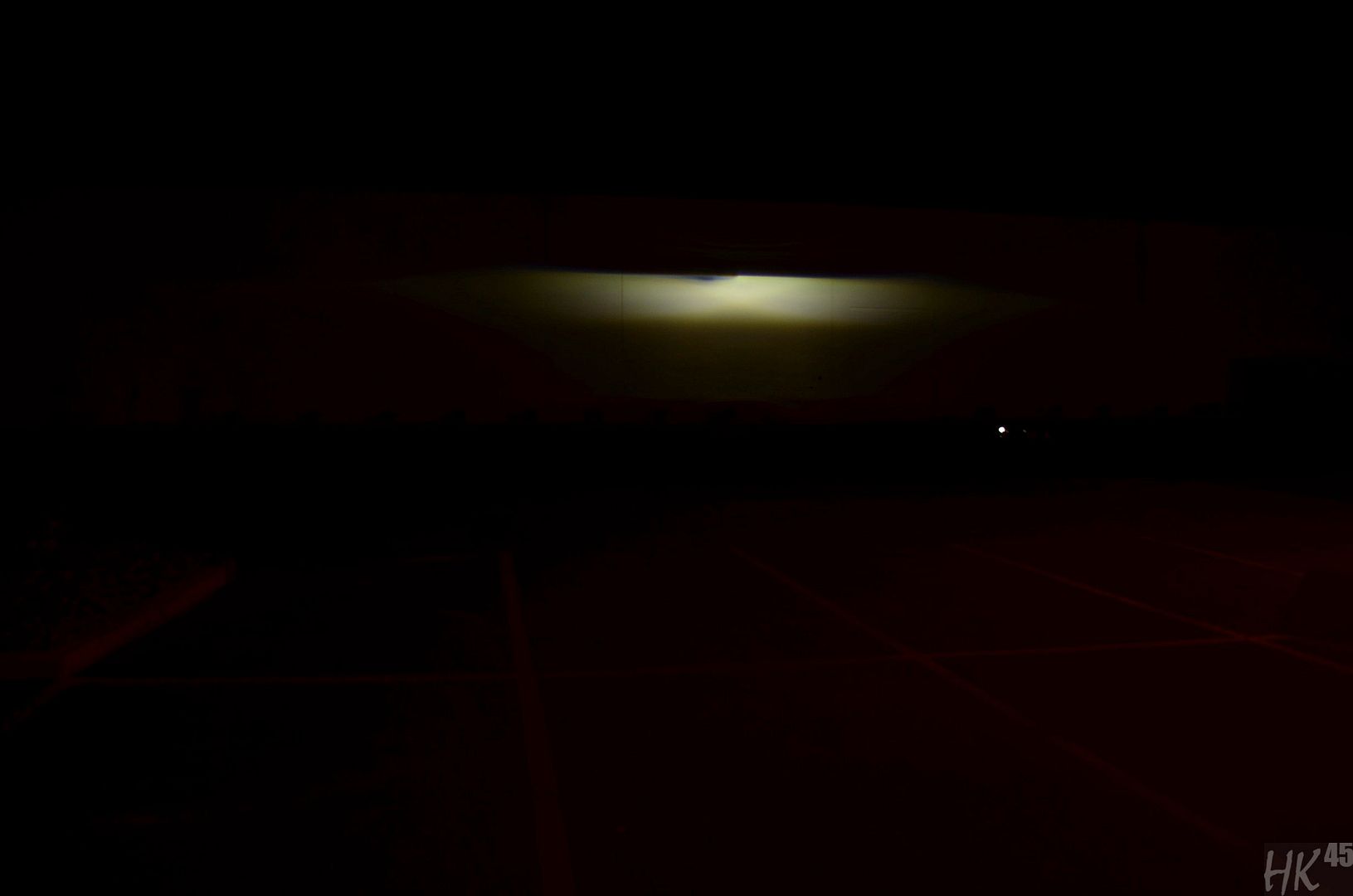

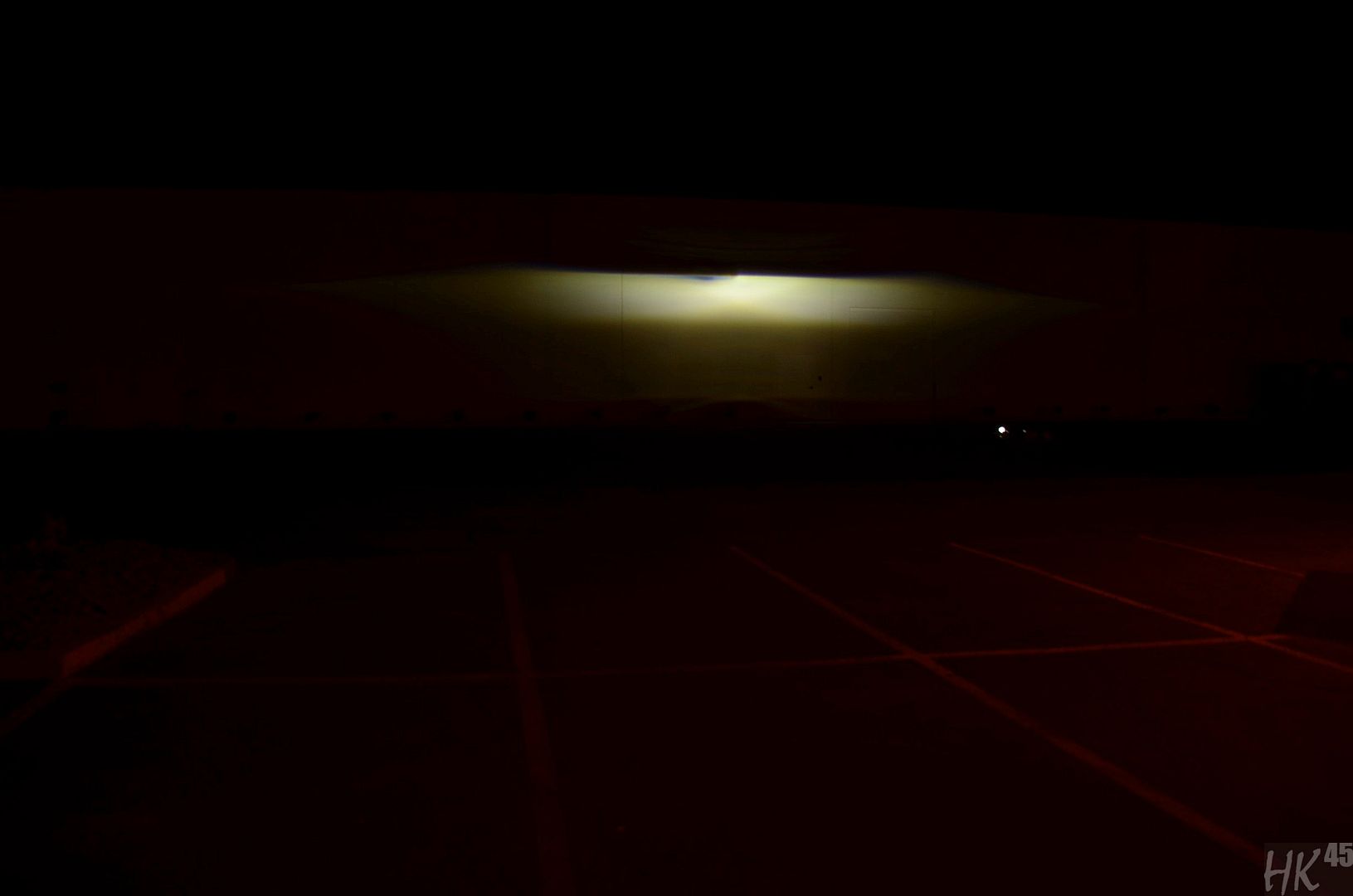

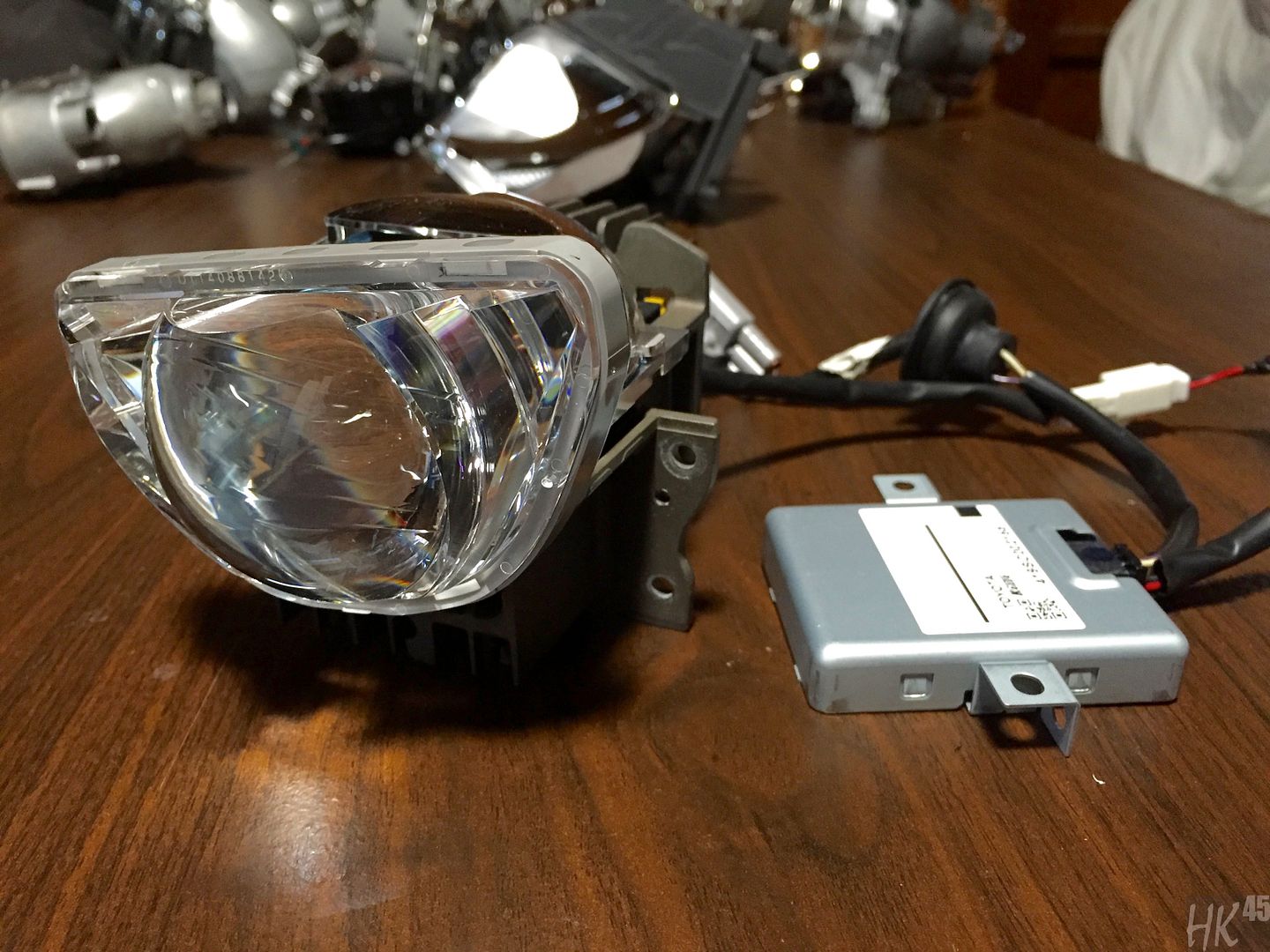

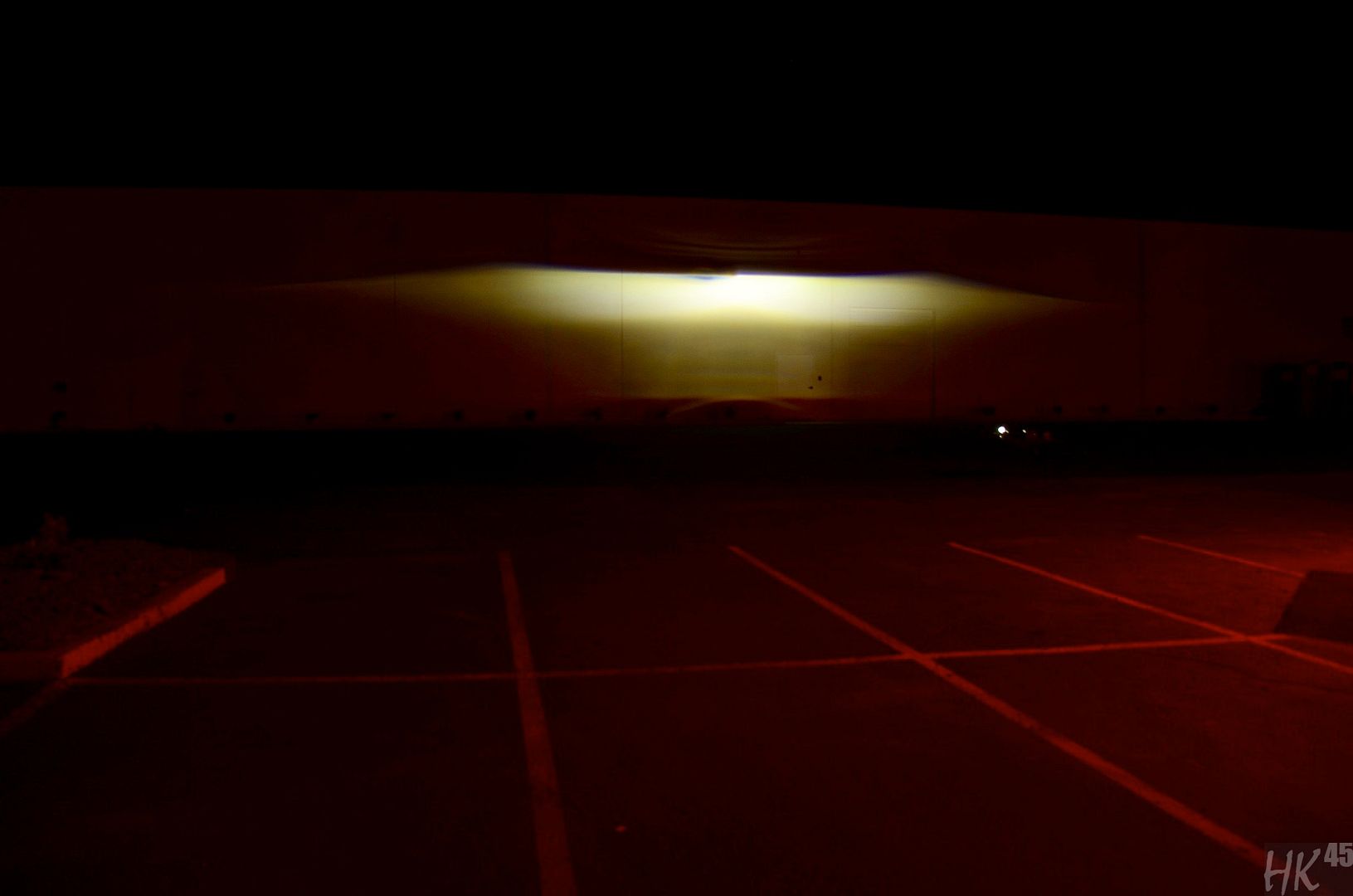

    COROLLA LED

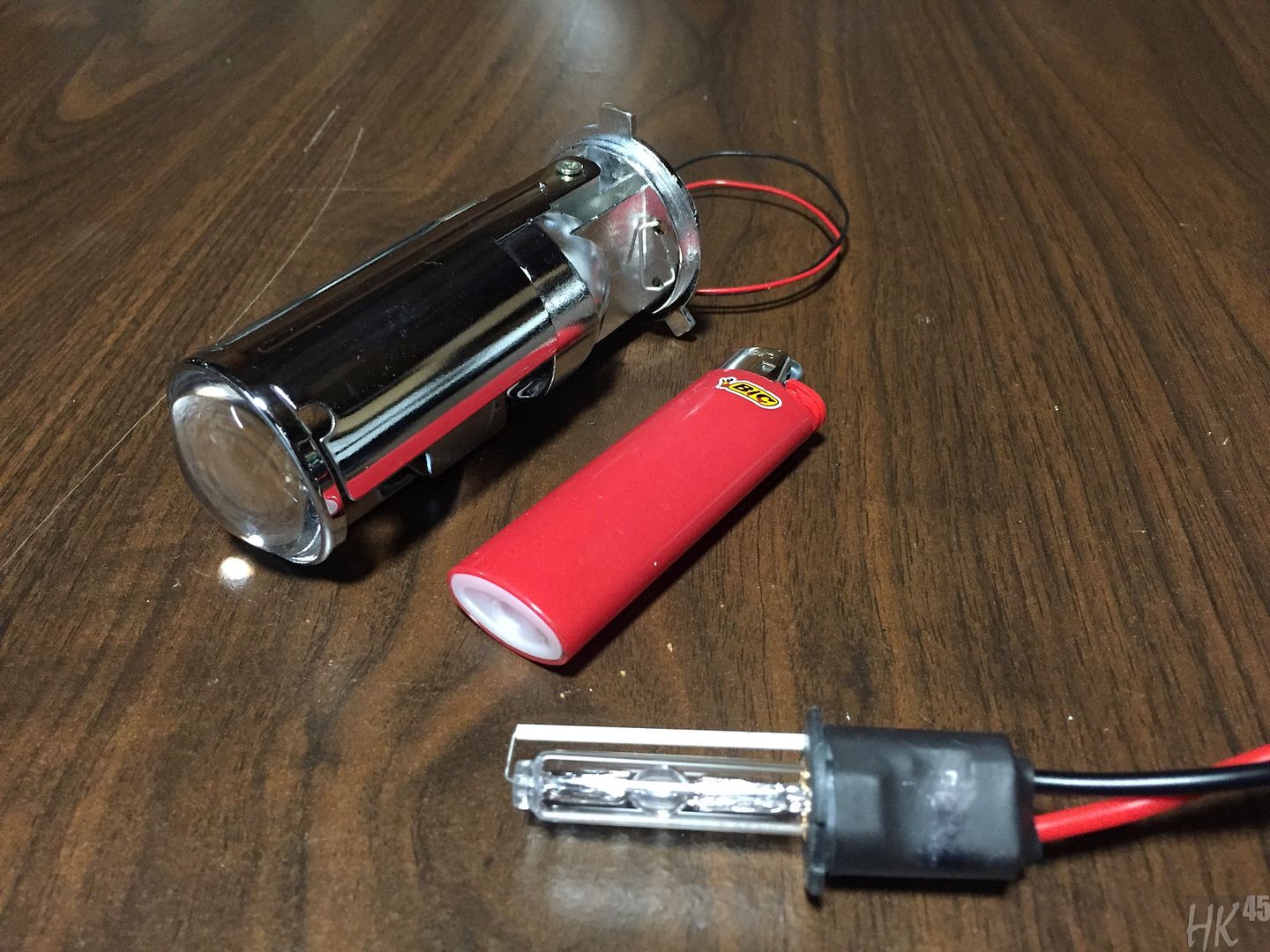

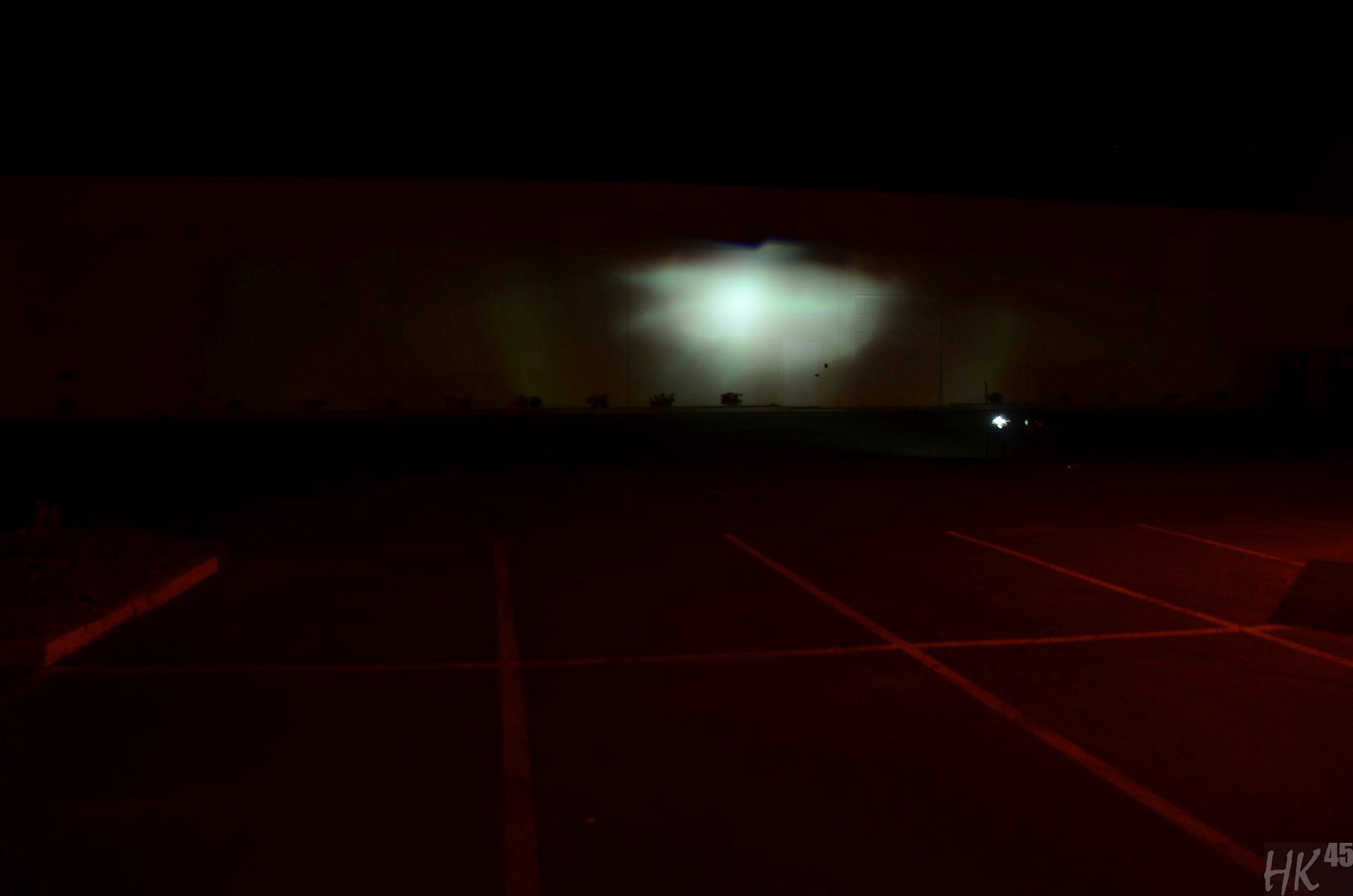

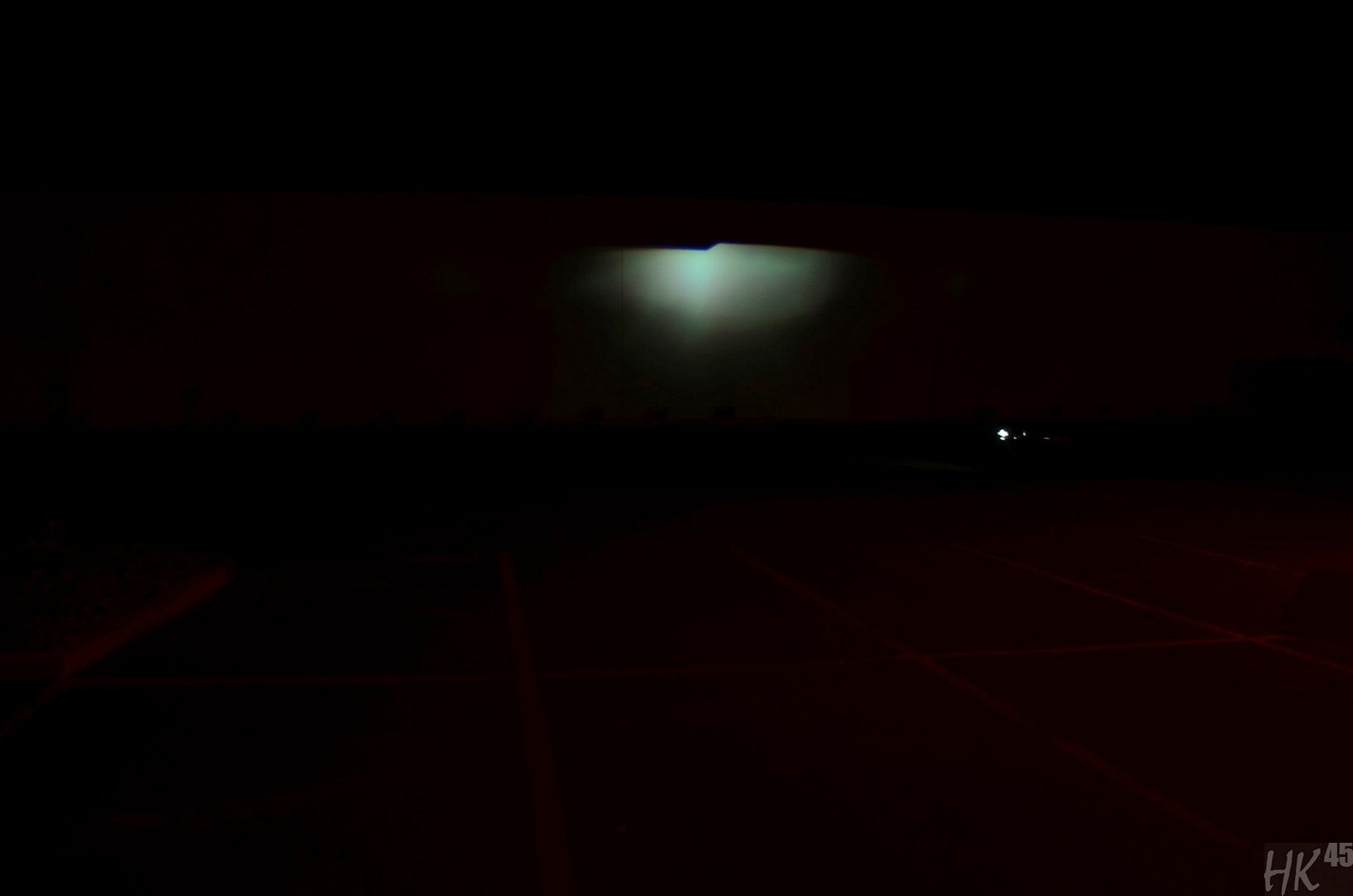

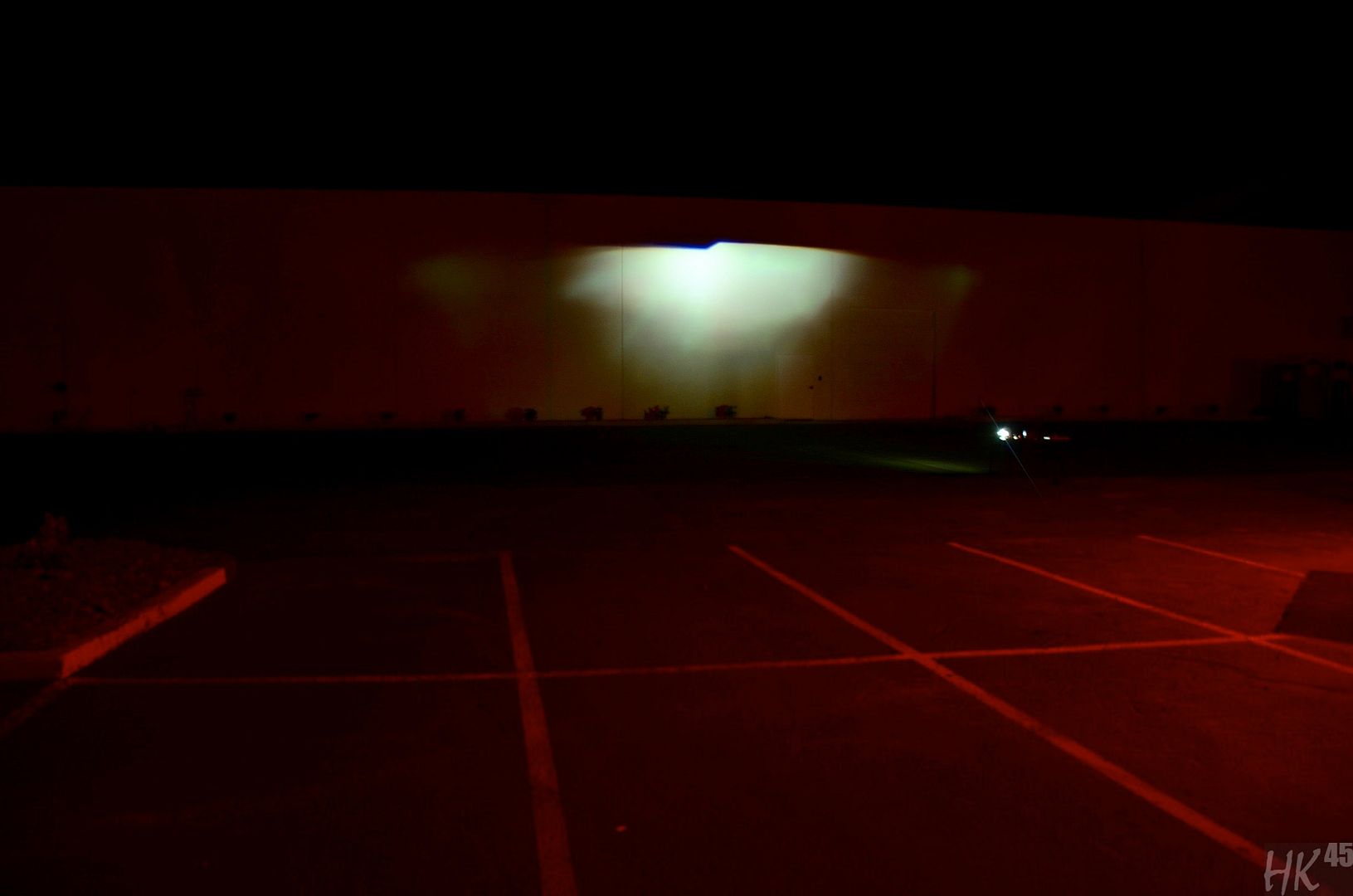

    Chinese H4 MINI PROJECTOR

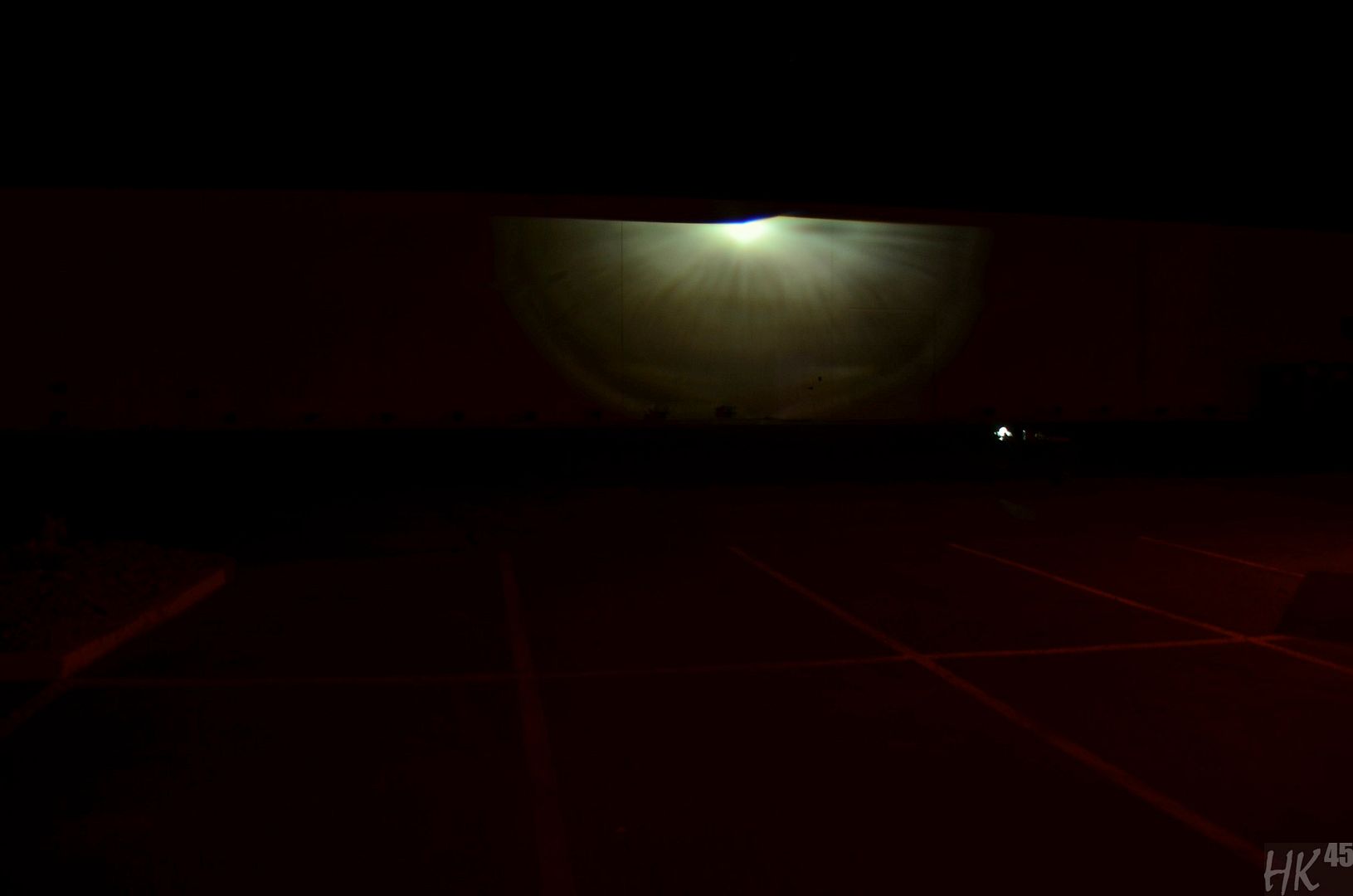

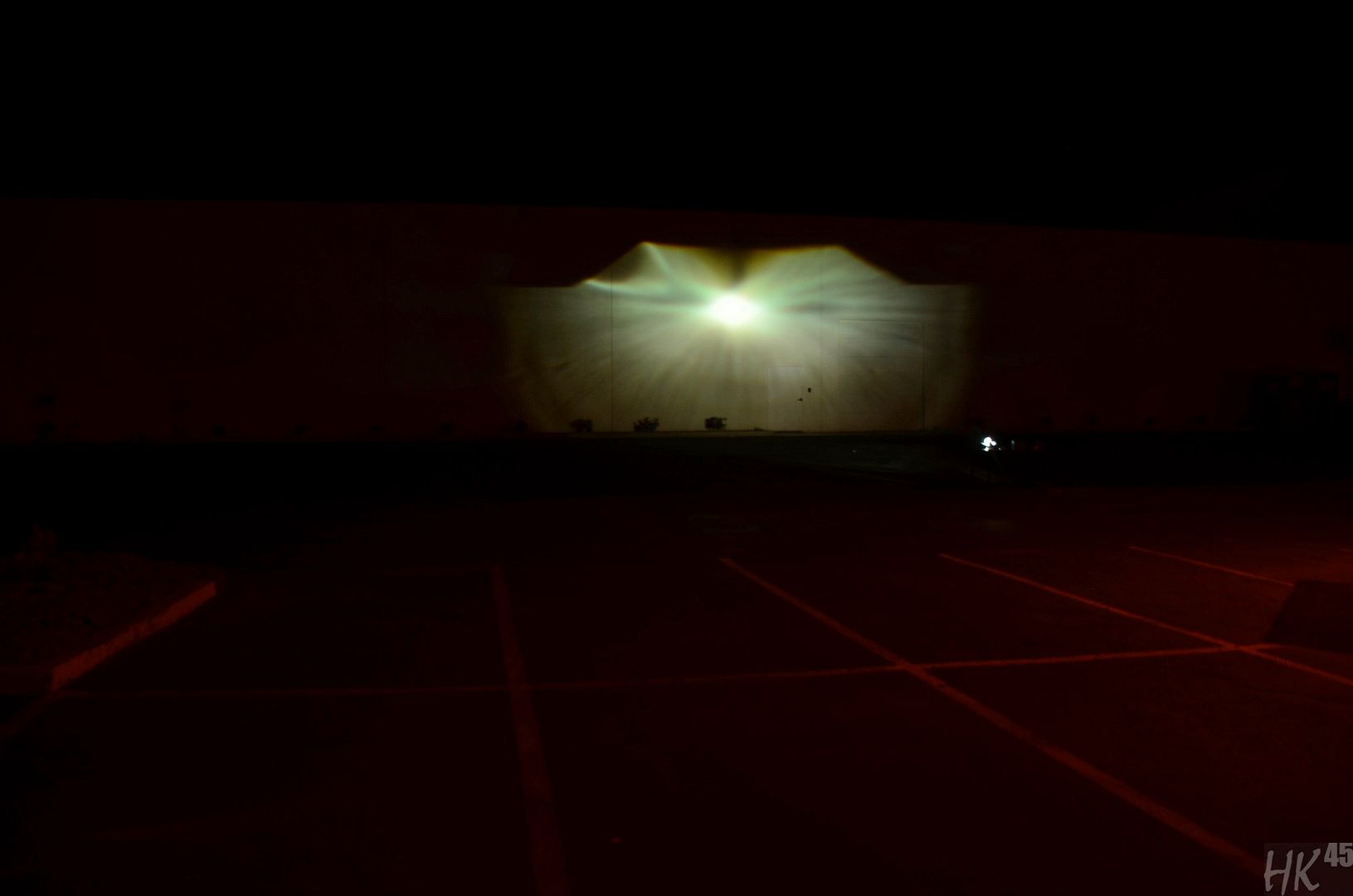

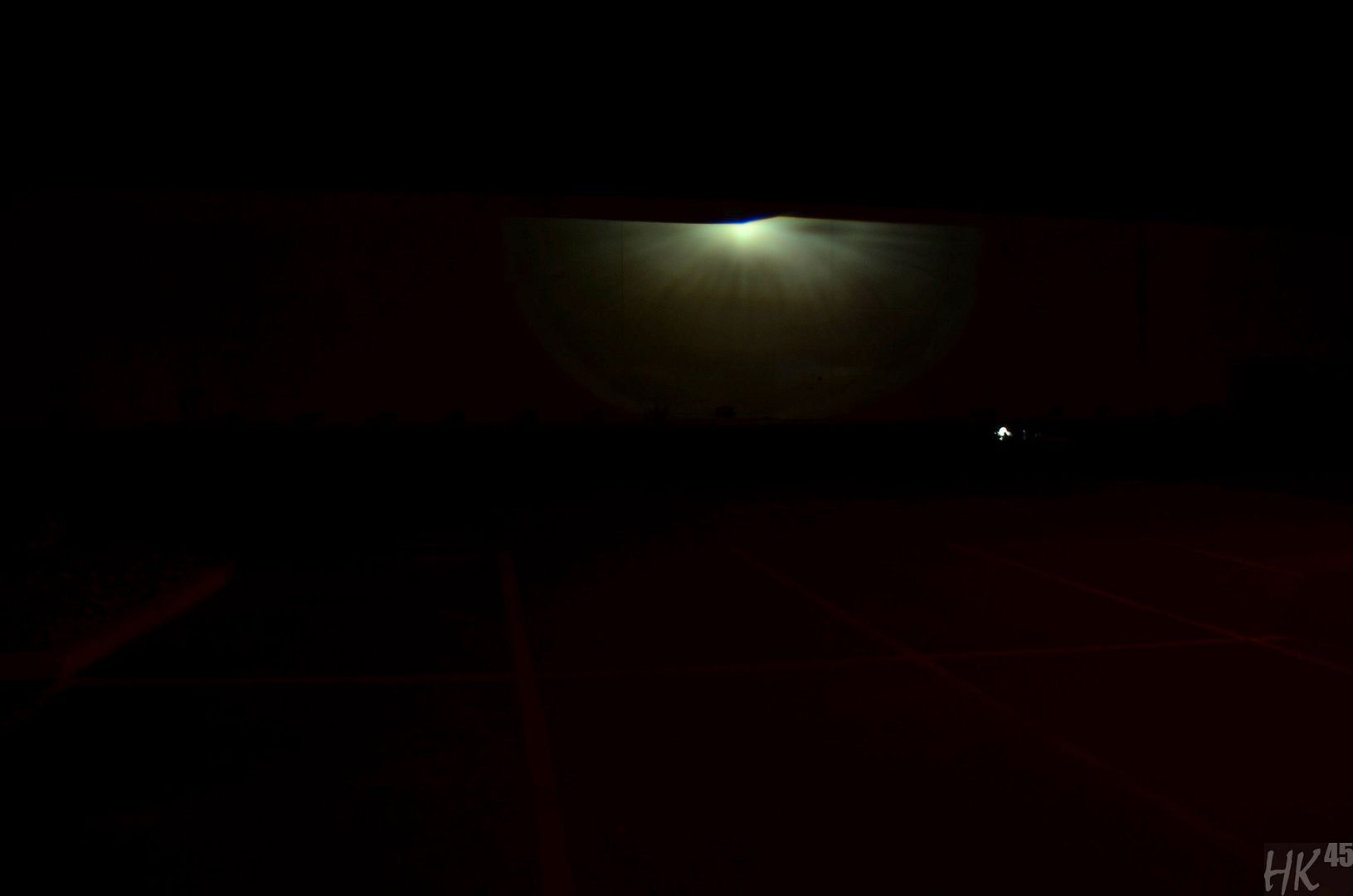

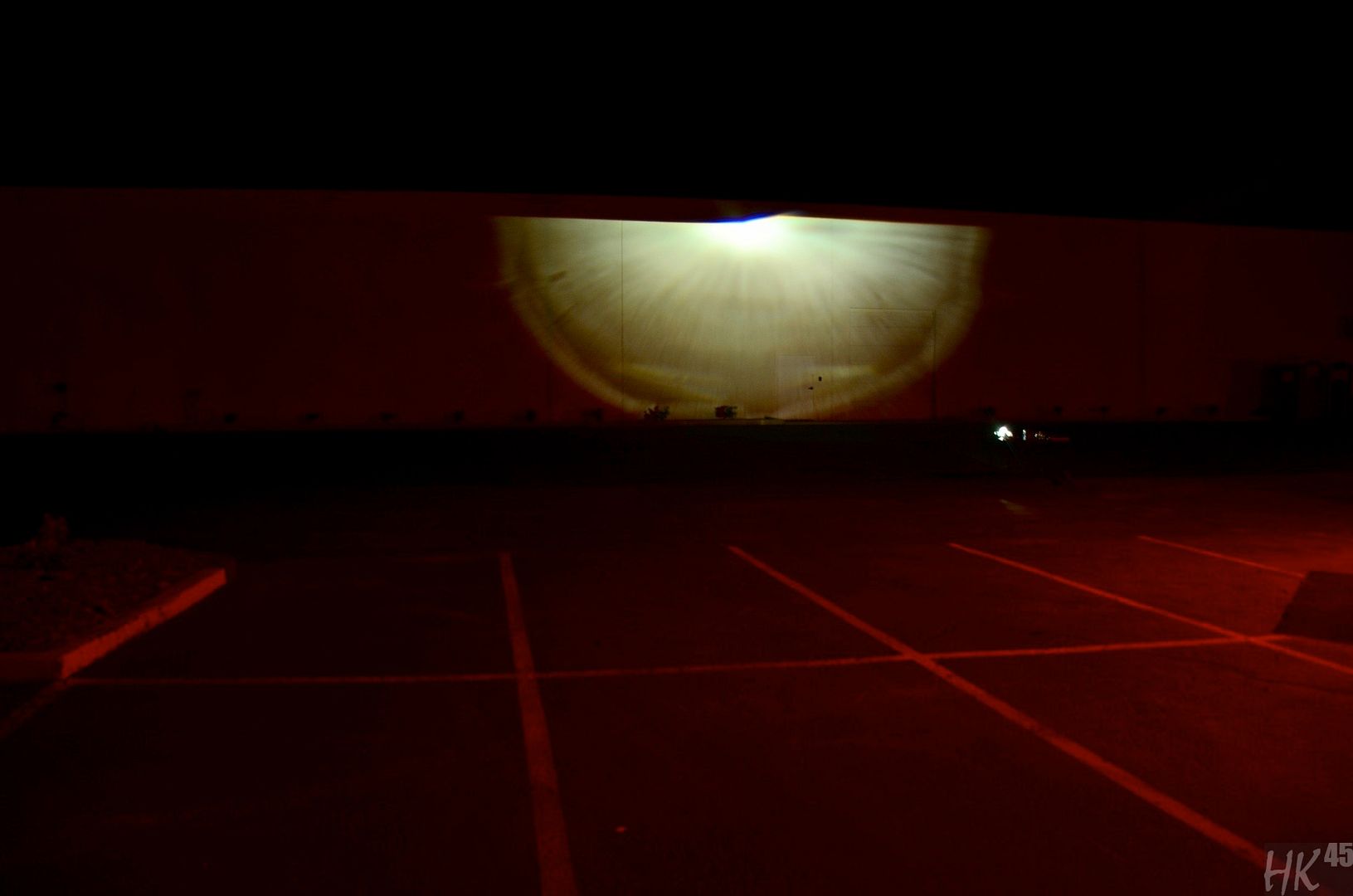

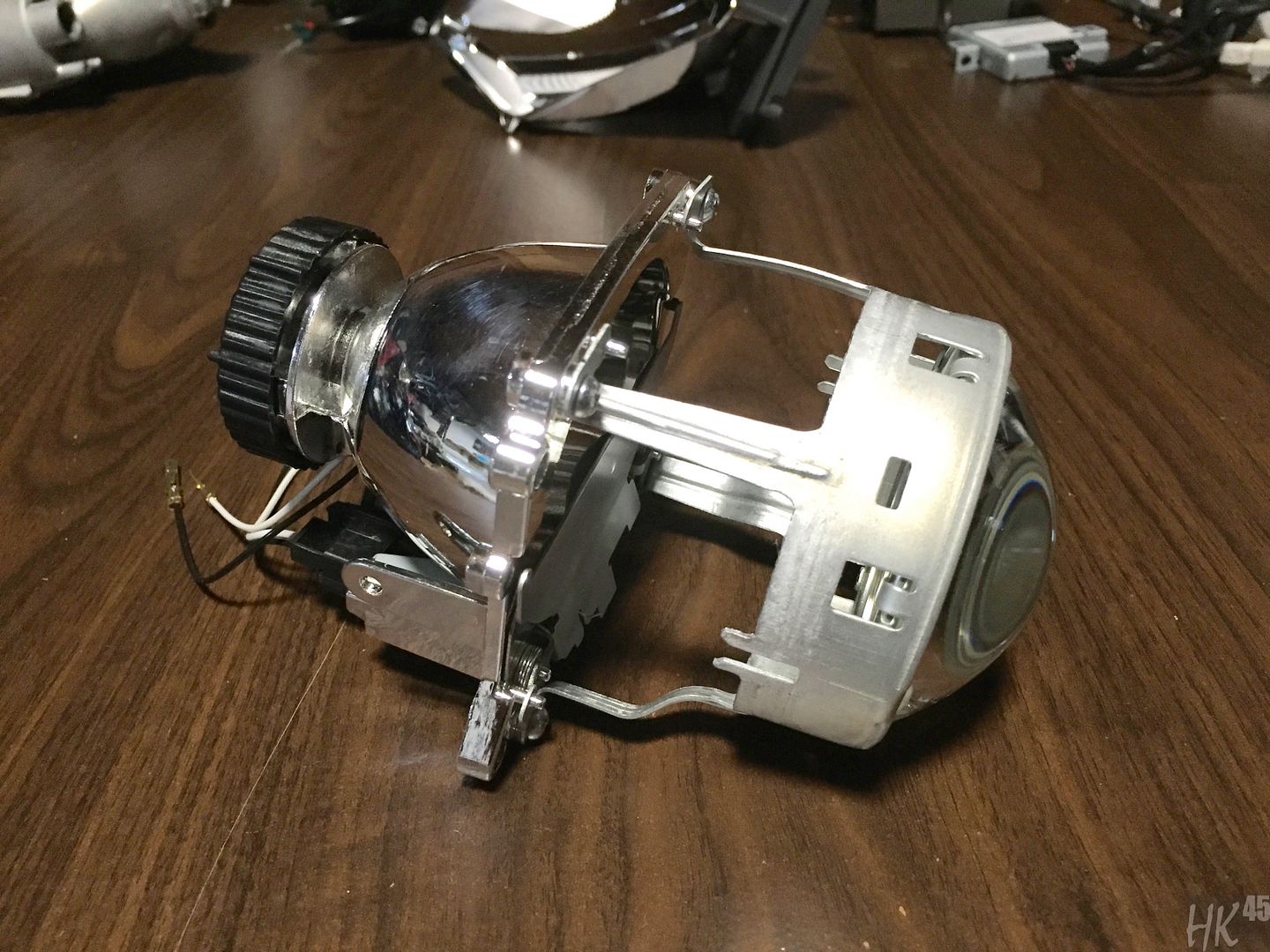

    E46 Replica

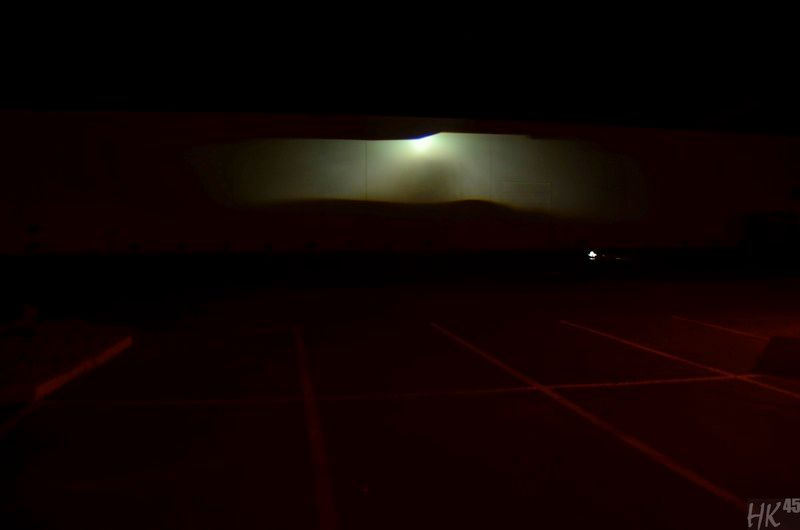

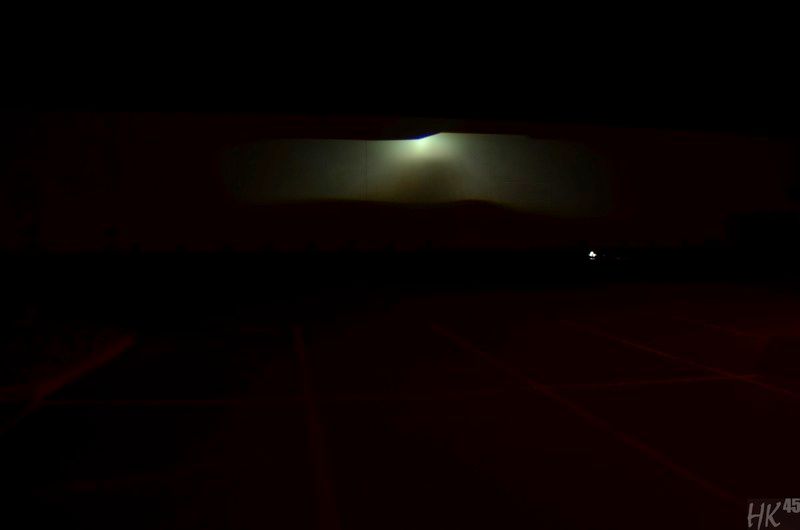

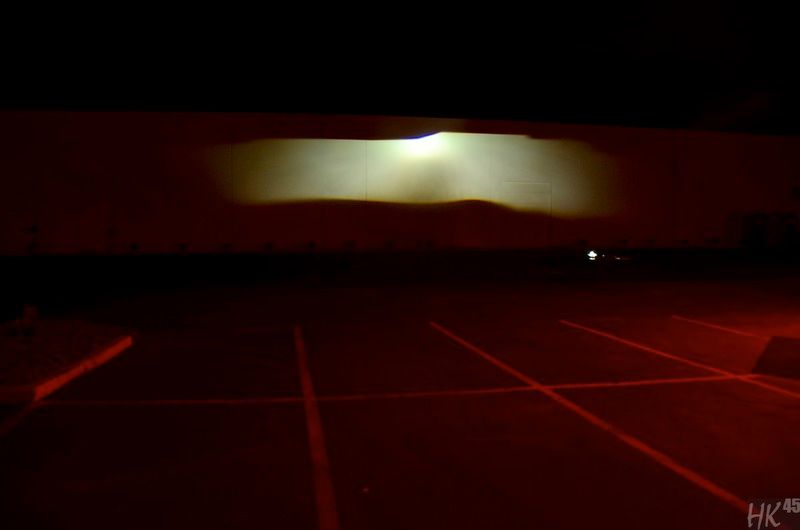

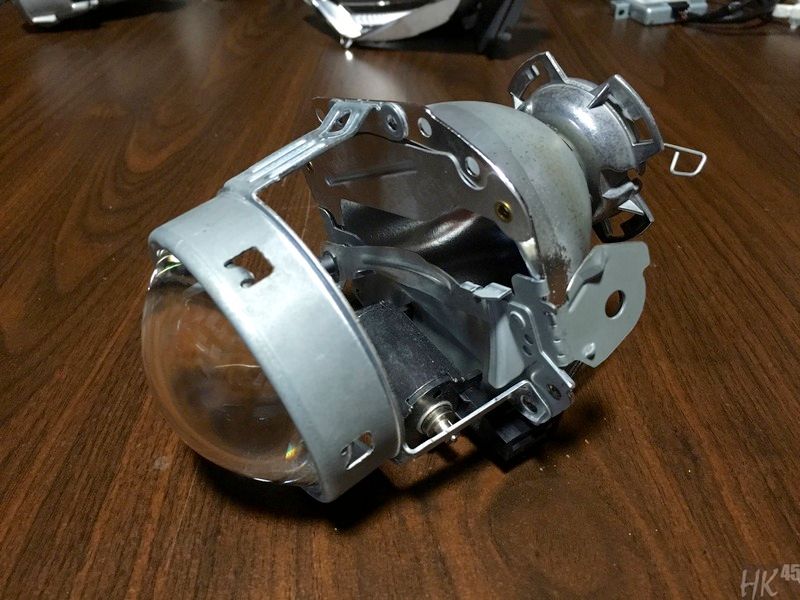

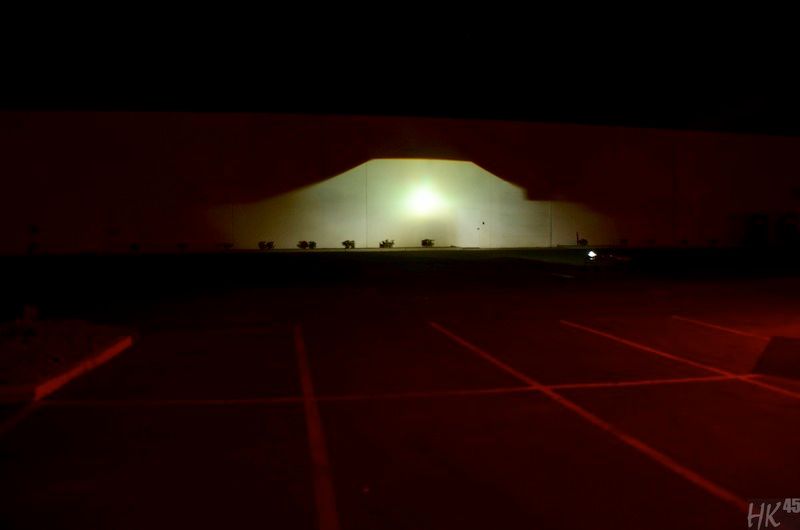

    E55(clear lens)

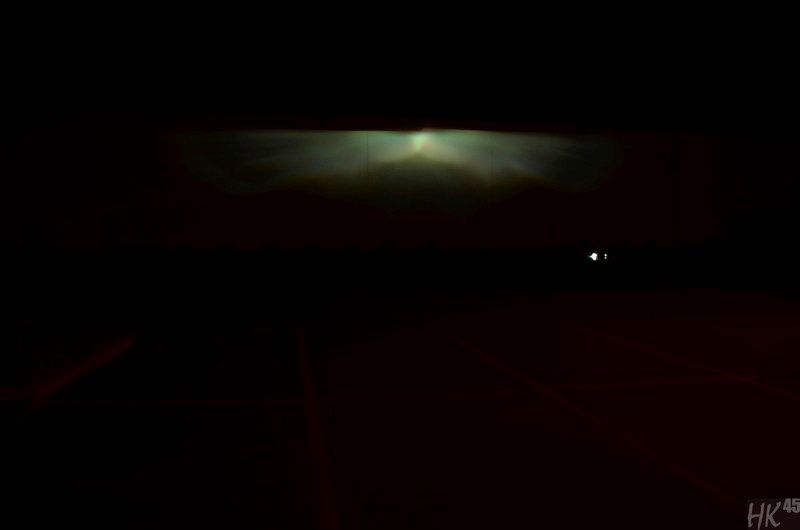

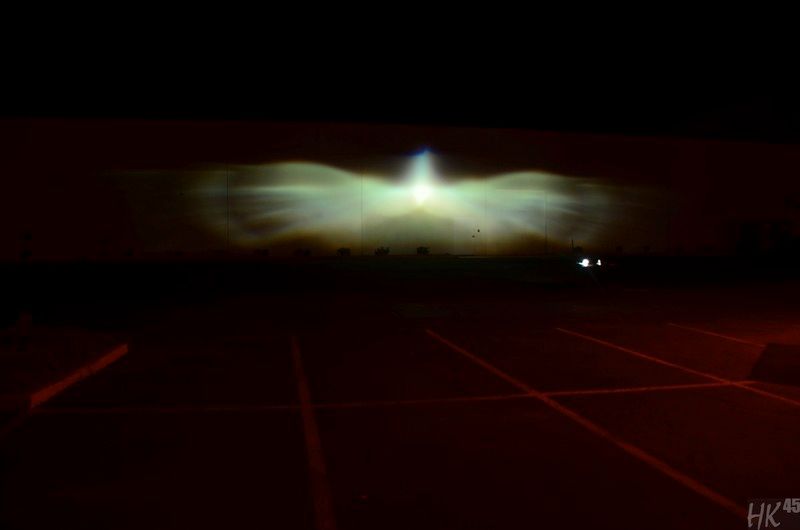

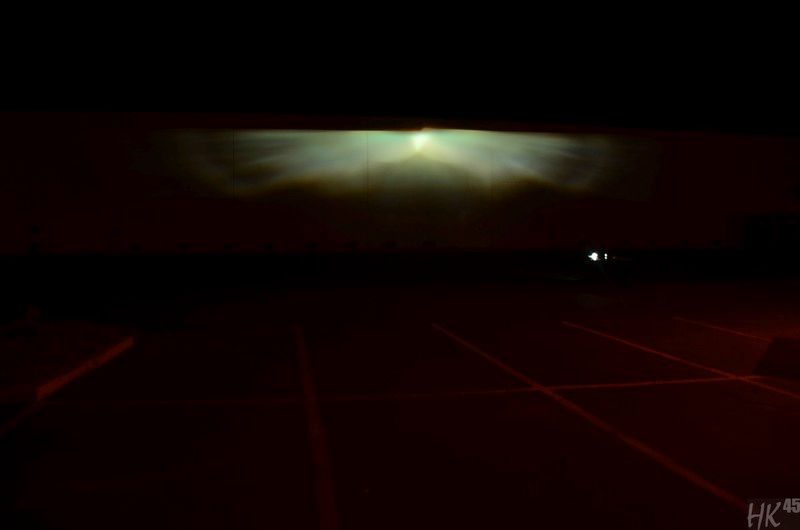

    FX35

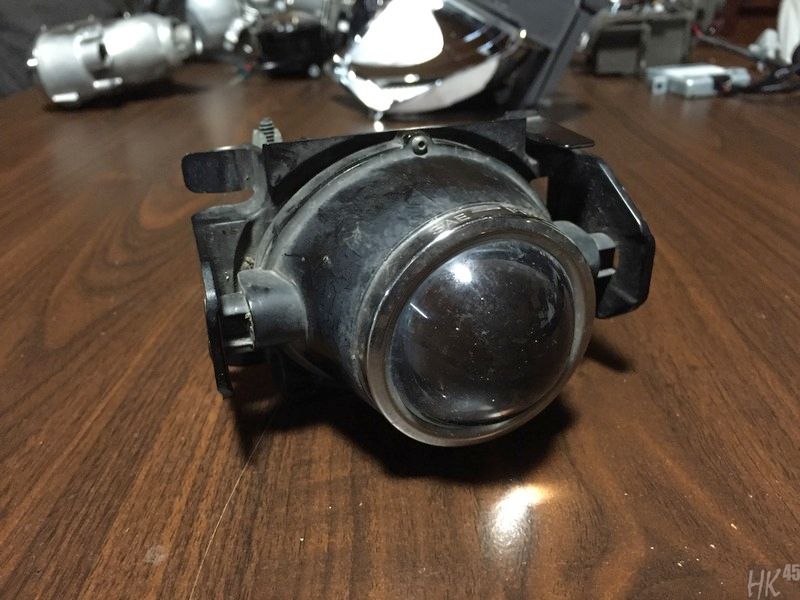

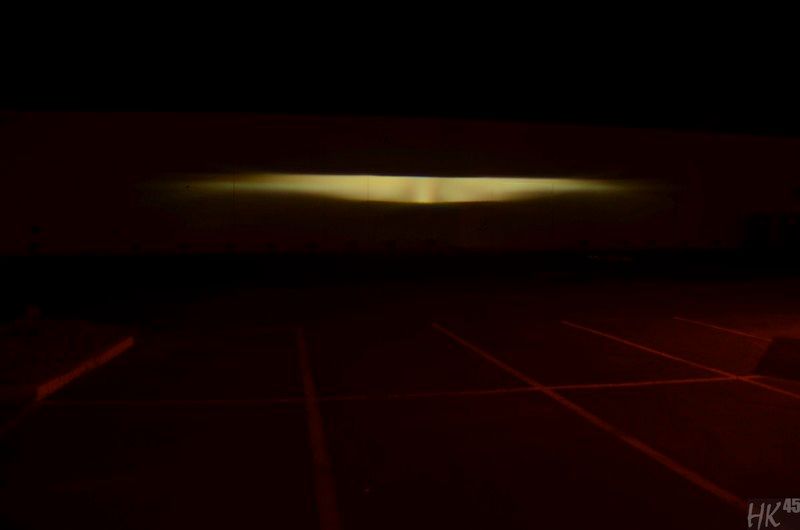

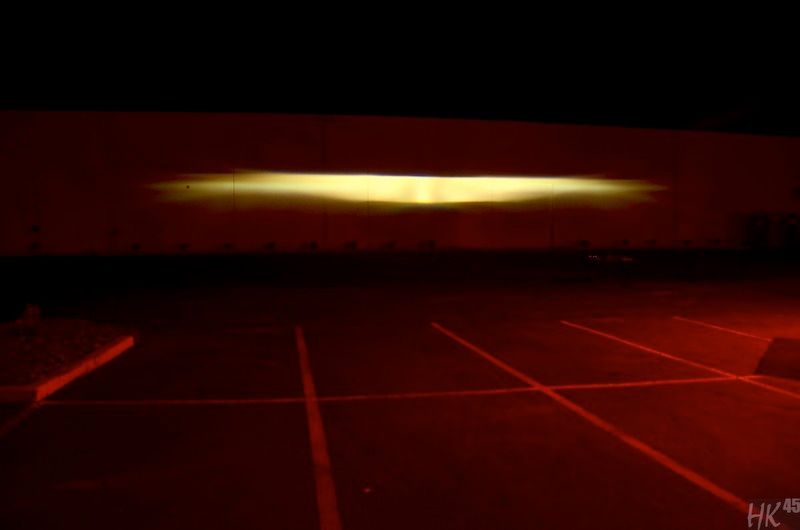

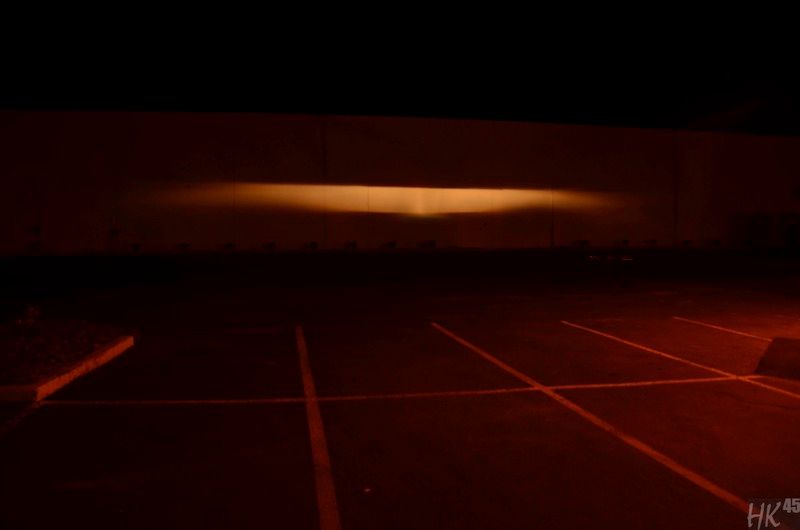

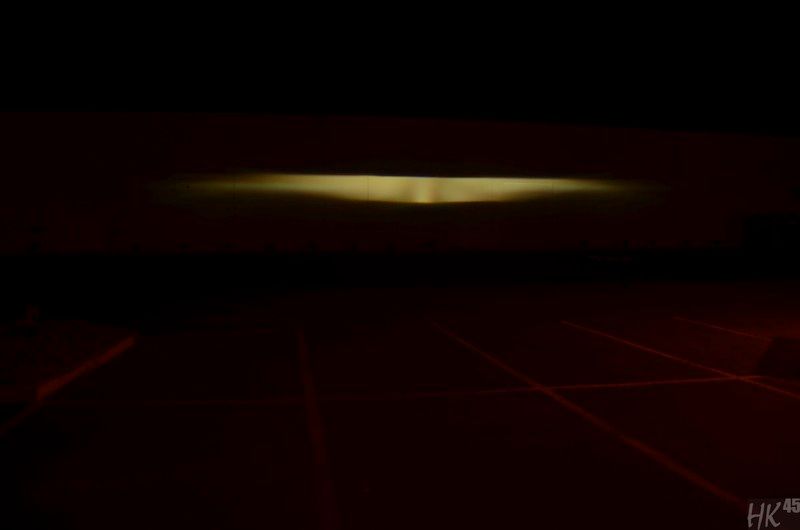

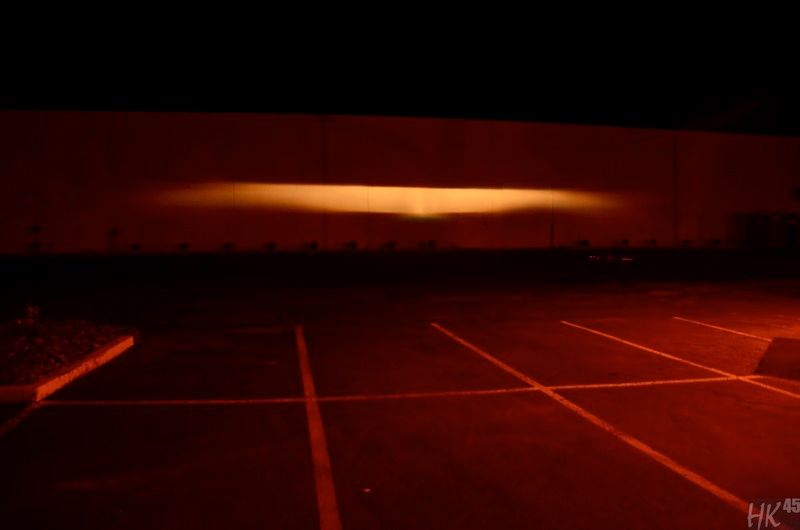

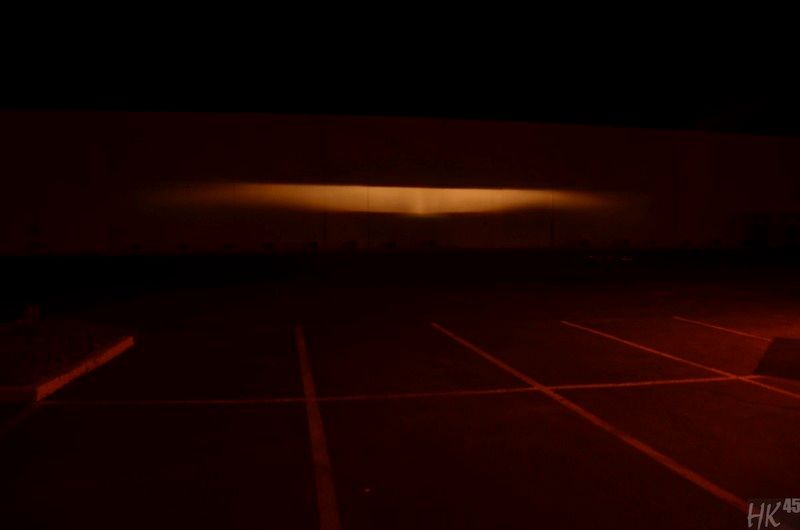

    FUSION FOG - HALOGEN/HID

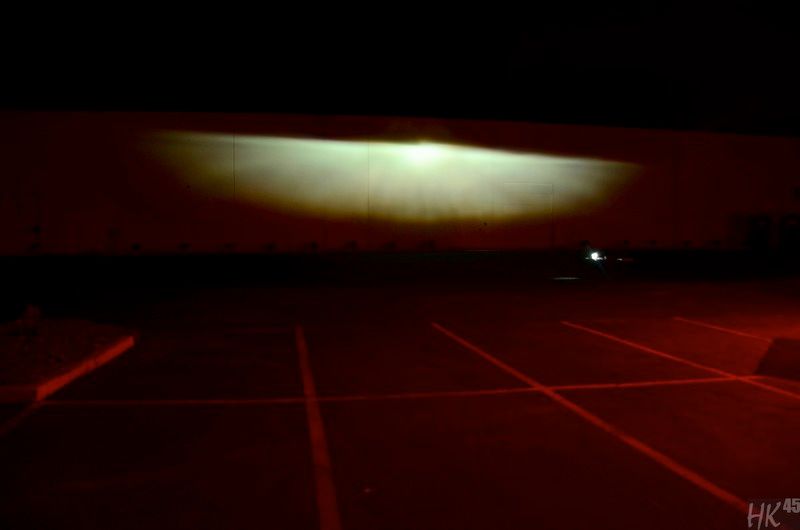

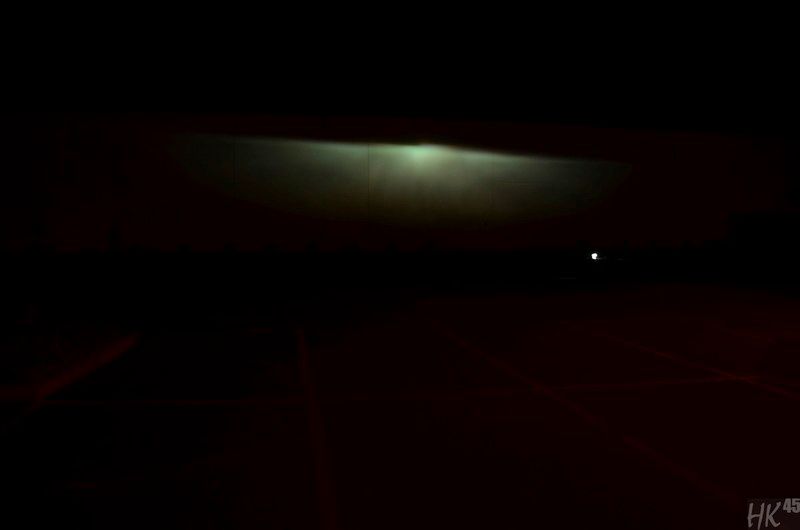

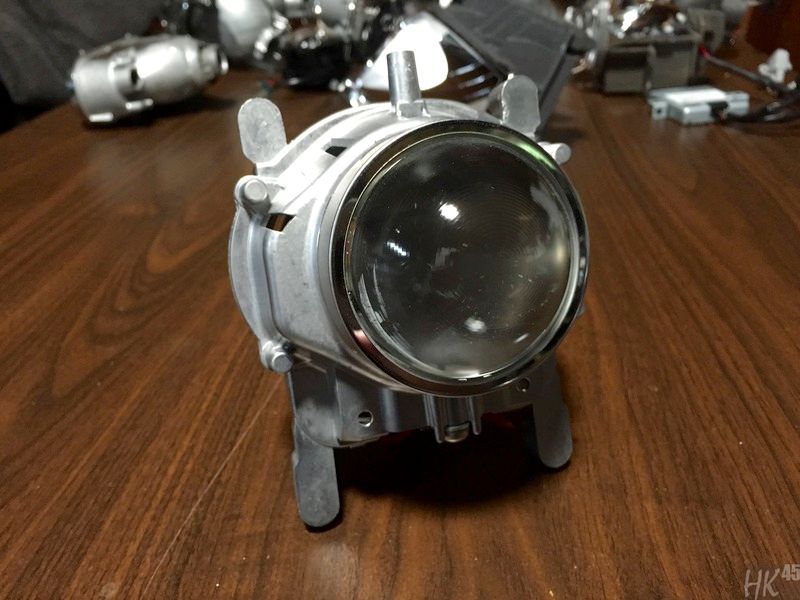

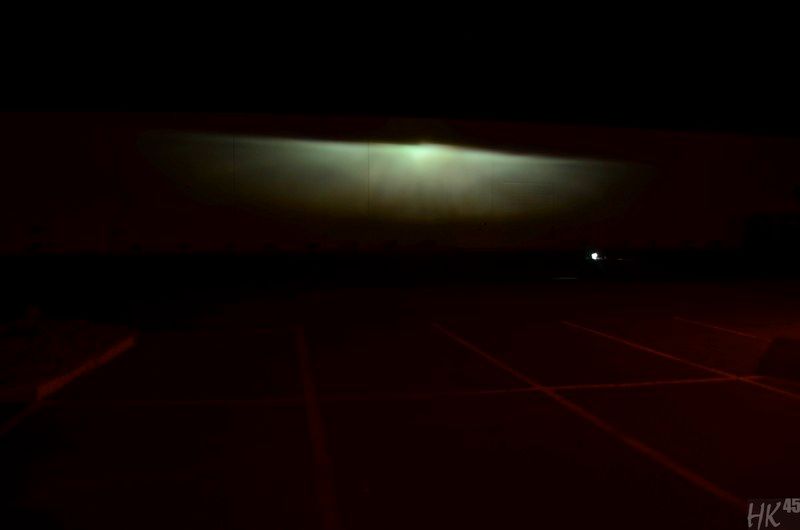

    G37 COUPE

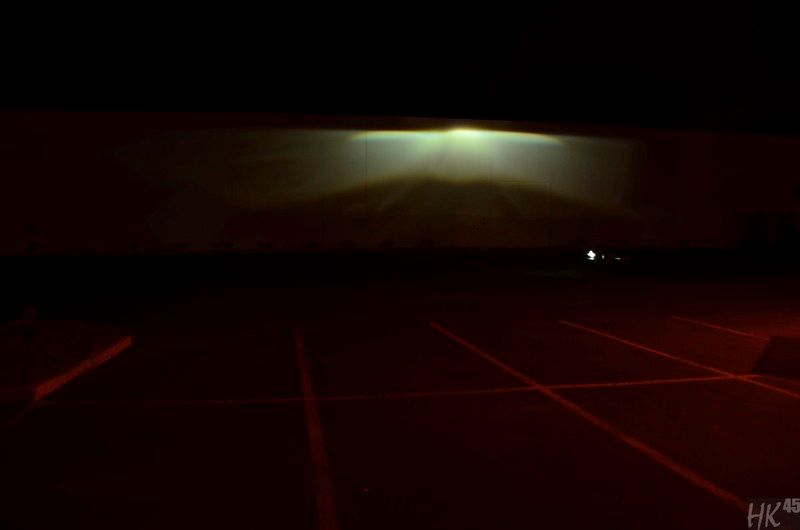

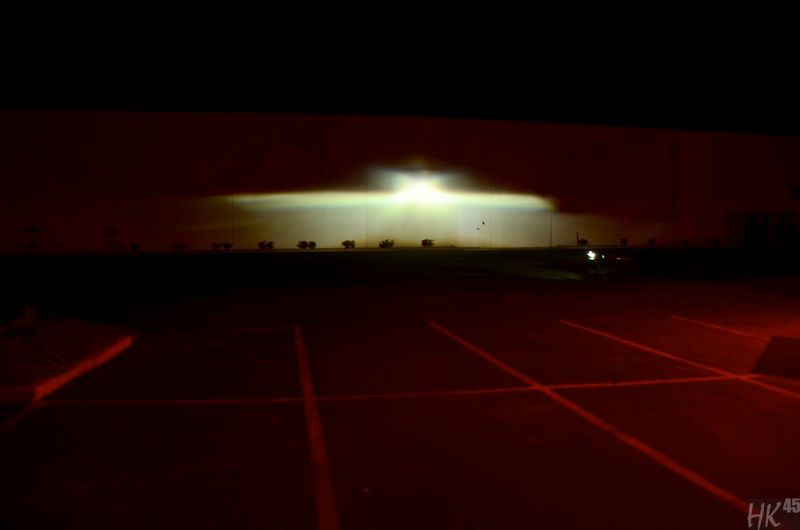

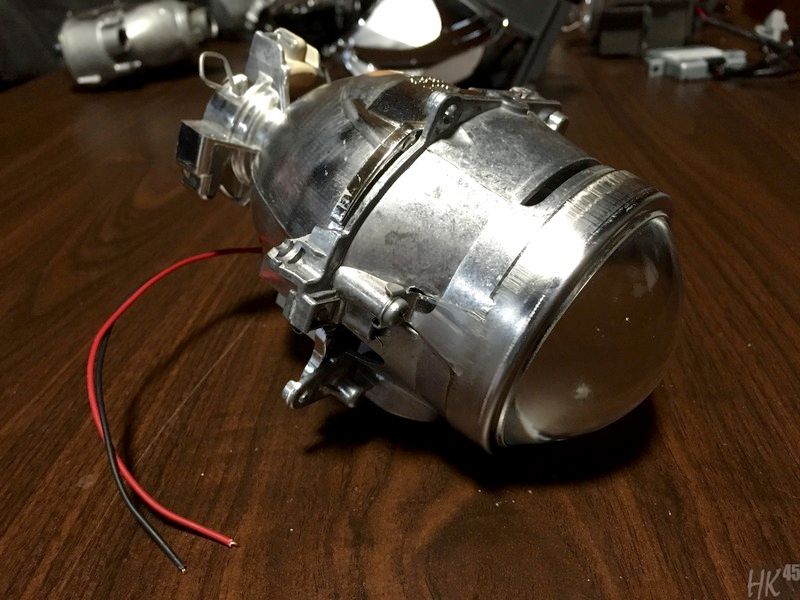

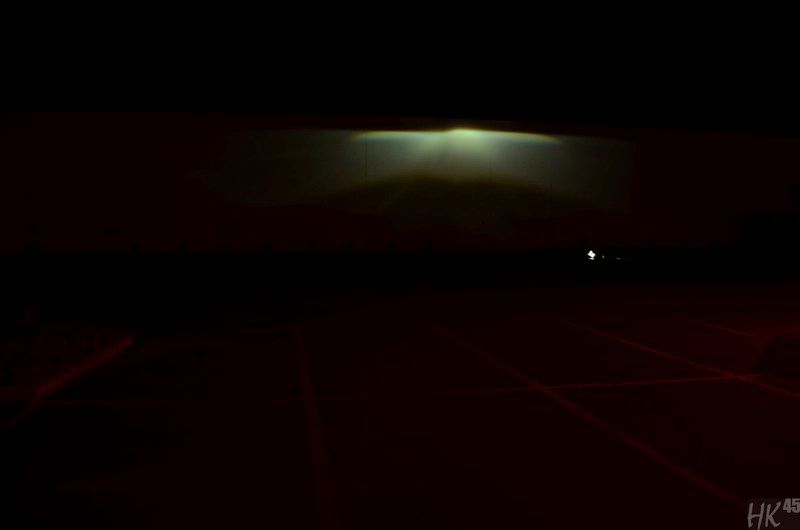

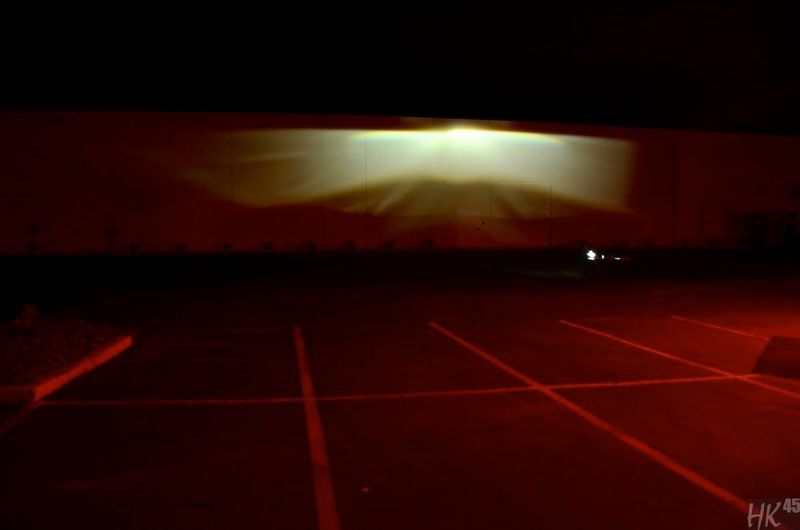

    G37 SEDAN

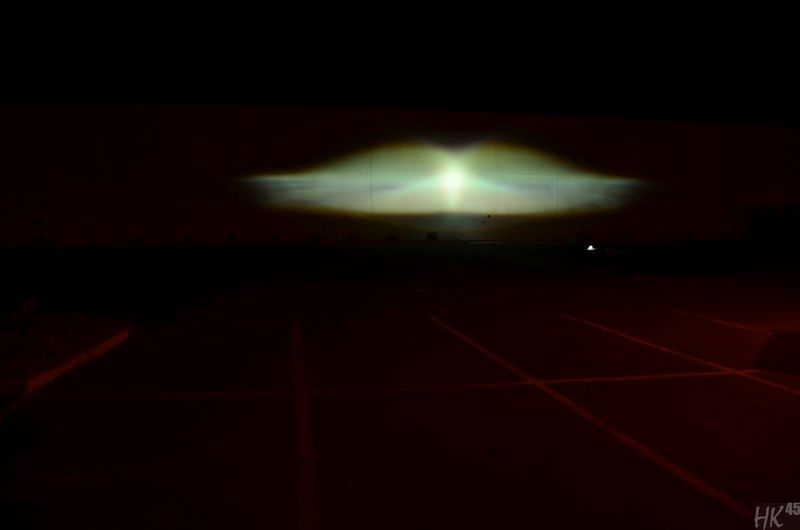

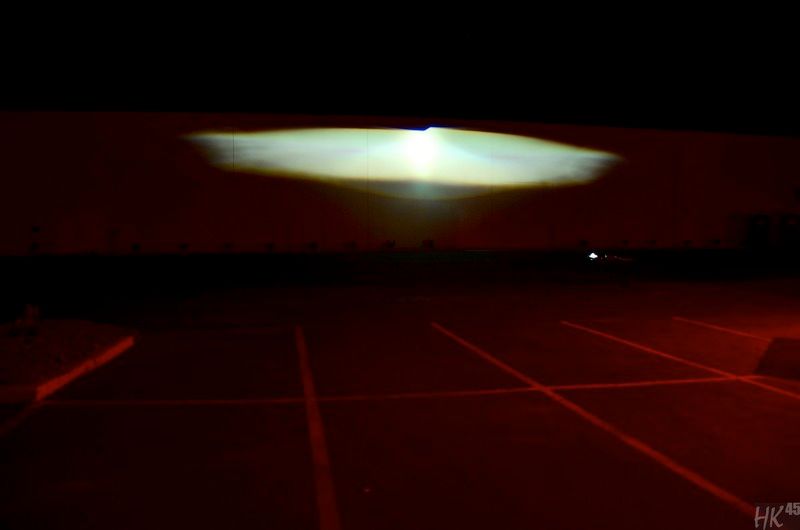

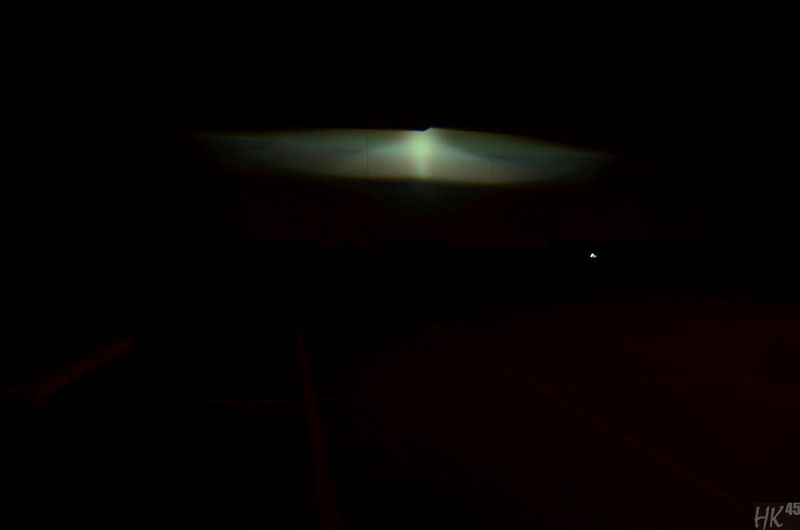

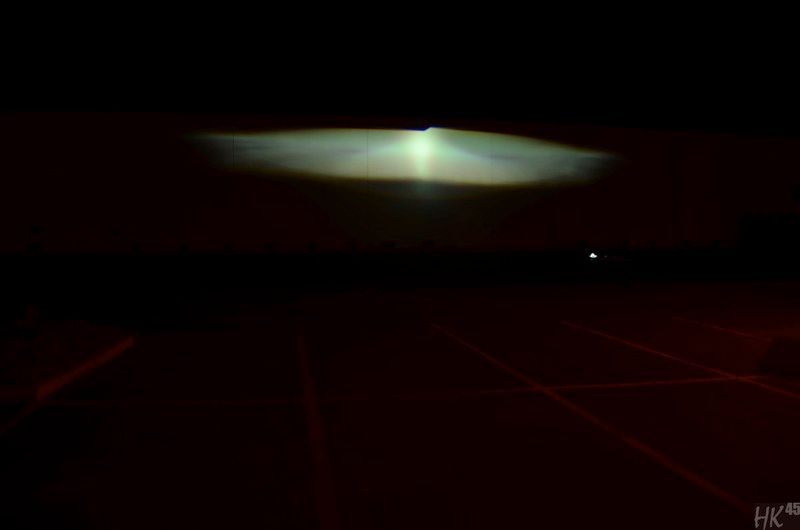

    GENERIC MH1

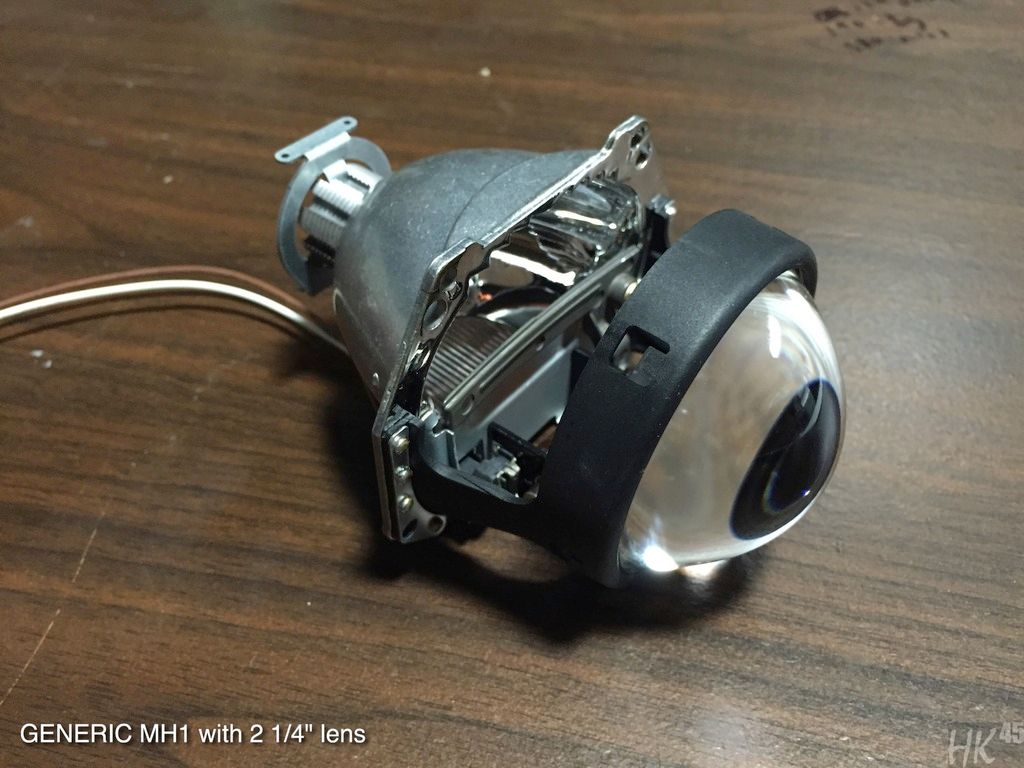

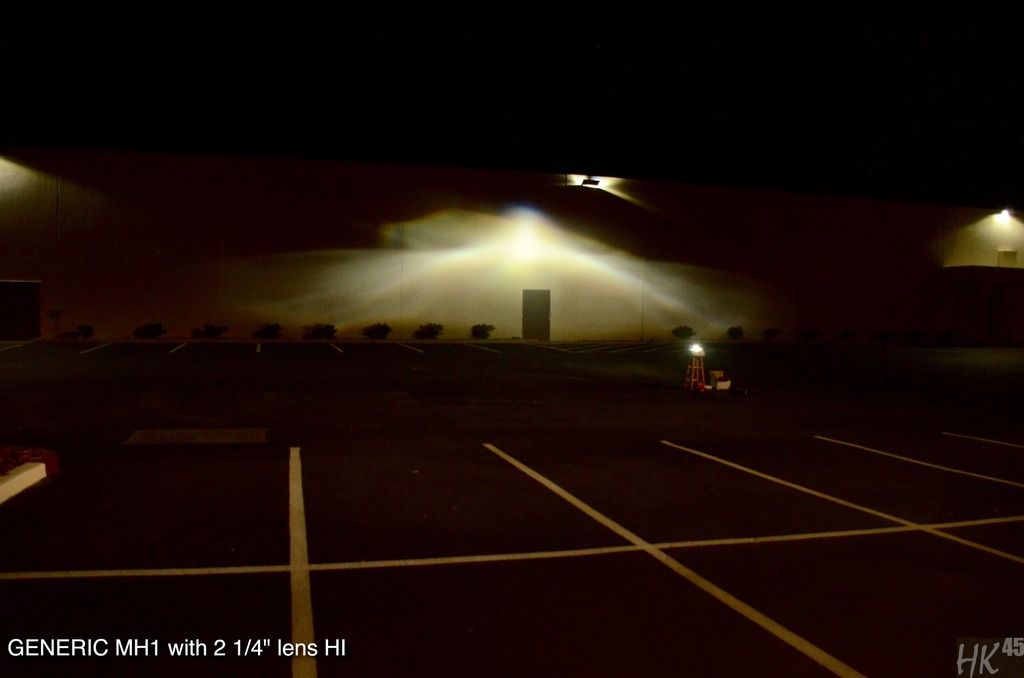

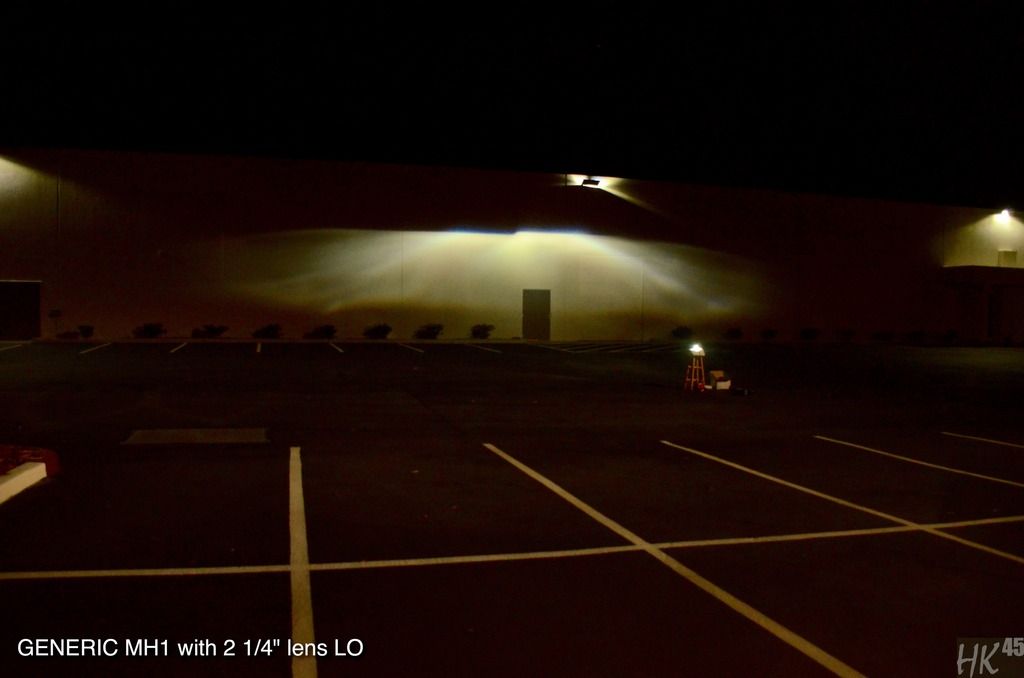

    GENERIC MH1 with 2 1/4" lens

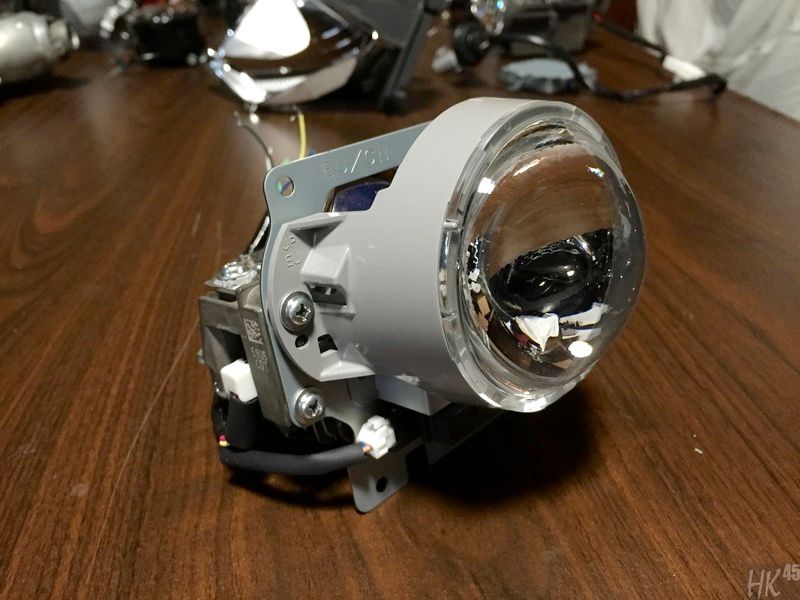

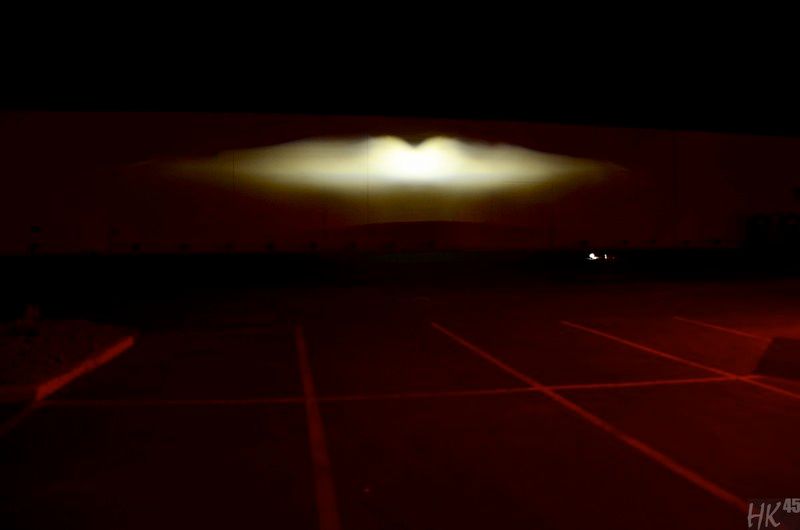

    KOITO BI-LED

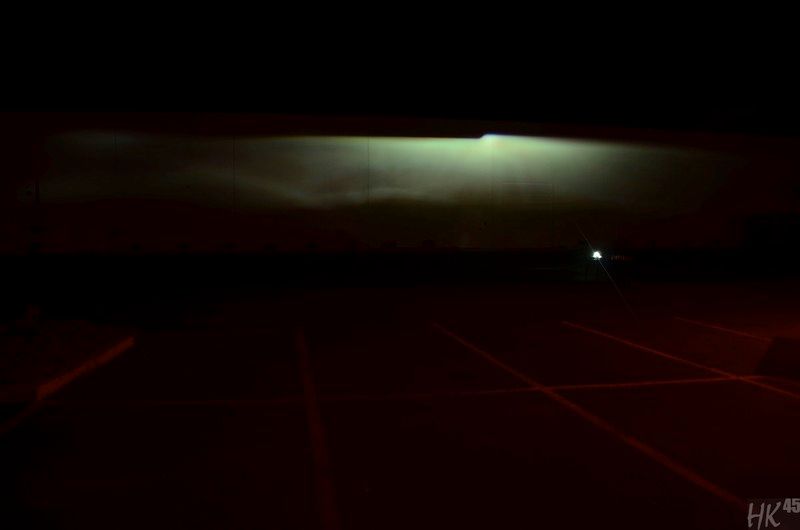

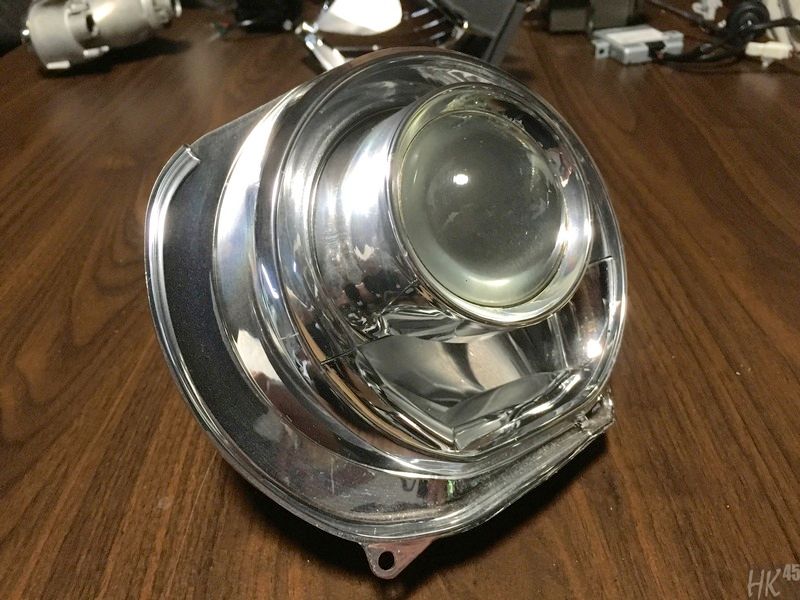

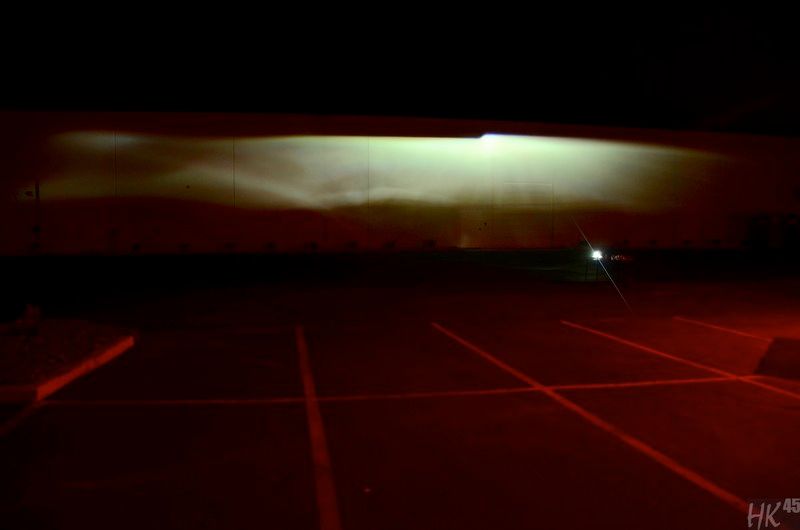

    LS430 LEFT

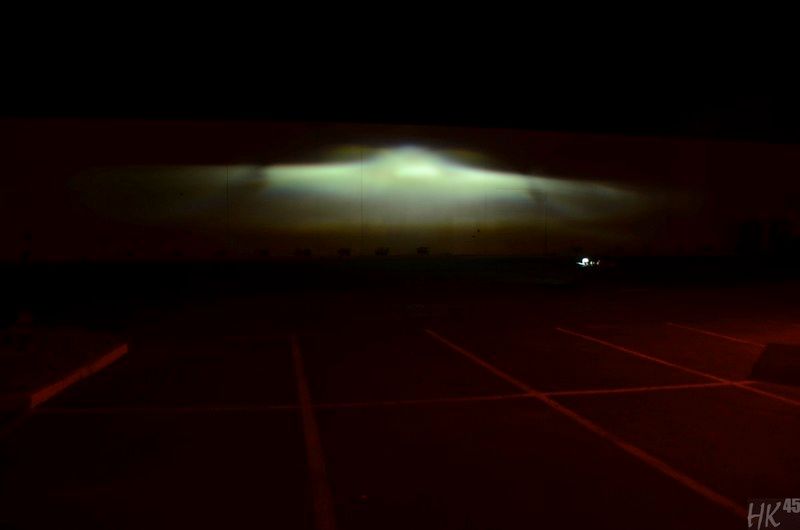

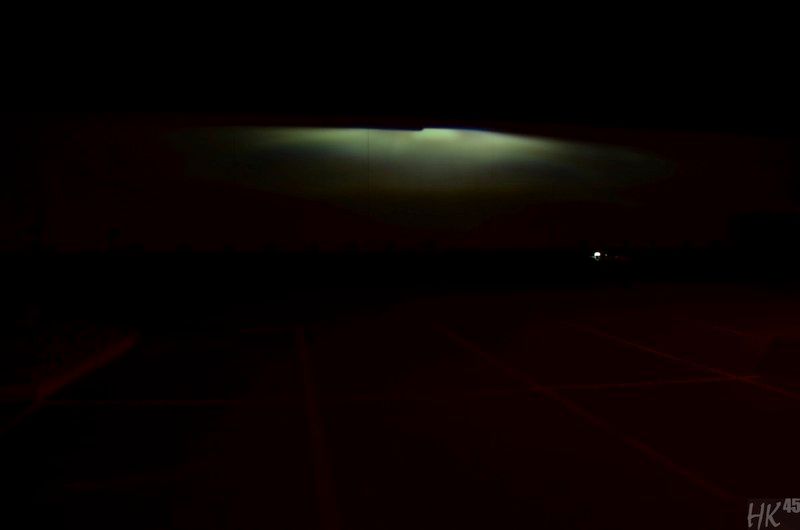

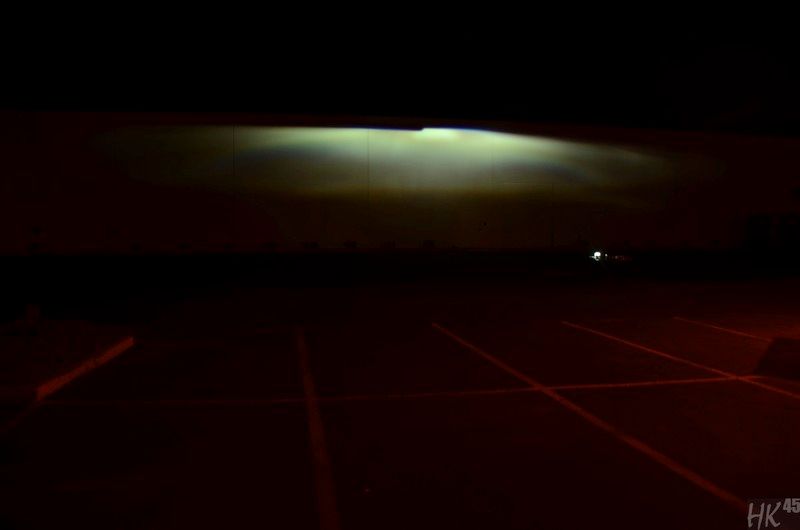

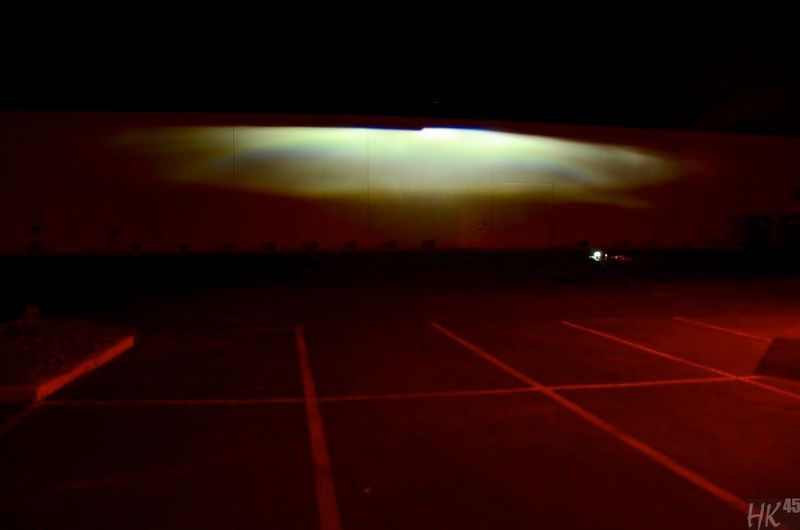

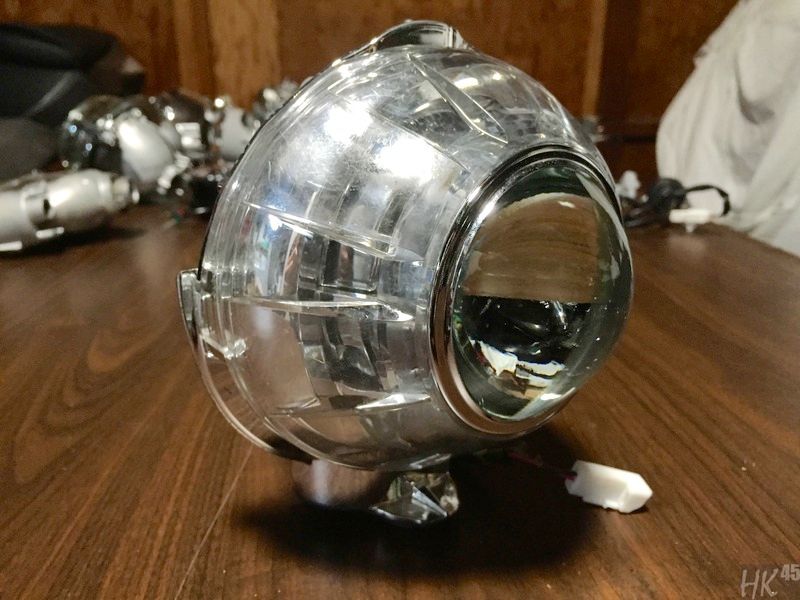

    LS460 RIGHT

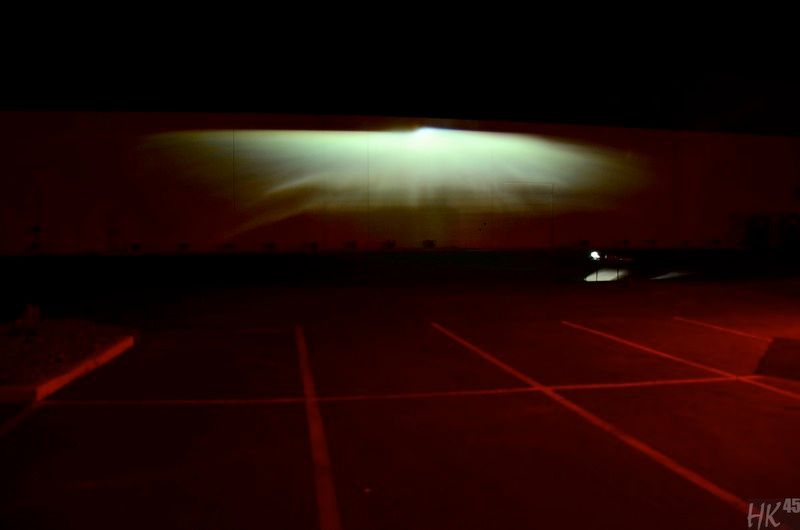

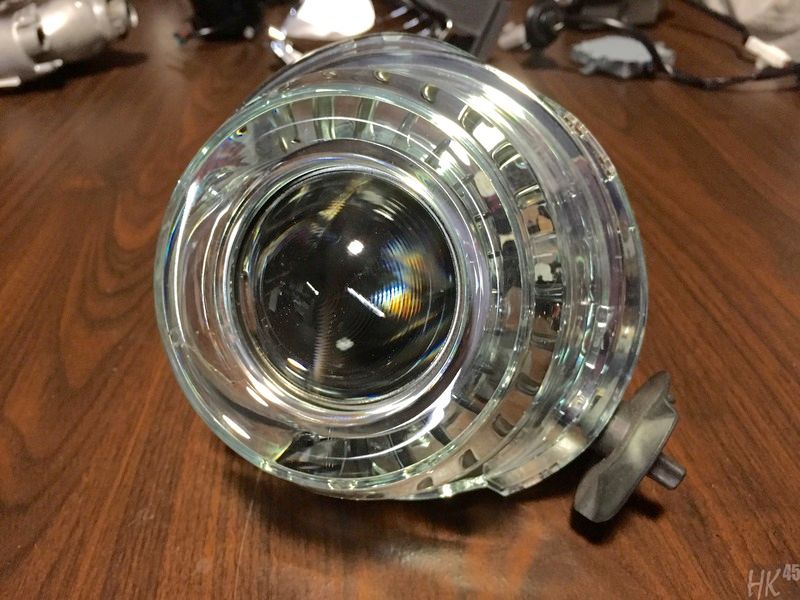

    M45



    OOPSIE FORGOT TO TAKE THE 2ND EXPOSURE - FAIL

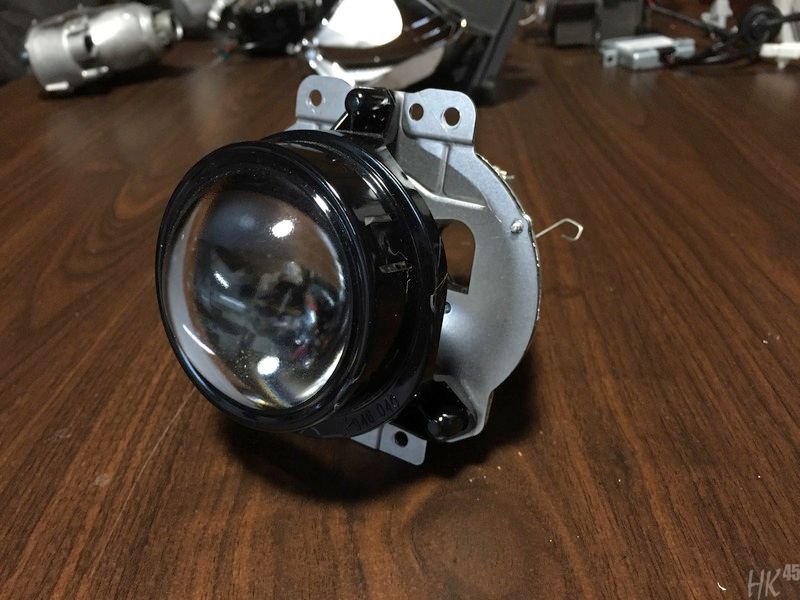

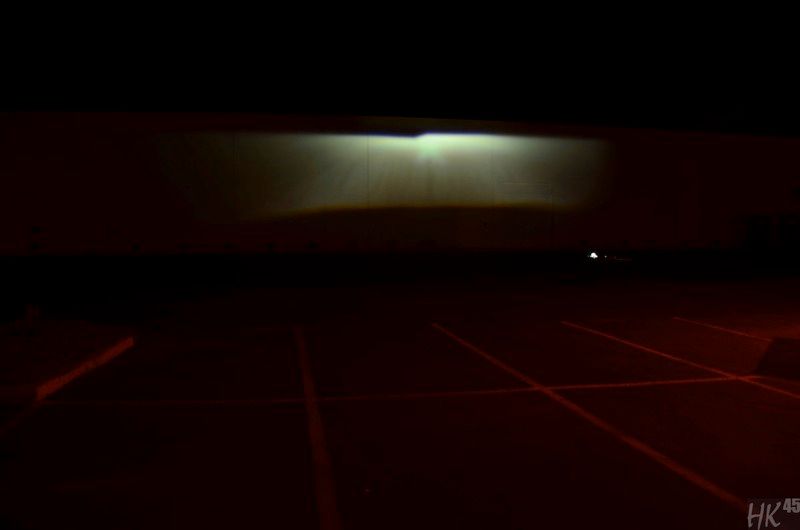

    MAXIMA/RX330 NON AFS

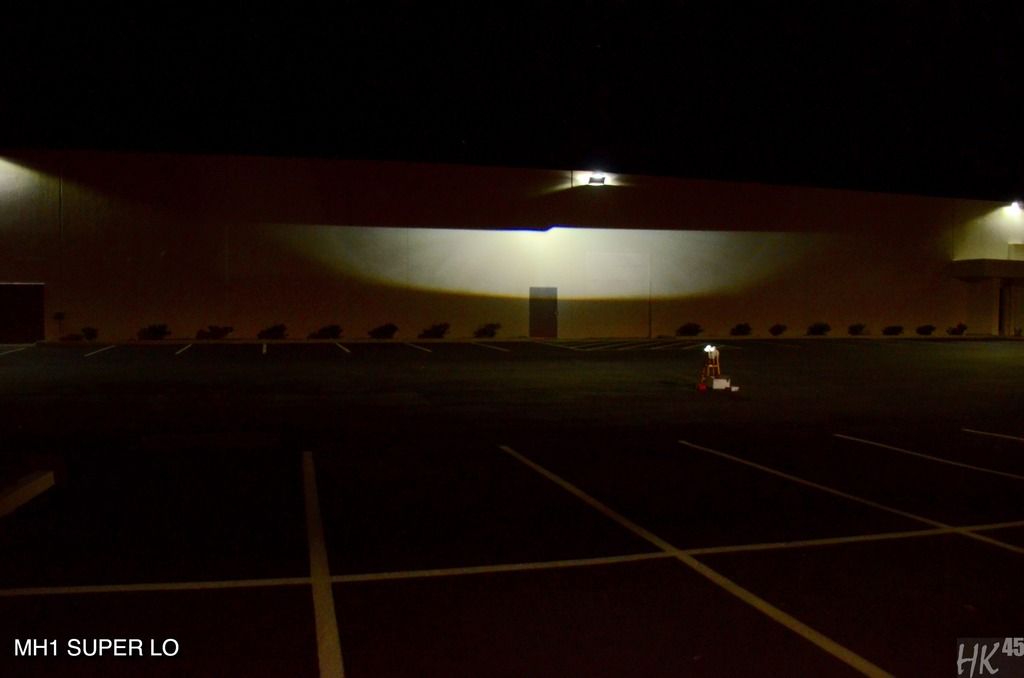

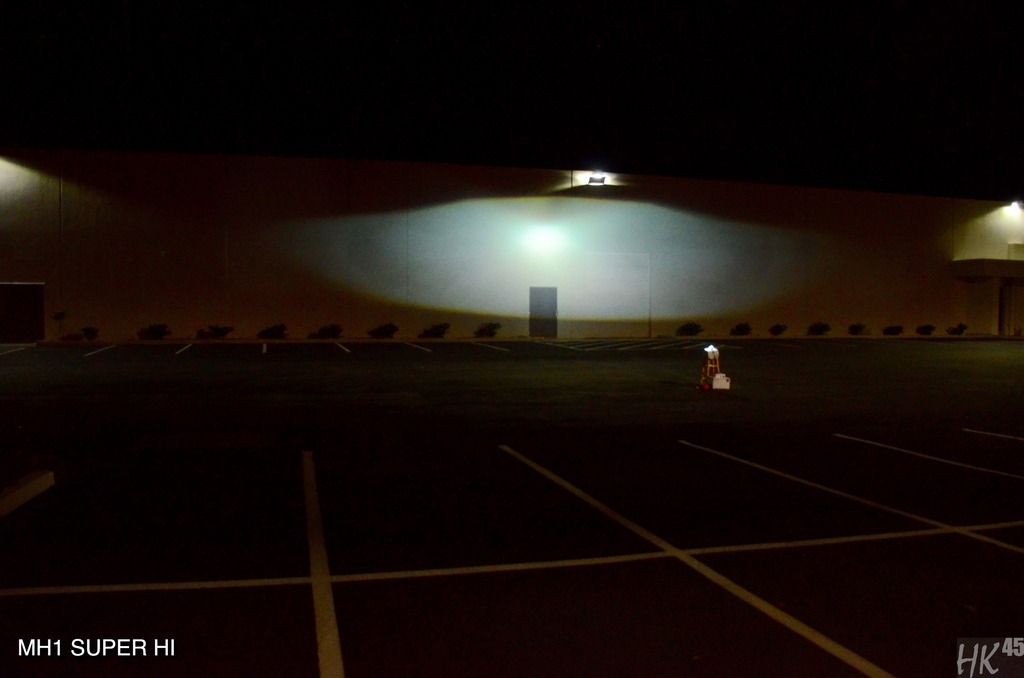

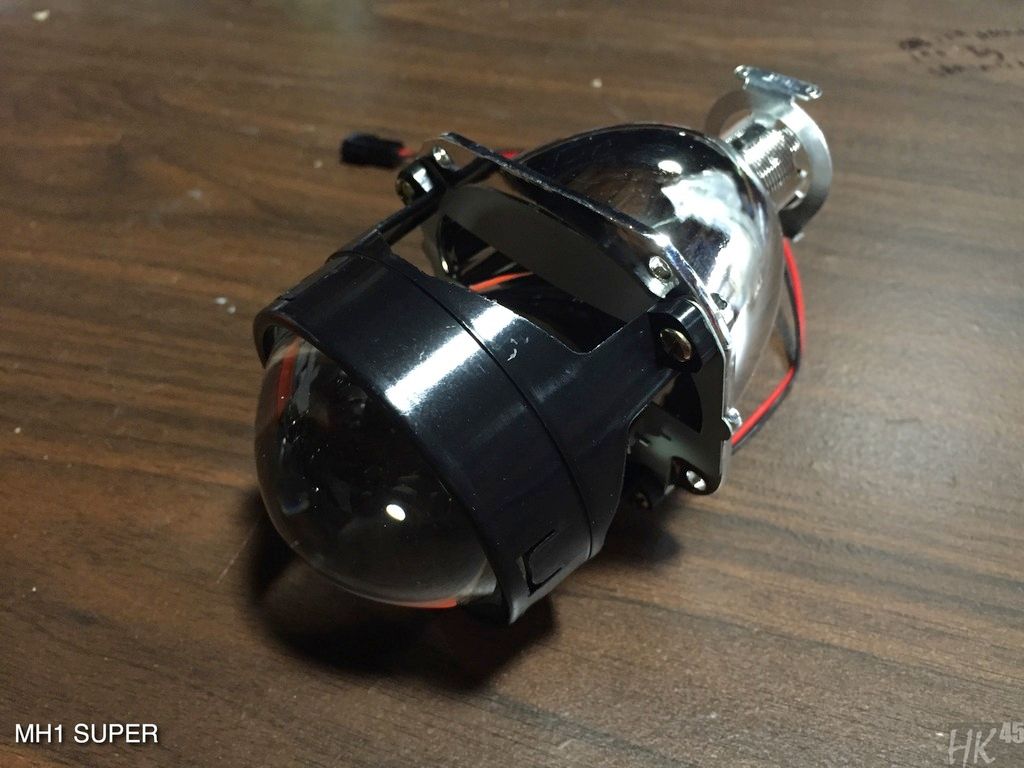

    MH1 SUPER

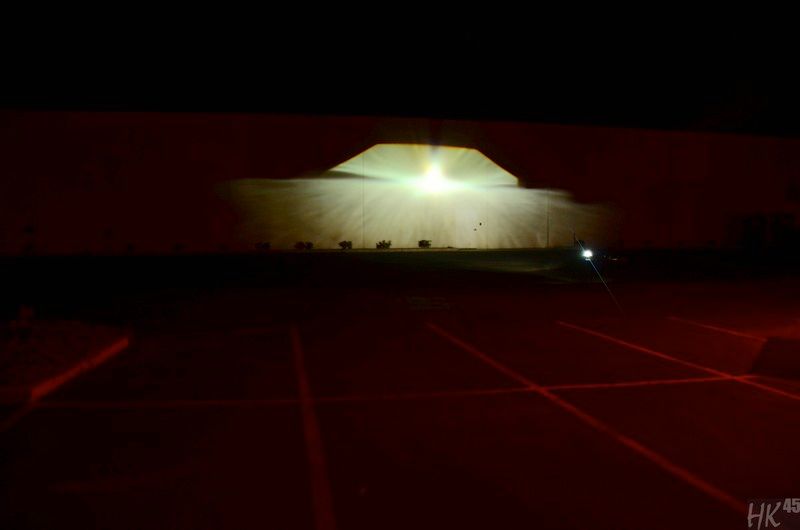

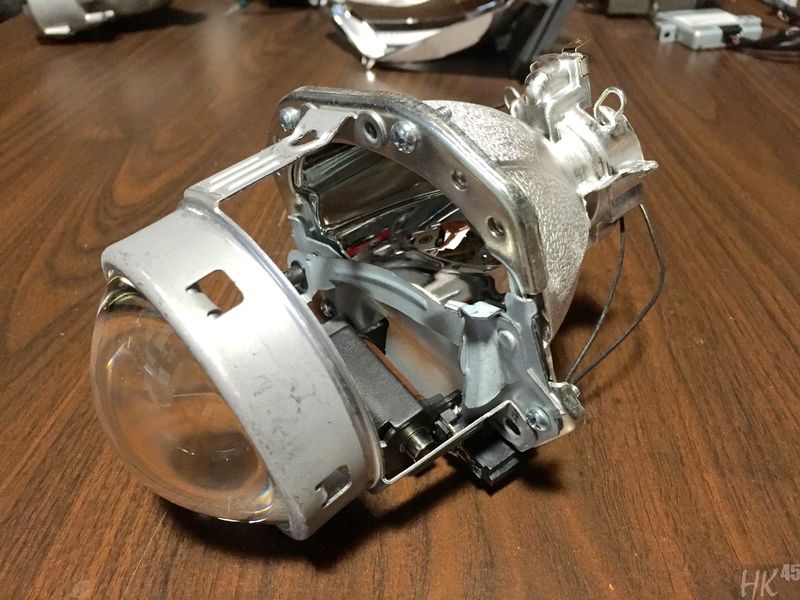

    MORIMOTO EVOX-R

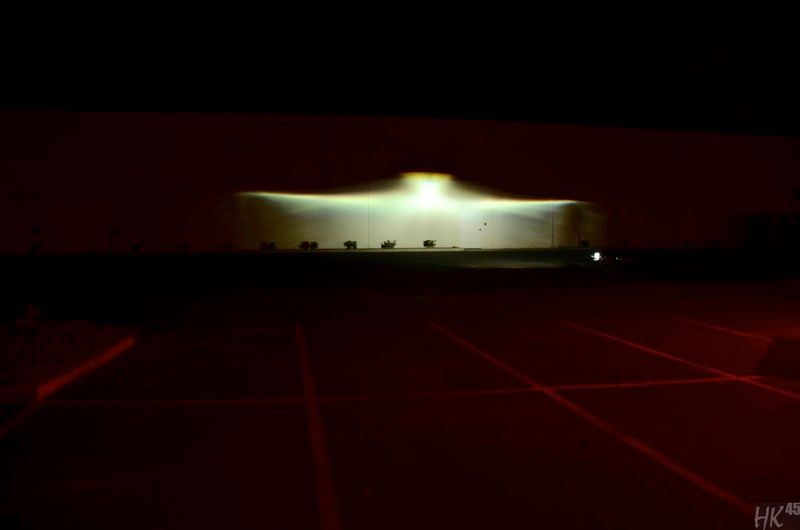

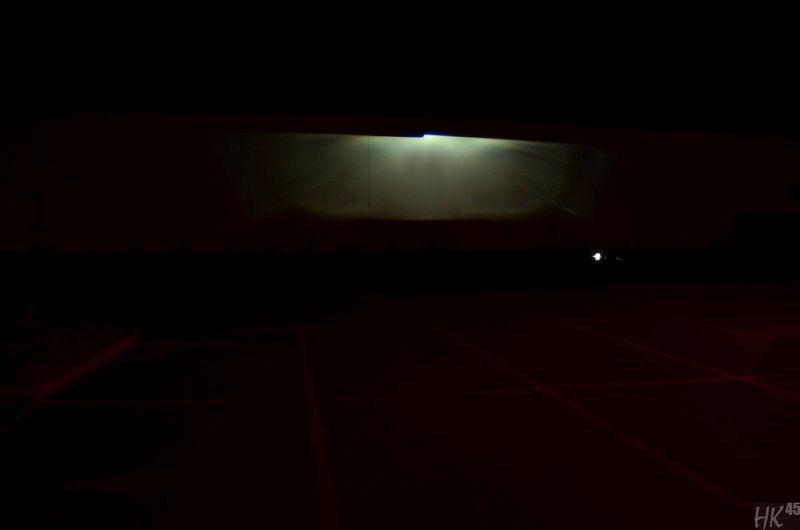

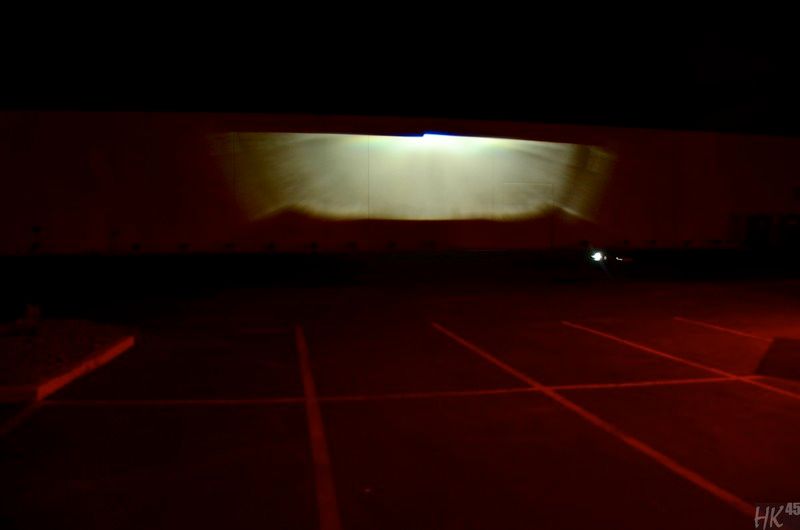

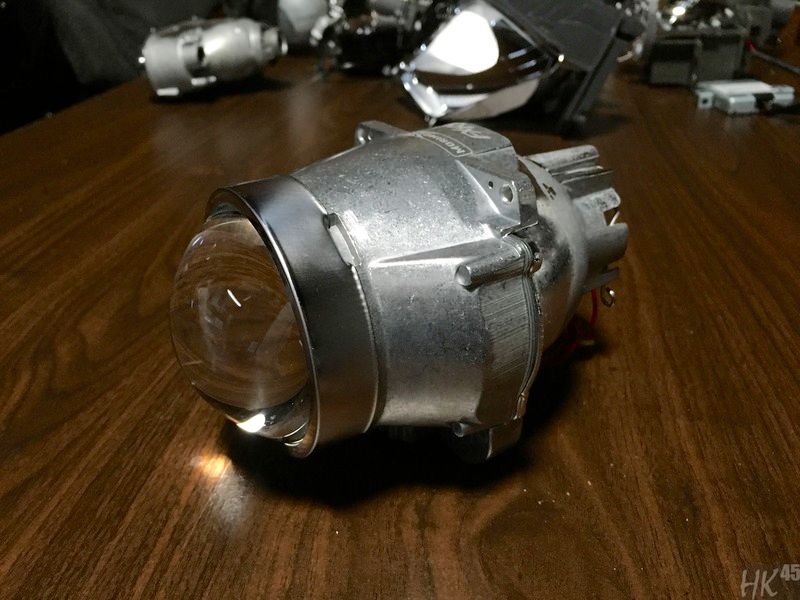

    MORIMOTO FX-R 3.0 3"

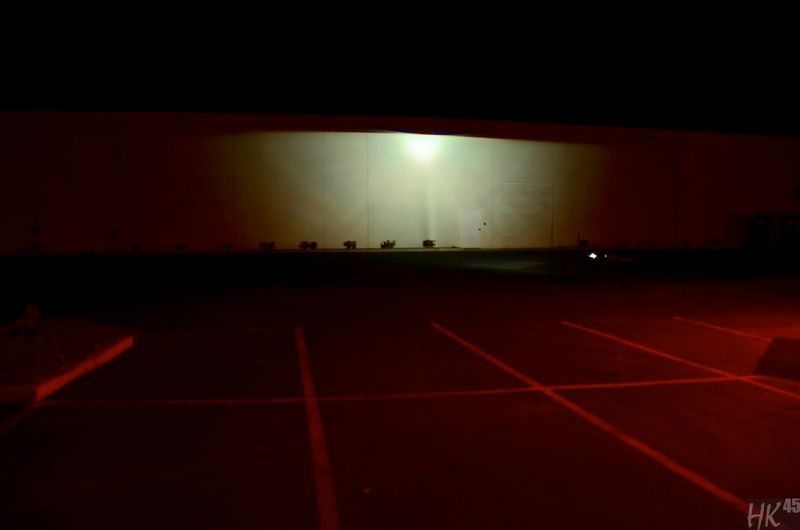

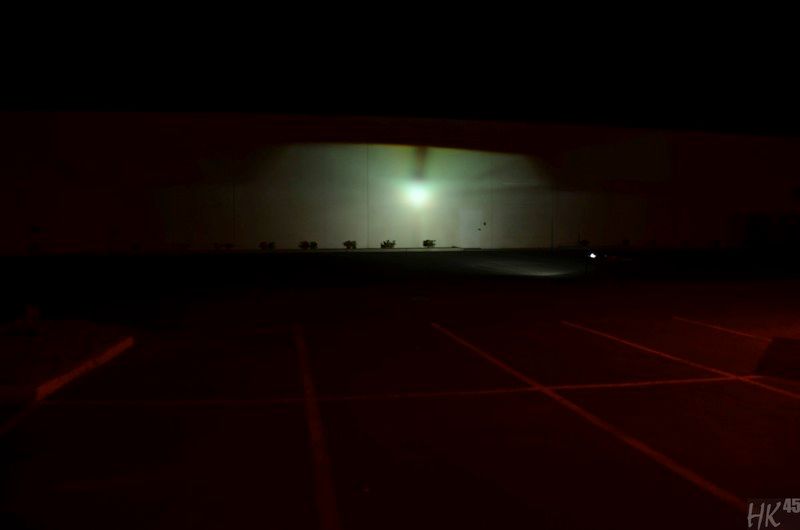

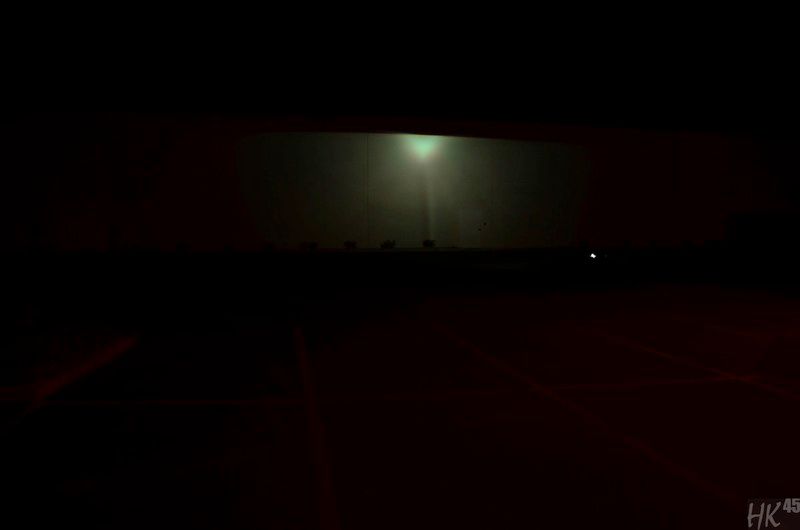

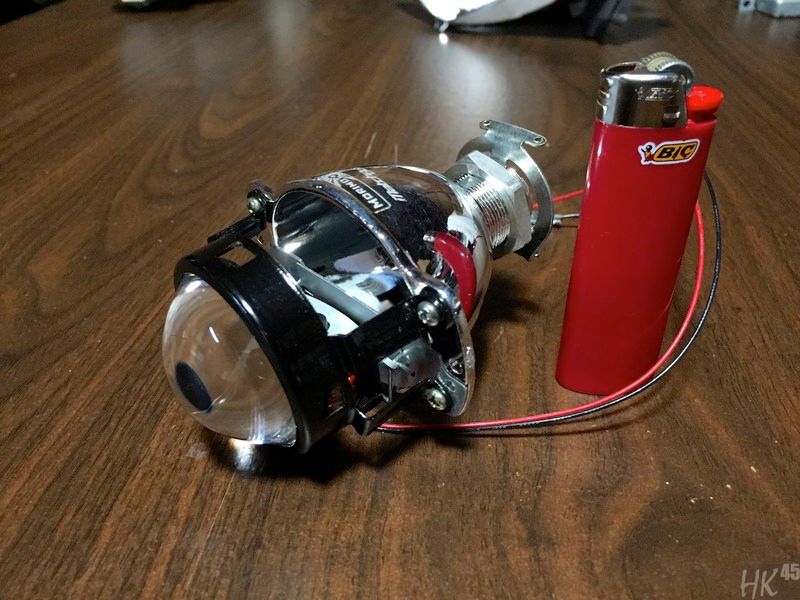

    MORIMOTO MATCHBOX

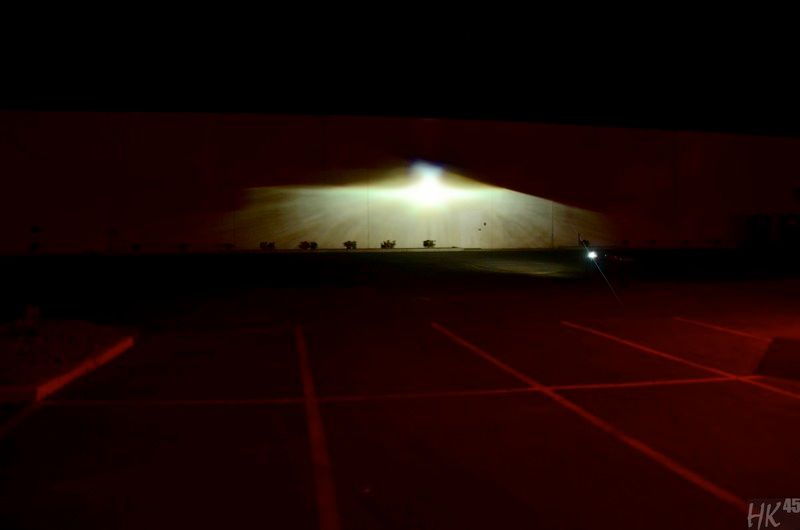

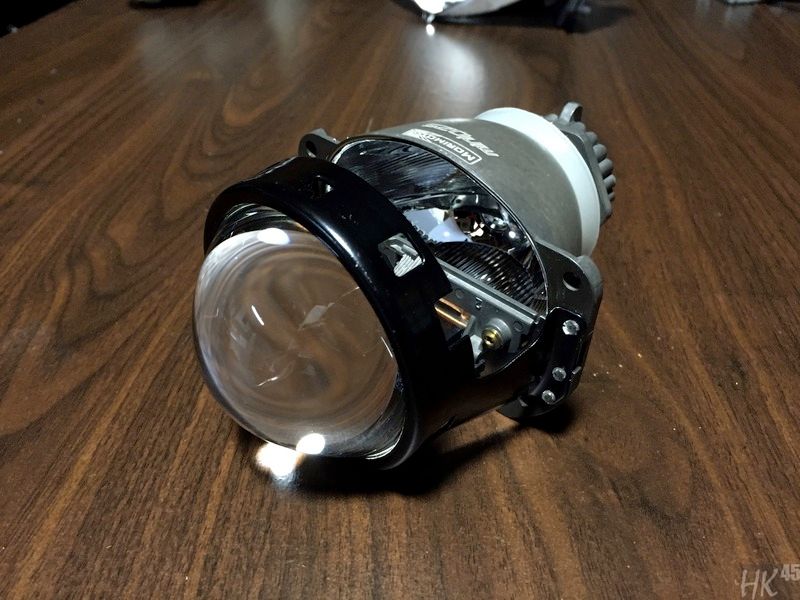

    MORIMOTO MD2S 3.0

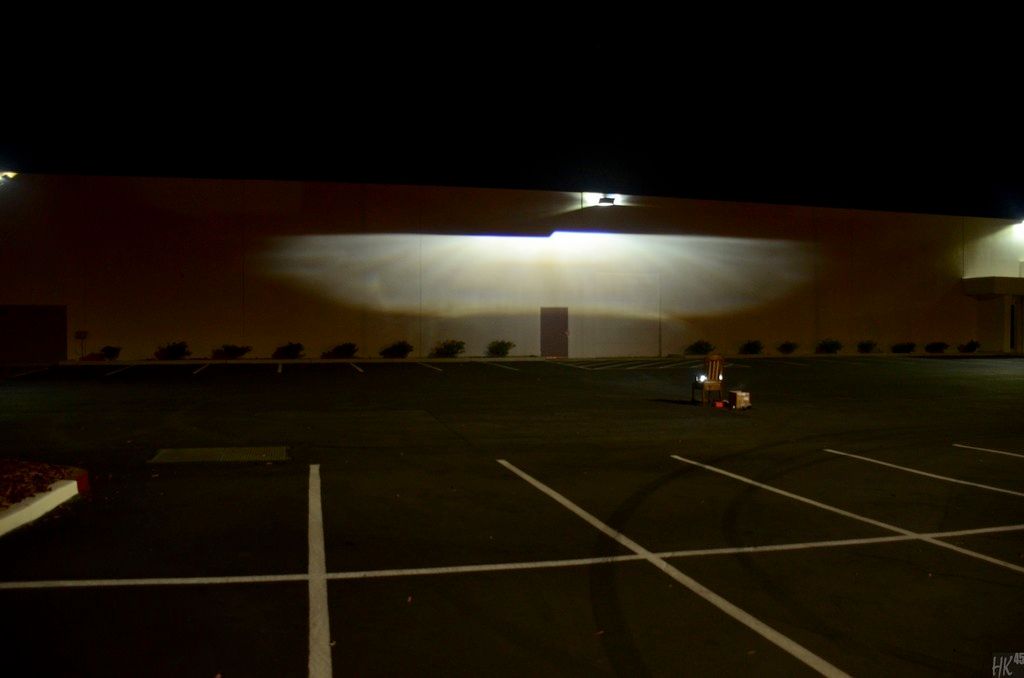

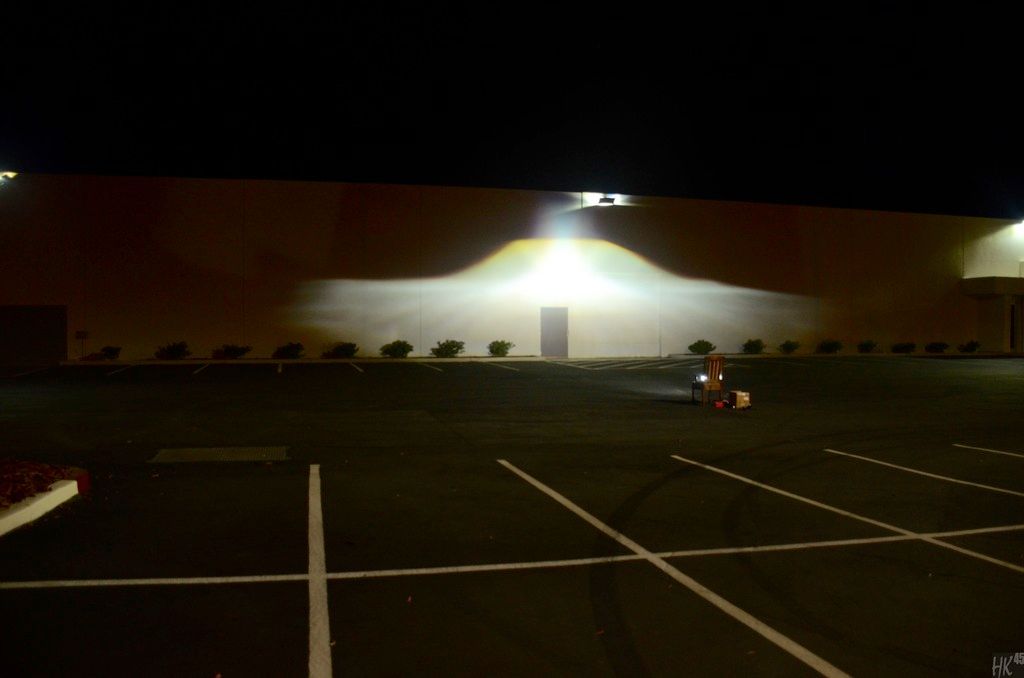

    MORIMOTO MD2S 4.0





    MORIMOTO MD2S 5.0
    5.0 proj2 by Sam Colt, on Flickr
    5.0-1-1 by Sam Colt, on Flickr

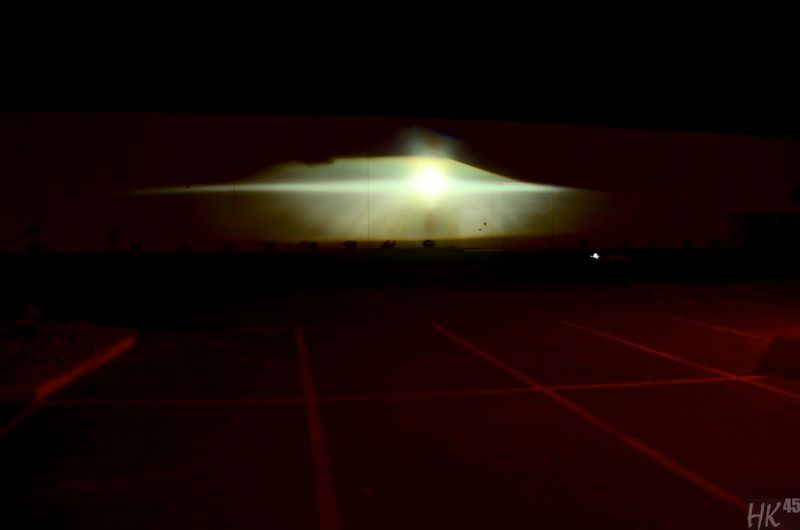

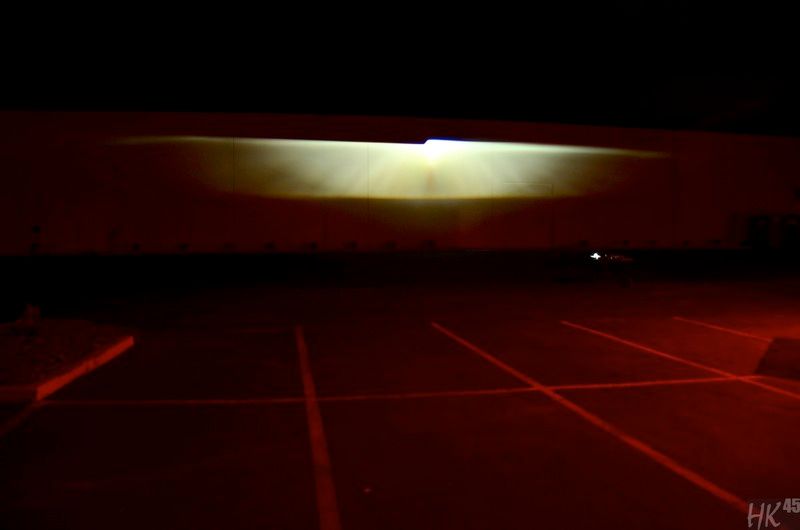

    MORIMOTO MH1 7.0








    MORIMOTO MLED
    stocklo by Sam Colt, on Flickr
    stockhi by Sam Colt, on Flickr

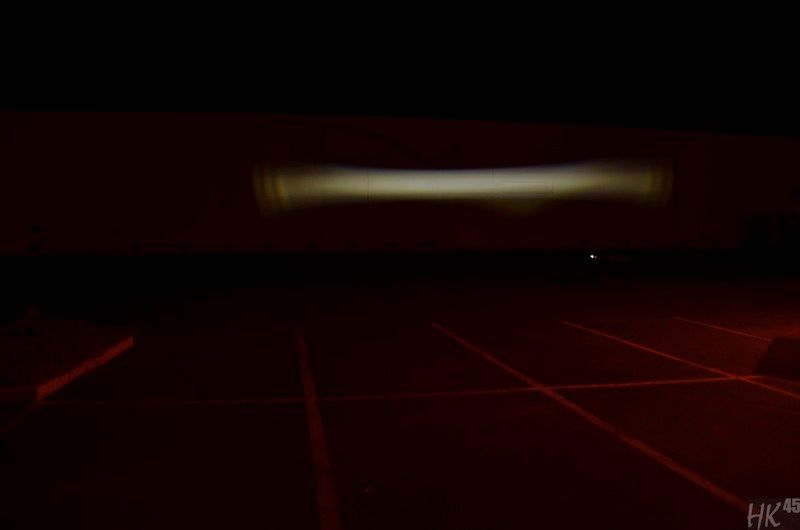

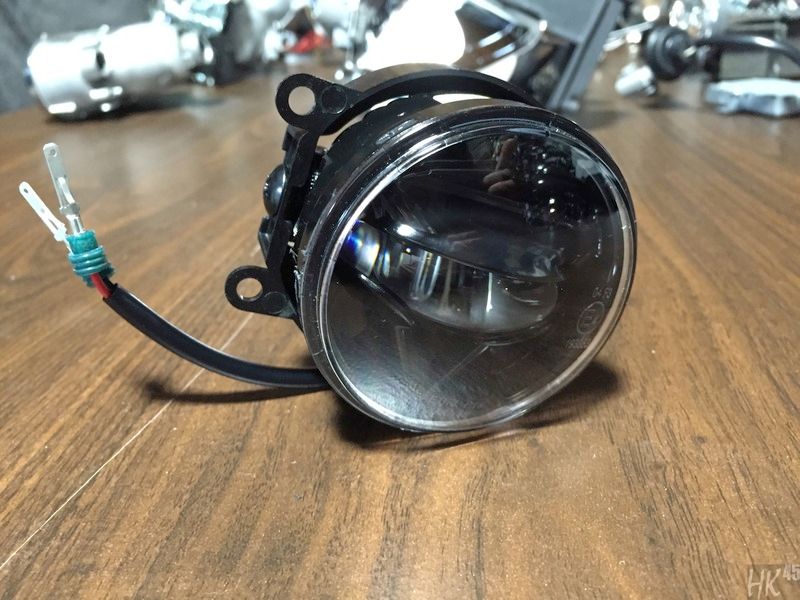

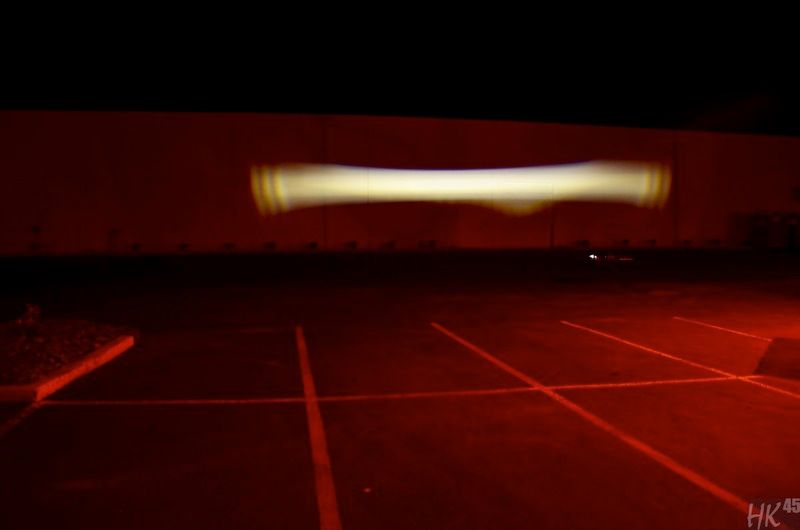

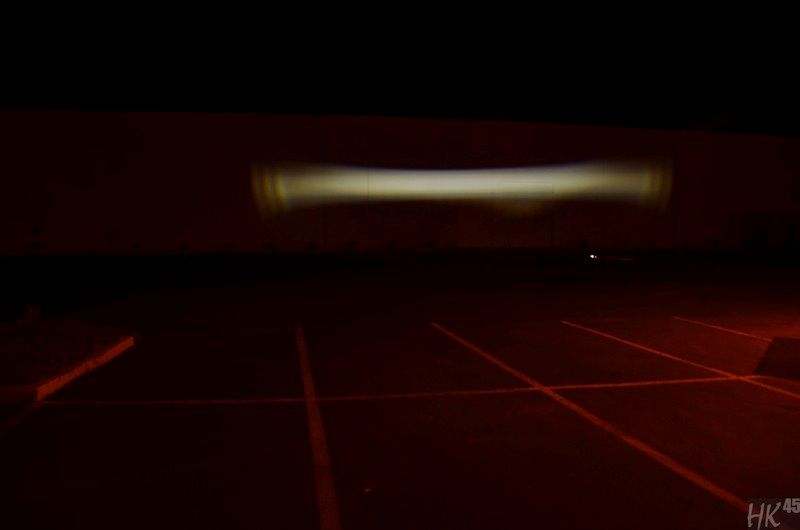

    MORIMOTO TYPE U FOG

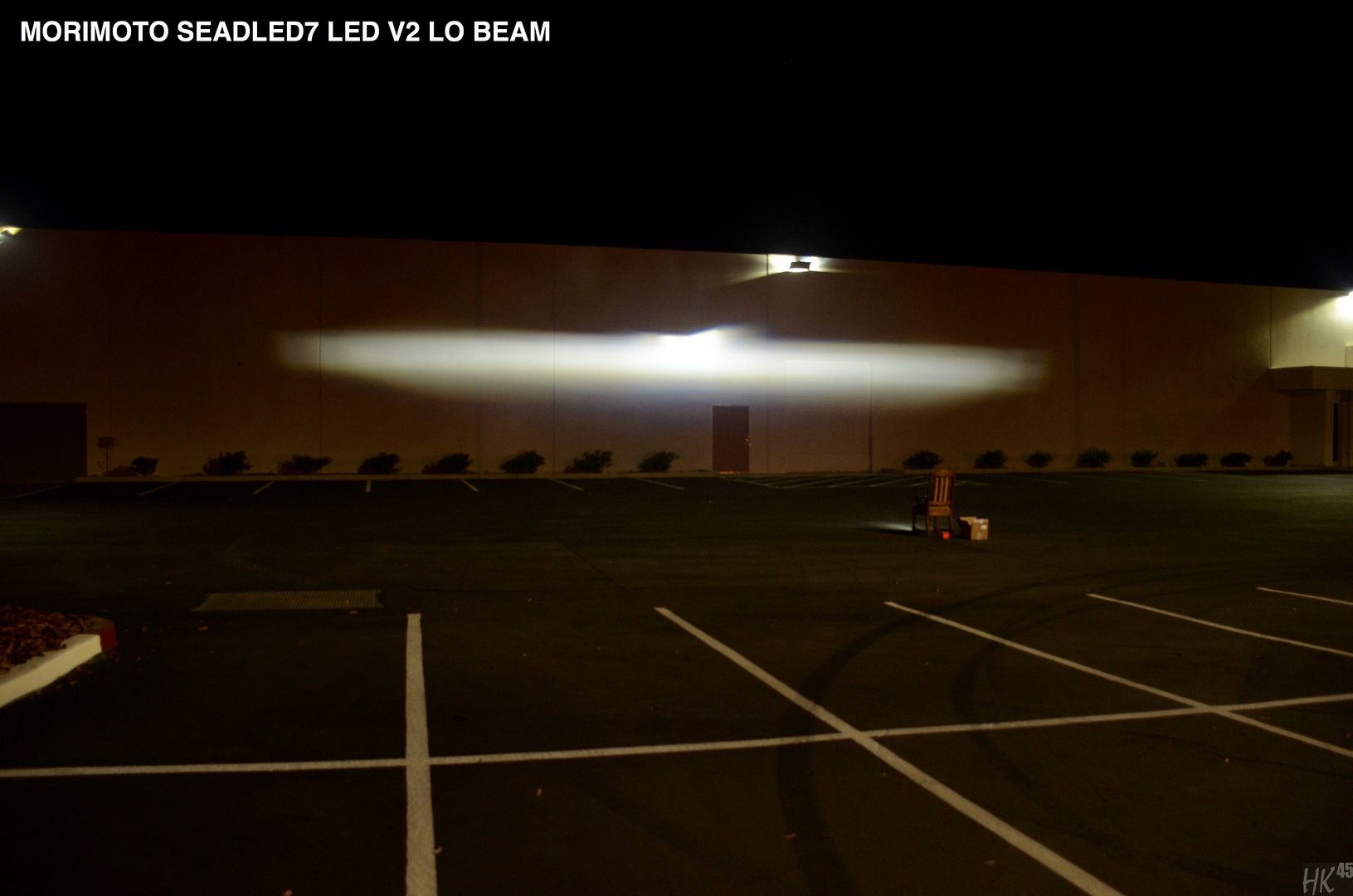

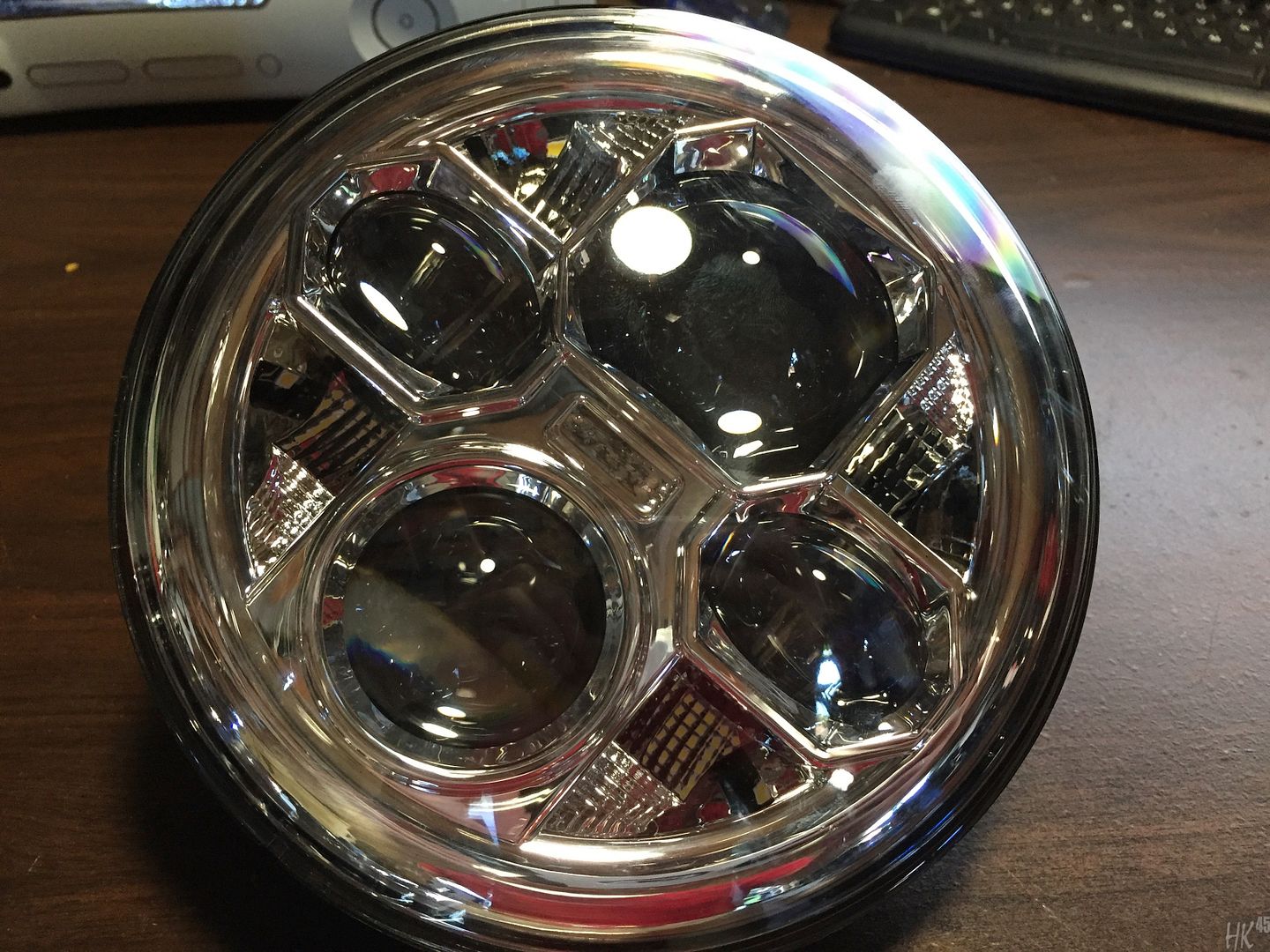

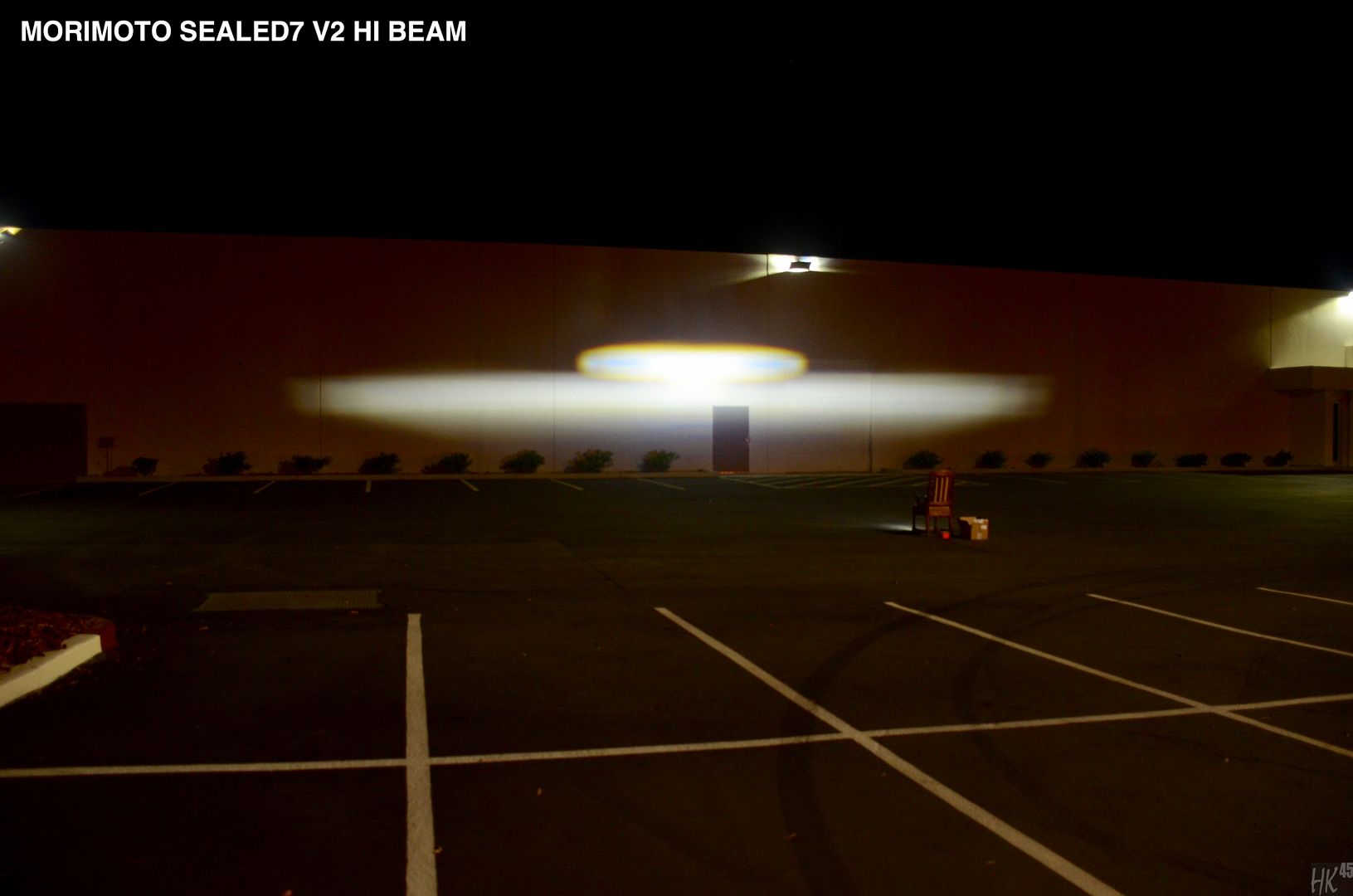

    MORIMOTO SEALED7 LED V2

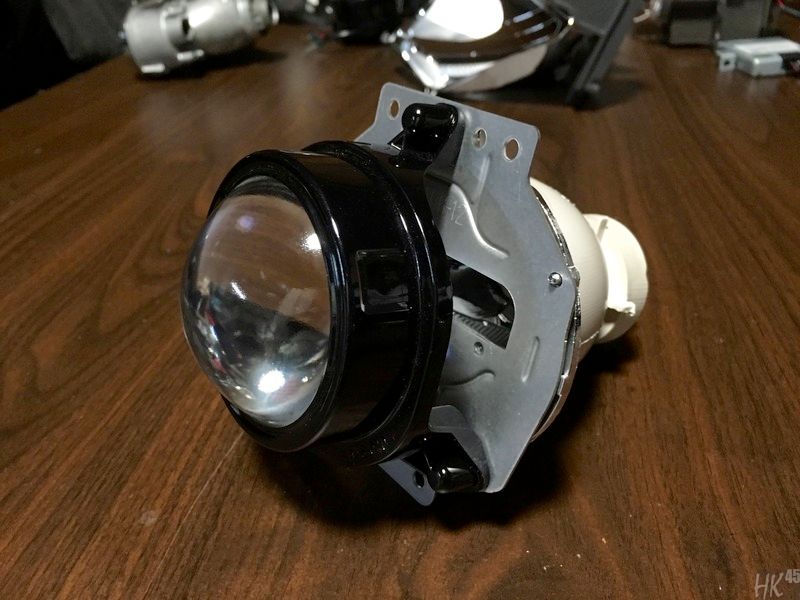

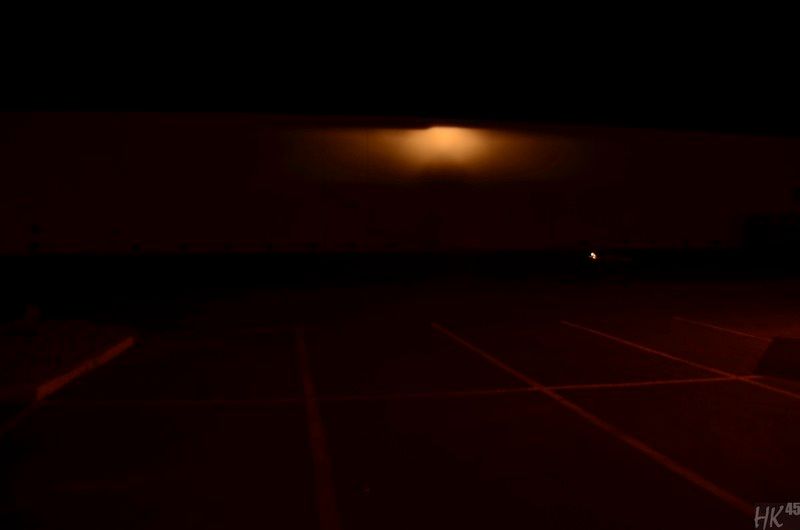

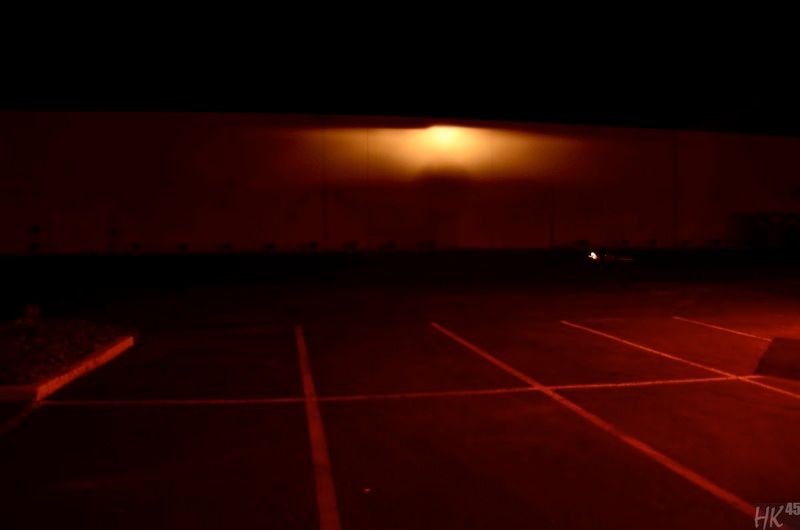

    MURANO H11 3" HALOGEN

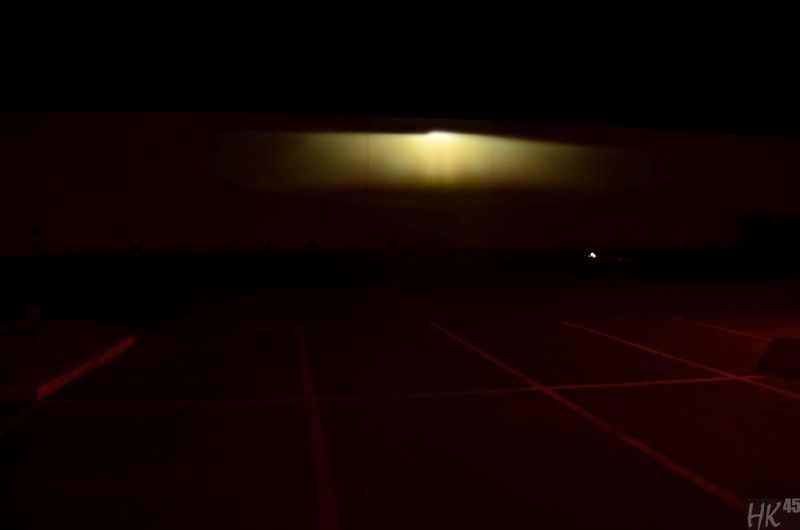

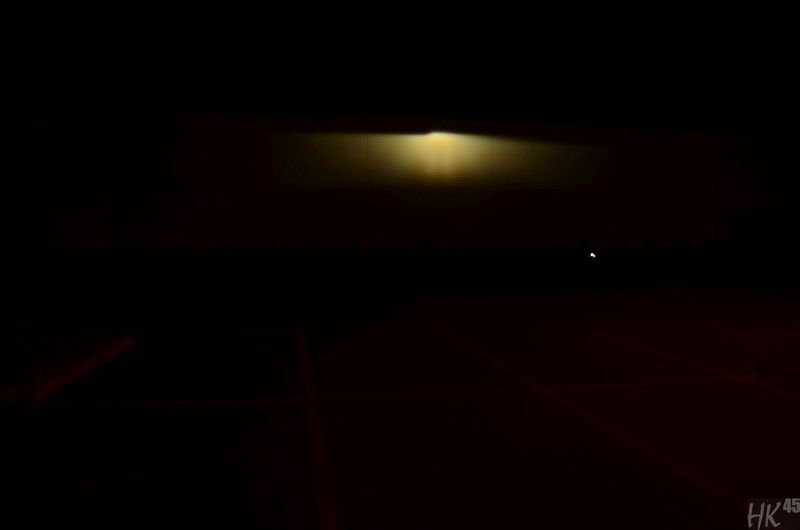

    MURANO H11 3" PnP HID

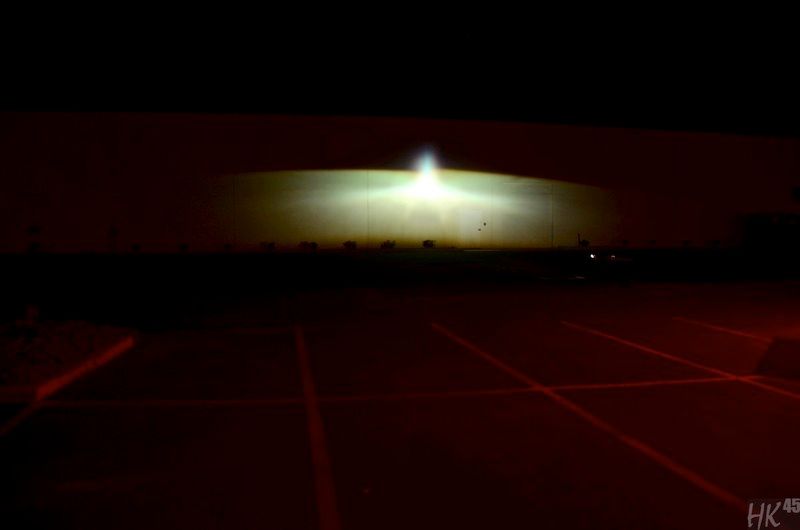

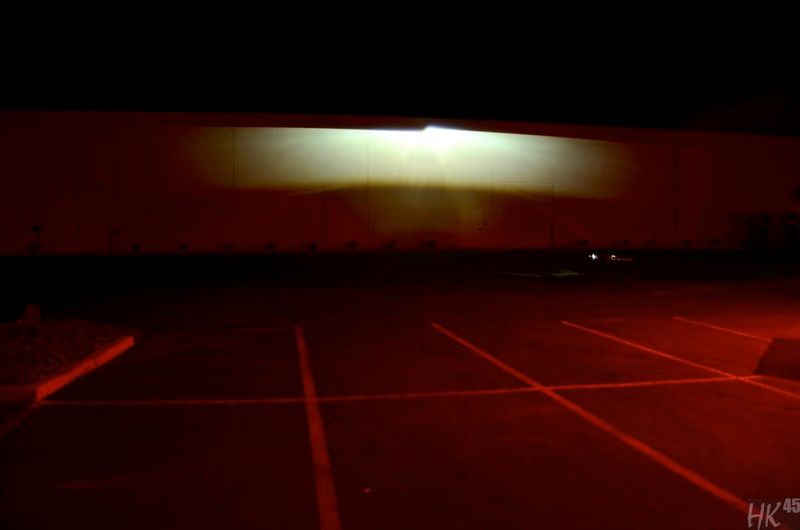

    MURANO HID(STEP)

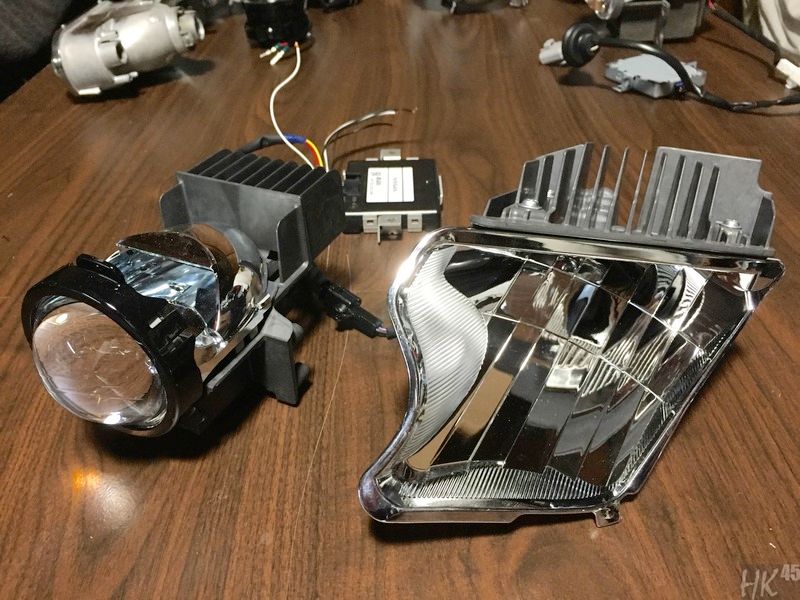

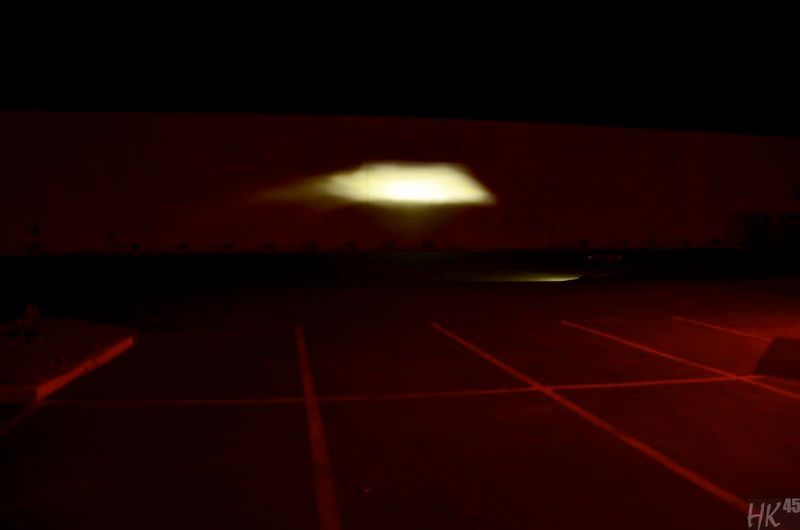

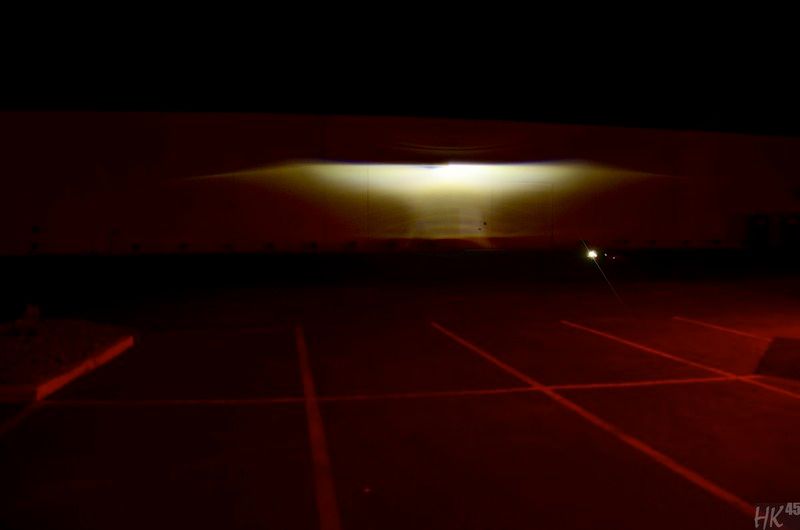

    MURANO LED + MURANO LED HIGH BEAM REFLECTOR

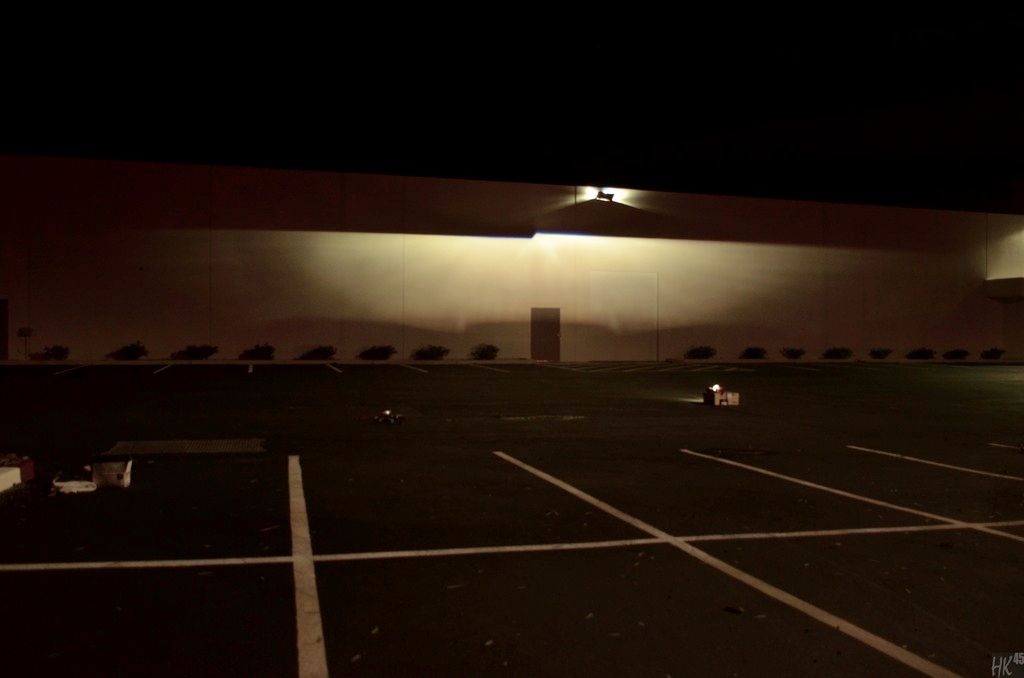

    OPTIMA




    OUTLANDER SPORT

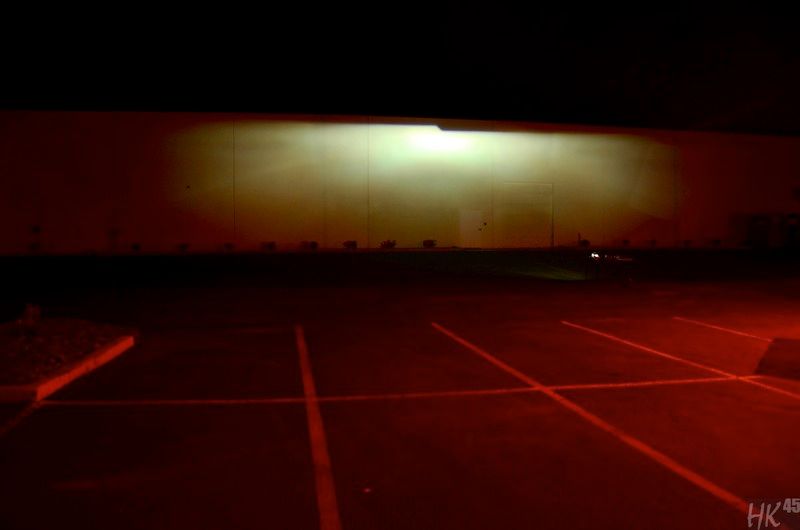

    Q45

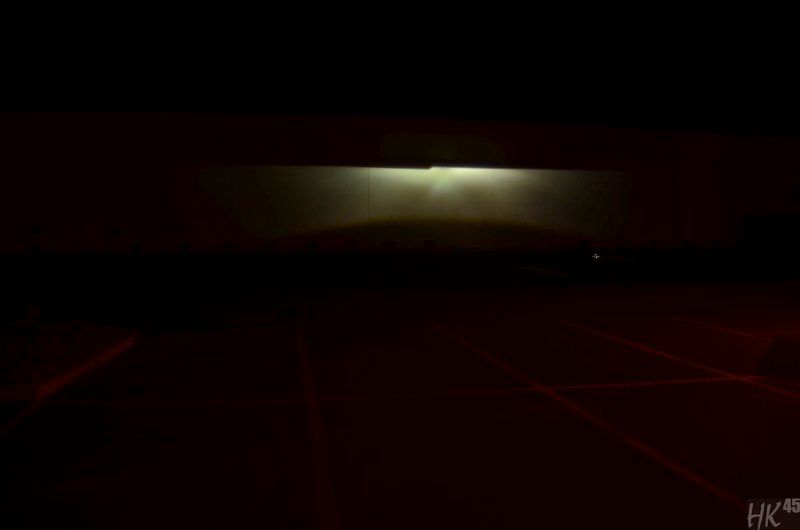

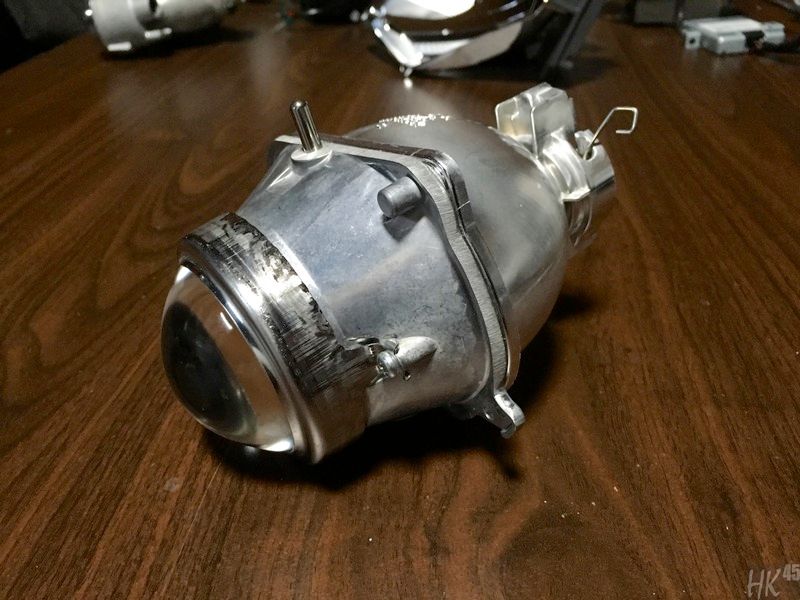

    RX330 AFS

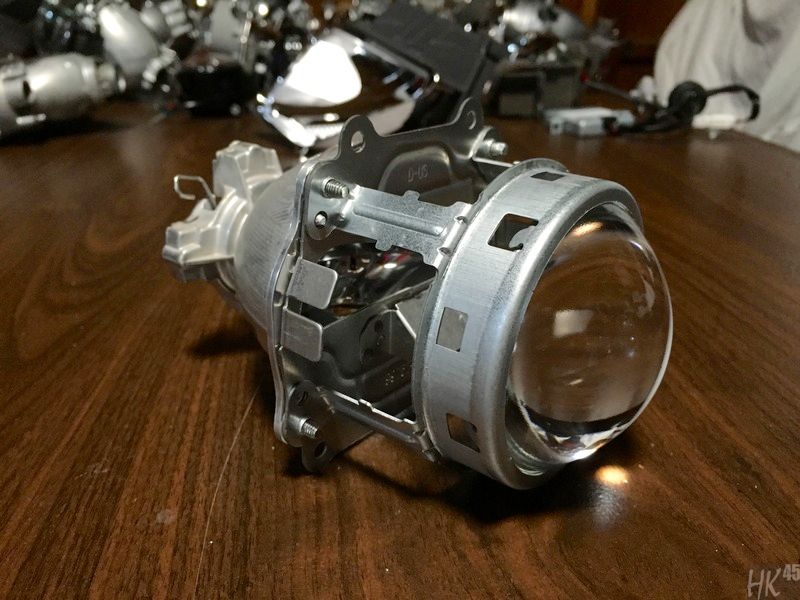

    RX350 LOW BEAM US SLOPE

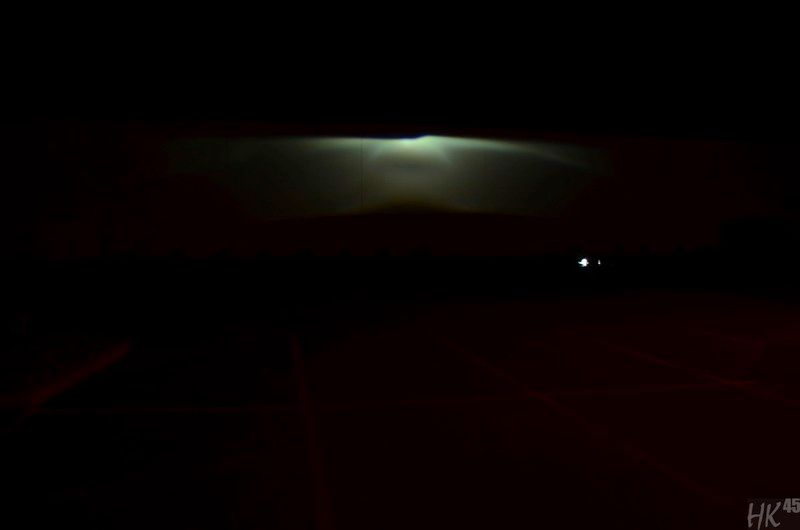

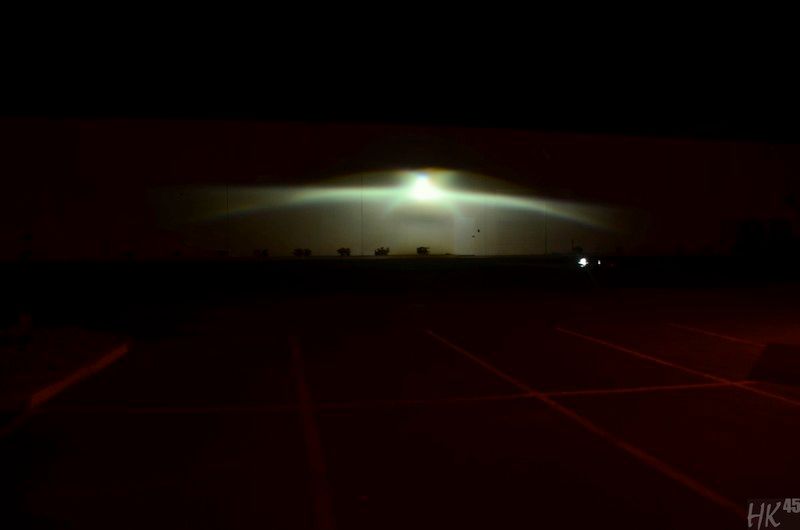

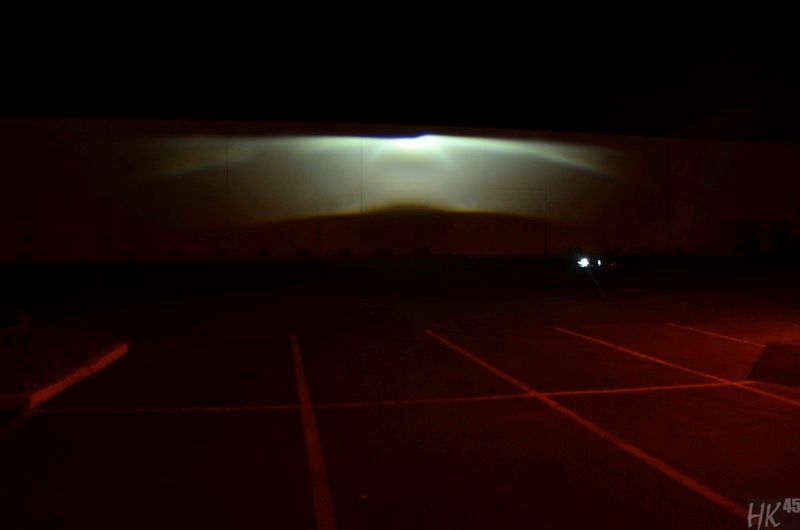

    RX350 BI-XENON EU SLOPE

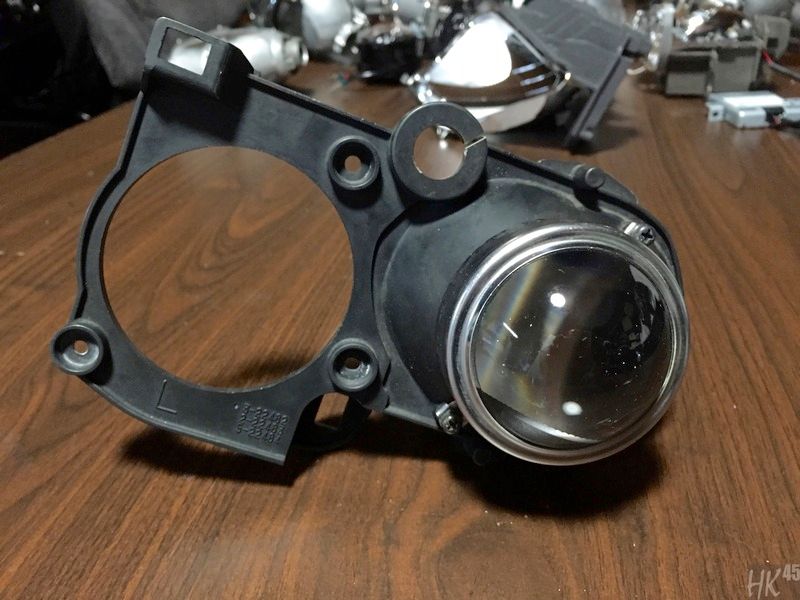

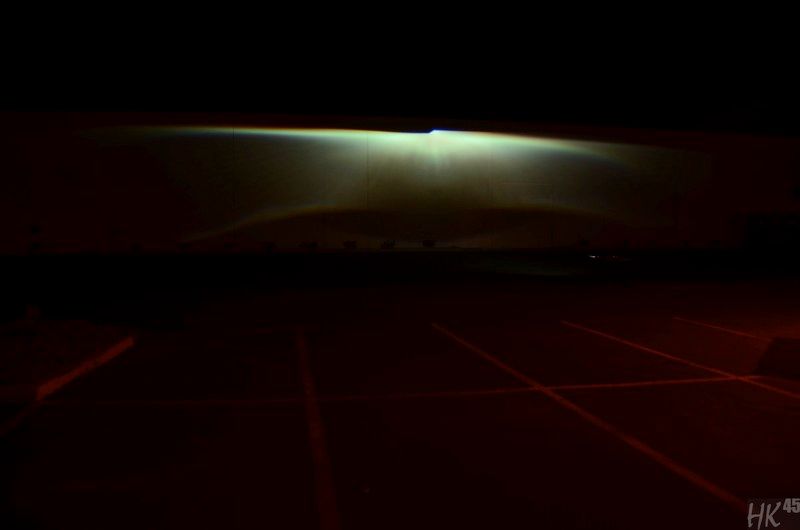

    S2000 (MODIFIED AND TUNED BY IMAGIOX1)

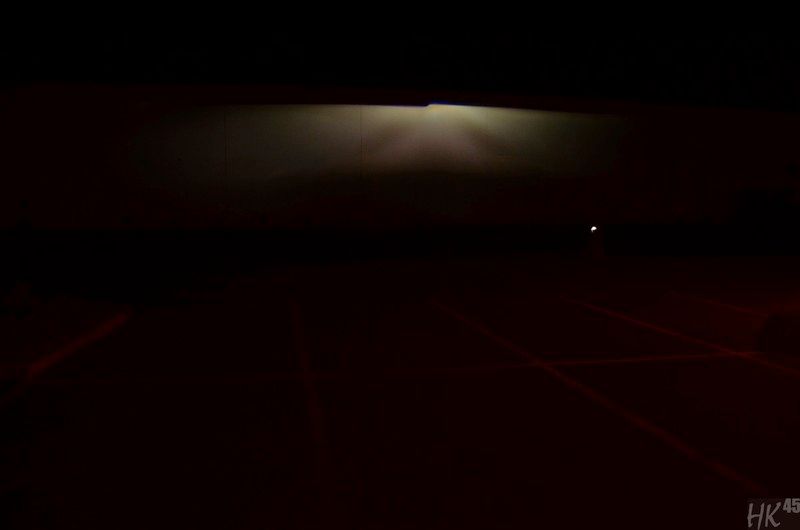

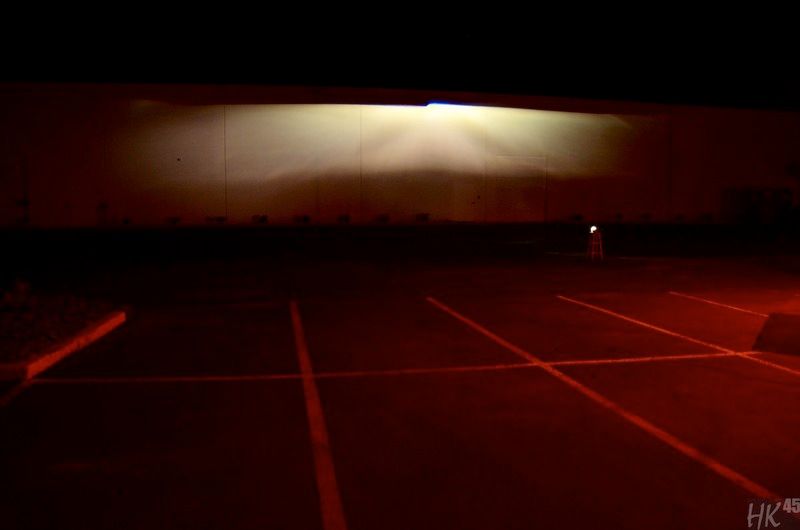

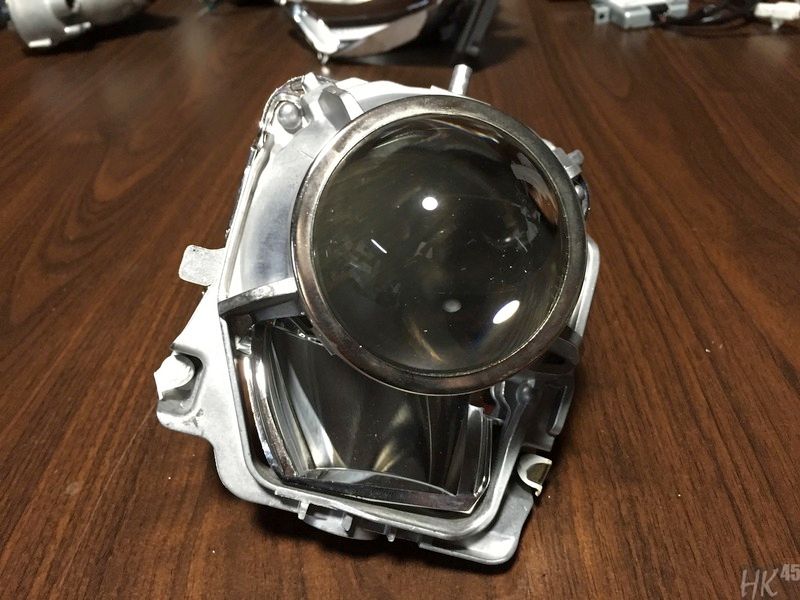

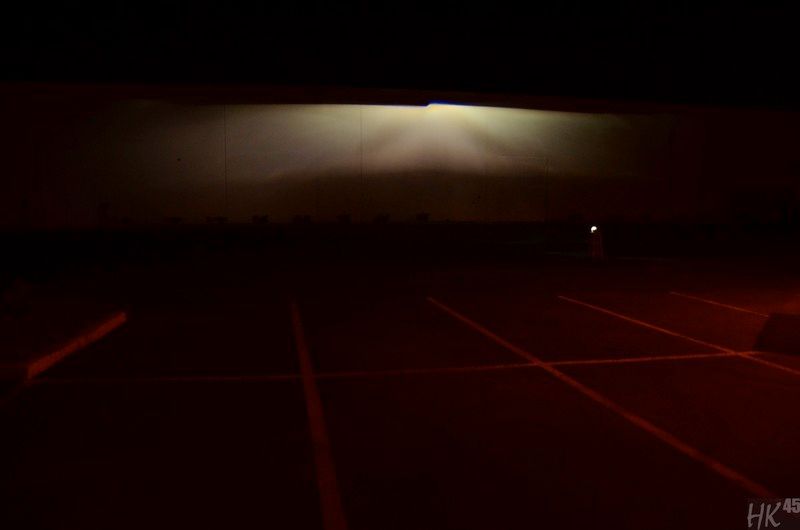

    TOYOTA CROWN LEFT (CLEAR LENS AND TUNED BY NUVOLARI

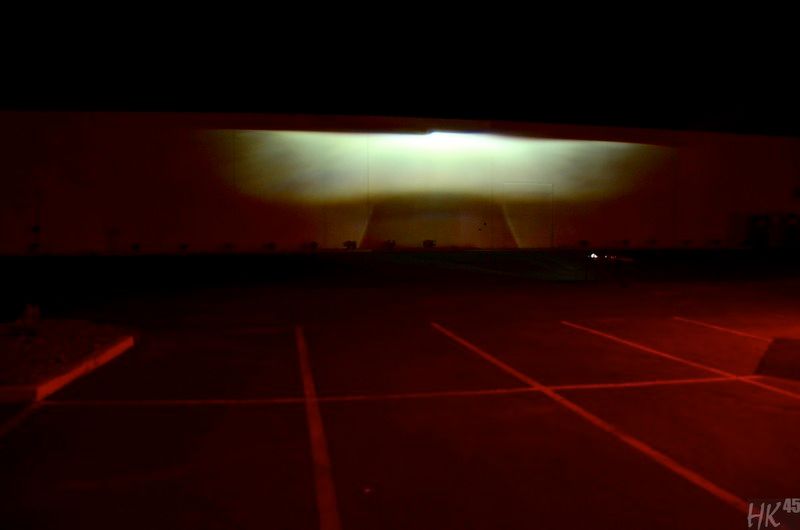

    TSX



    Last edited by HK45; December 29th, 2018, 06:23 PM.
    *CLICK BELOW ON WHAT YOU WANT TO SEE*

    2014 Nissan Sentra Quads w/ XB Fogs

    DSC_9349 by Sam Colt, on Flickr

  • #2
    SO WHAT ABOUT DISTANCE?








    Wall shots at 45 feet are great for showing how the beam looks, width, cutoff, and hotspot location. But what about how far the light reaches? The only way I figured to try and show this is by taking the projectors back to 150 feet and seeing how intense the light distribution was at a lower exposure. I know these aren't definitive answers to the whole story of distance, but they tell a little more to the story. These are the results.



    3G TL (MODIFIED AND TUNED BY IMAGIOX1)


    4G TL REPLICA


    COROLLA LED


    Chinese H4 MINI PROJECTOR


    E46 Replica


    E55

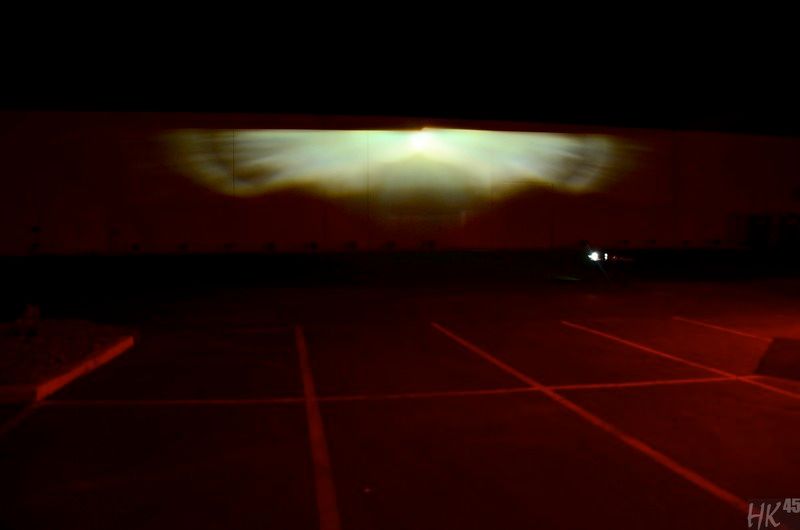

    FX35


    G37 COUPE


    G37 SEDAN


    GENERIC MH1


    KOITO BI-LED

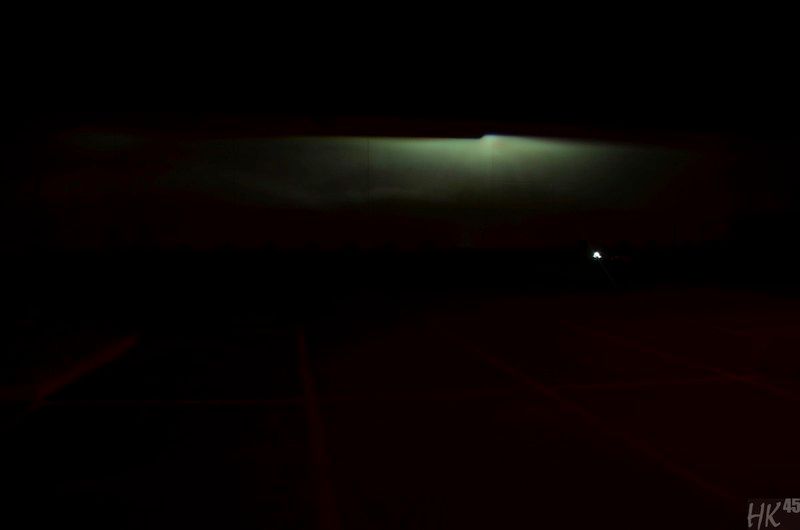

    LS430 LEFT


    LS460 RIGHT


    M45 LEFT


    MAXIMA/RX330 NON AFS


    MORIMOTO EVOX-R


    MORIMOTO FX-R 3.0 3"


    MORIMOTO MATCHBOX


    MORIMOTO MD2S 3.0


    MORIMOTO MH1 7.0


    MURANO H11 3" HALOGEN


    MURANO H11 3" PnP HID


    MURANO HID(STEP)


    MURANO LED


    Q45


    RX330 AFS


    RX350 LOW BEAM US SLOPE


    RX350 BI-XENON EU SLOPE


    S2000 (MODIFIED AND TUNED BY IMAGIOX1)


    TOYOTA CROWN LEFT (CLEAR LENS AND TUNED BY NUVOLARI


    TSX
    Last edited by HK45; February 16th, 2016, 03:43 AM.
    *CLICK BELOW ON WHAT YOU WANT TO SEE*

    2014 Nissan Sentra Quads w/ XB Fogs

    DSC_9349 by Sam Colt, on Flickr

    Comment


    • #3
      So we've all seen how the beams look and what patterns each of them have. But let's see how they stack up against one another at the same time. For the projector beam thread, all shots were taken at a lower exposure so the beam patterns were not washed out. For these head to head shots, I turned it up a little so all the light the projector has to give is visible.

      Ballasts used are 2 same gen Morimoto XB35s. Bulbs used were a brand new Morimoto XB5500K and a broken in OSRAM CBI. The XB bulbs are well known for starting out with a green tinge until they are broken in and shift to their proper temperature. YOU WILL SEE THE DIFFERENCE BETWEEN THE TWO BULBS.

      As with the beam pattern thread, I will update the thread when new pics are posted. Doing the editing a different way this time so each picture takes a little longer to process. For now I'll leave ya'll with the LED projectors.

      Enjoy















































































































      Last edited by HK45; September 16th, 2016, 11:29 AM.
      *CLICK BELOW ON WHAT YOU WANT TO SEE*

      2014 Nissan Sentra Quads w/ XB Fogs

      DSC_9349 by Sam Colt, on Flickr

      Comment
